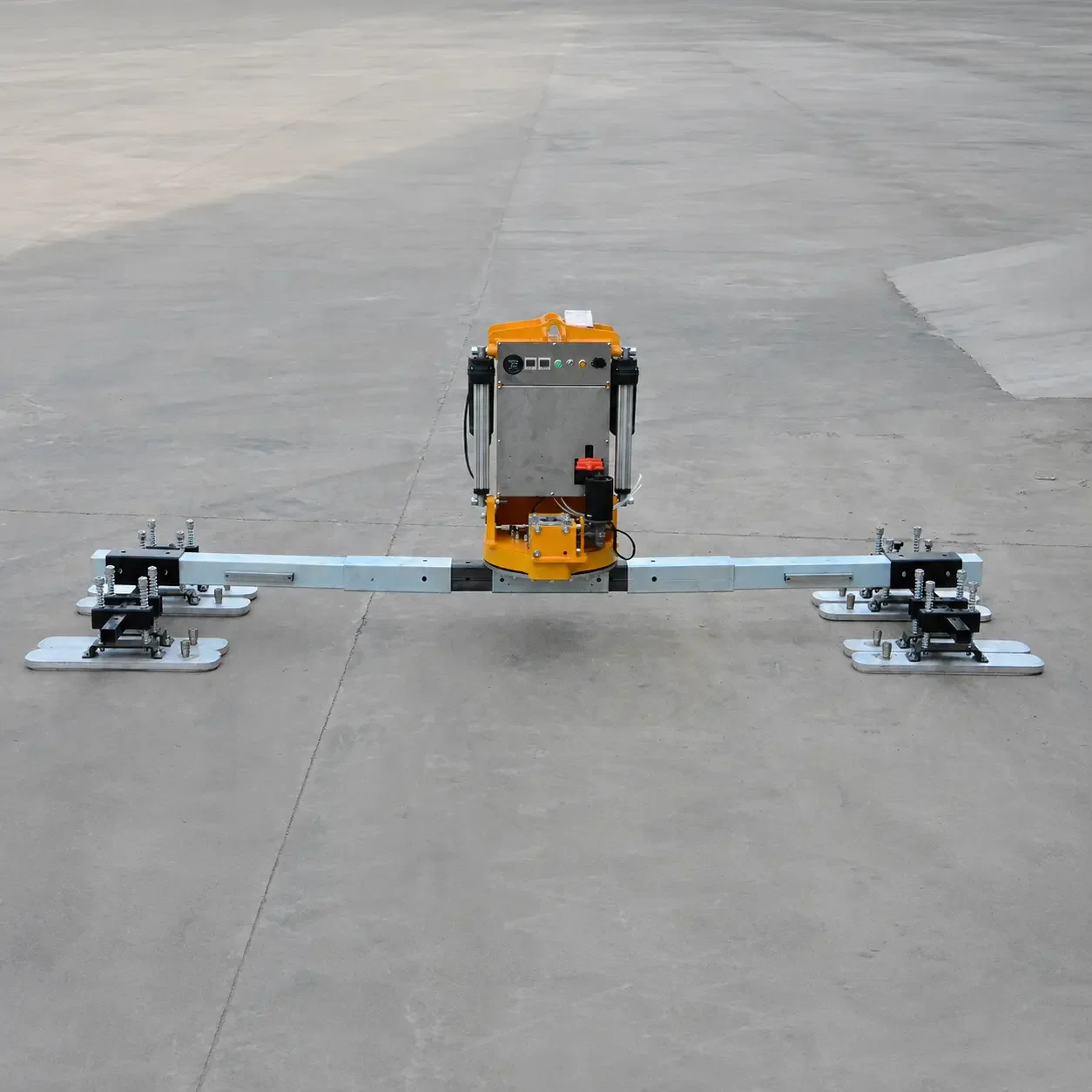

Panel Vacuum Lifter BAUTRAX SRP300

BAUTRAX SRP300 is a vacuum lifter for wall and roof sandwich panels, with 300 kg lifting capacity and support for panel lengths up to 14000 mm. The 4450 mm lifter body and four extension beams allow the configuration to be adapted along long compatible panels.

The panel can be tilted through 90° from horizontal to vertical and locked in position. The system uses eight vacuum pads measuring 110 × 530 mm, each rated for 75 kg, while wireless remote control is available as an option.

• Lifting capacity: 300 kg

• Maximum panel length: 14000 mm

• Lifter length: 4450 mm

• Vacuum pads: 8 pcs

• Extension beams: 4 pcs

• Safe vacuum range: -72.0 to -60.0 kPa

• Maximum load on traverse: 500 kg

Application: Suitable for lifting and installing compatible wall and roof sandwich panels. A minimum safe zone of 2 m and a crane working zone of 10 m are specified for the operating area.

The optional wireless remote control is not part of the stated standard control configuration.
