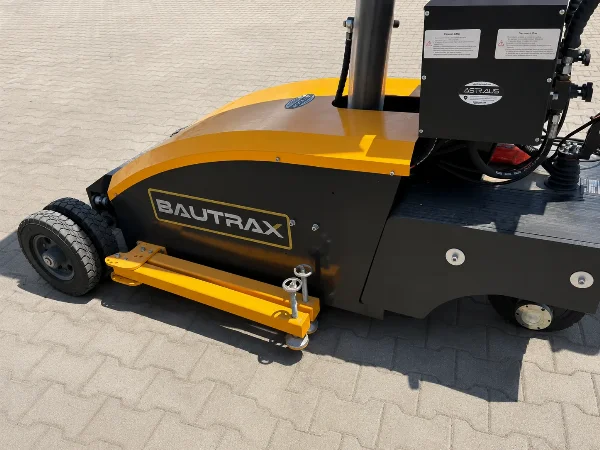

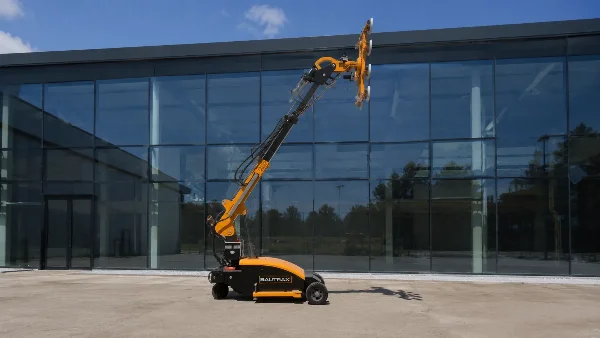

Glass Installation Robot BAUTRAX VROB800

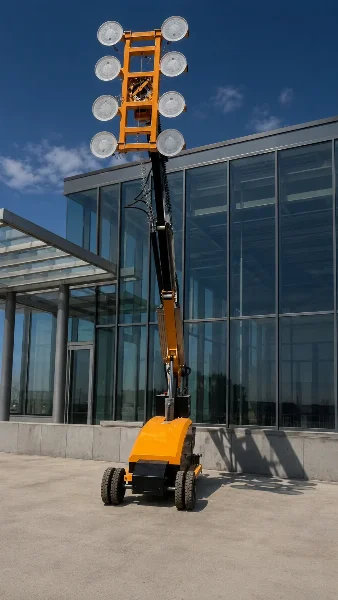

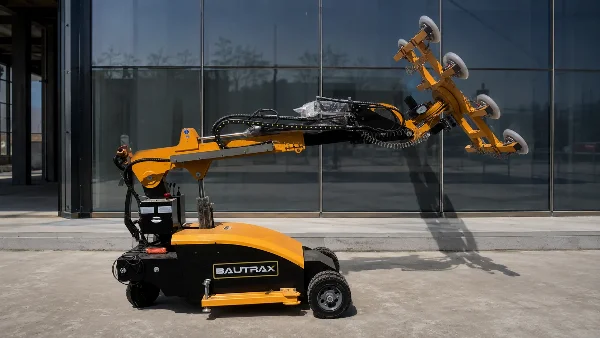

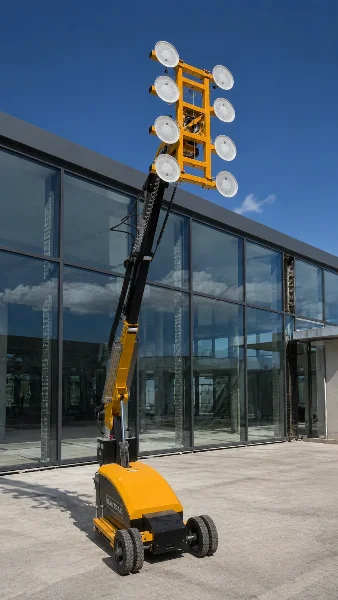

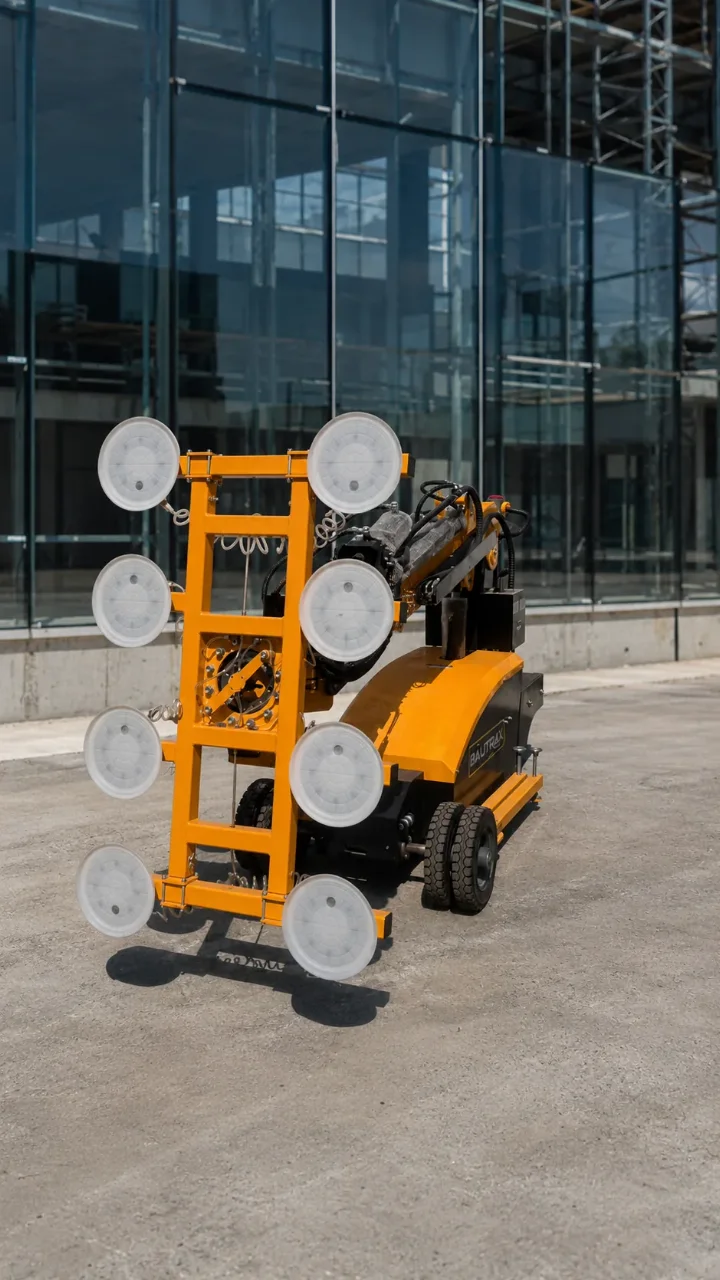

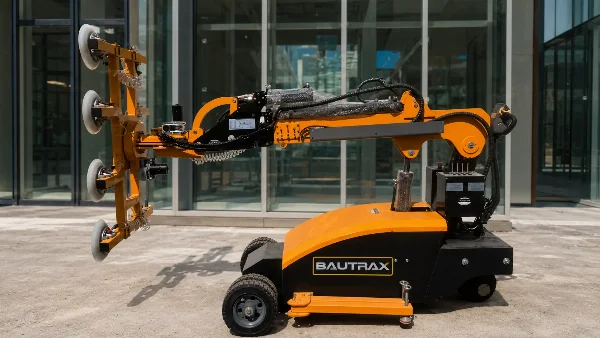

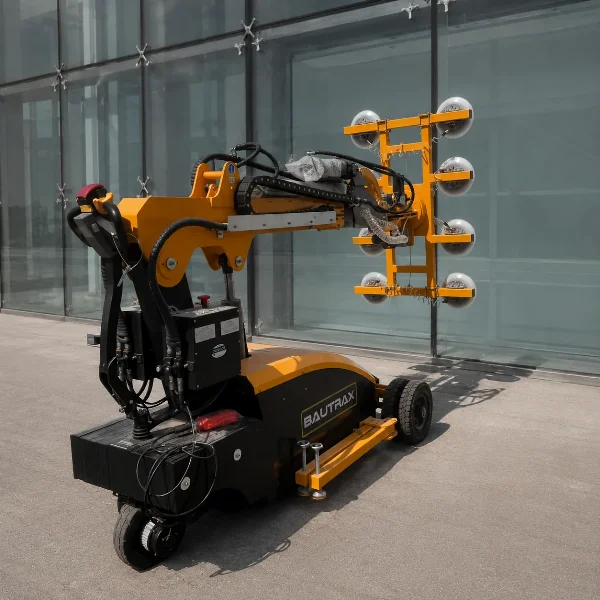

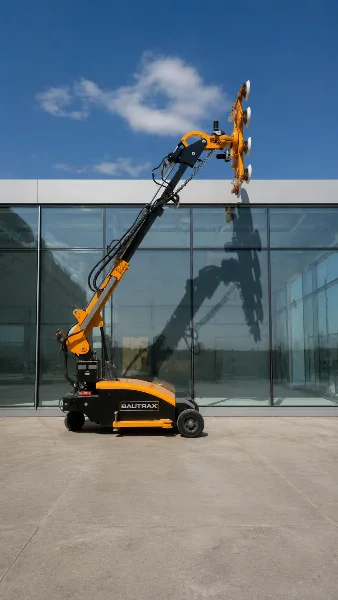

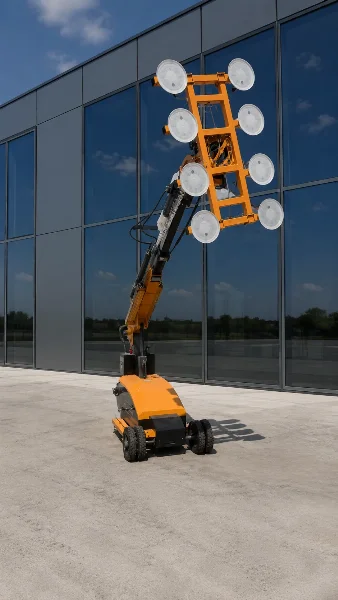

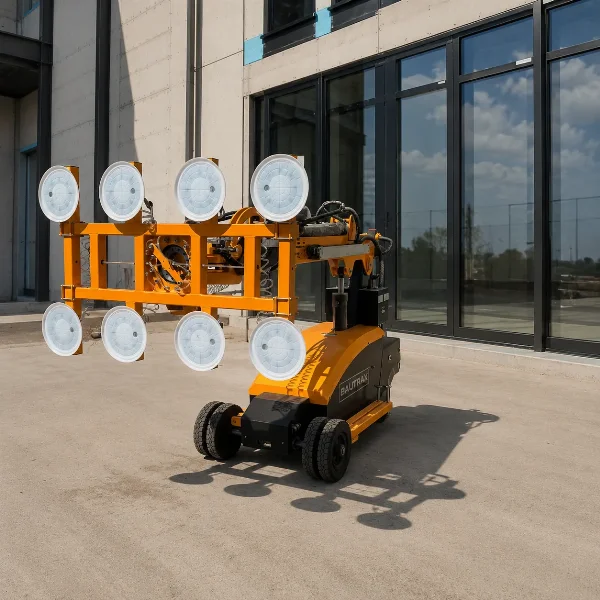

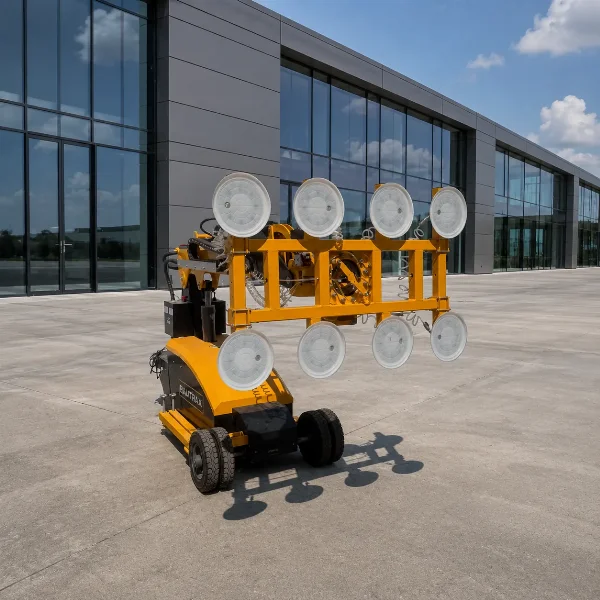

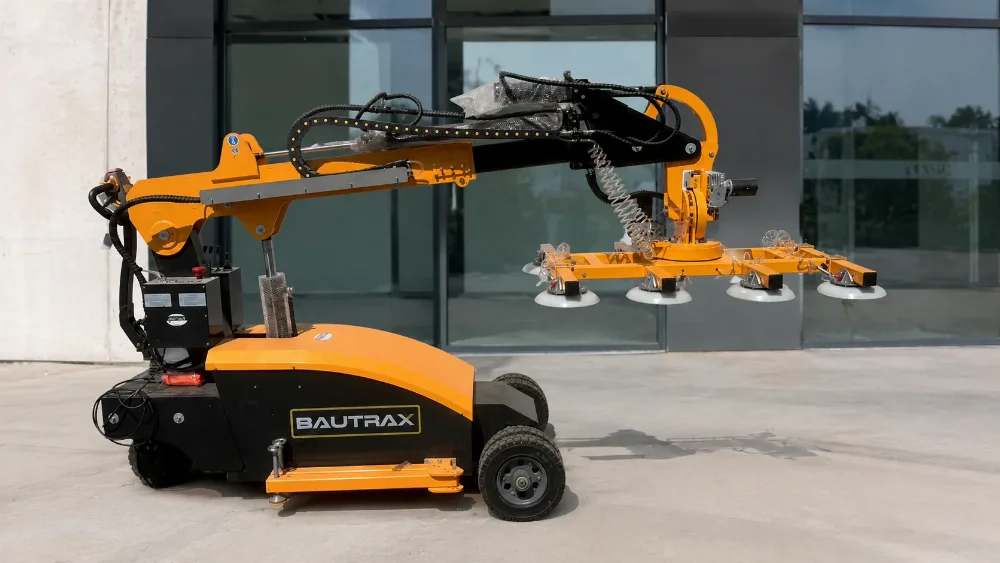

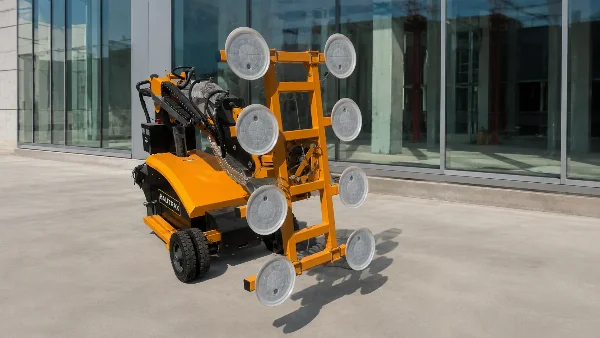

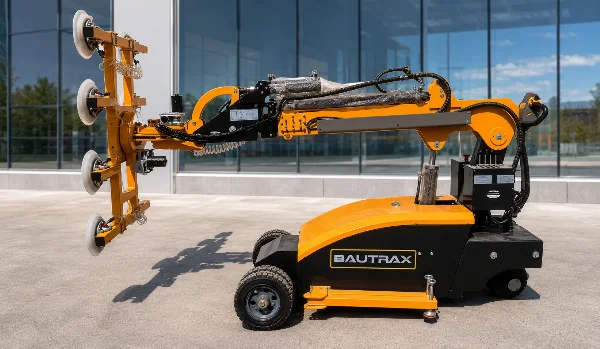

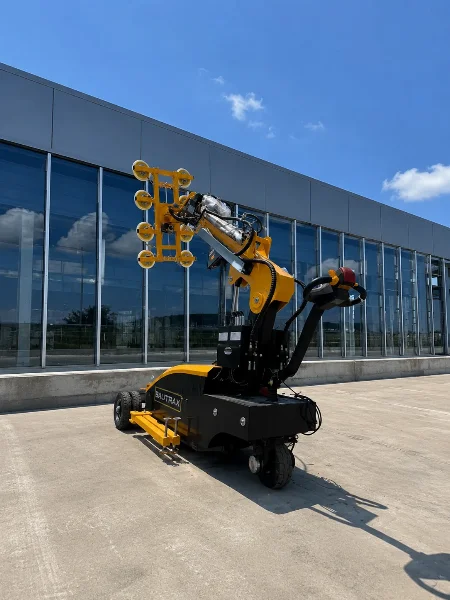

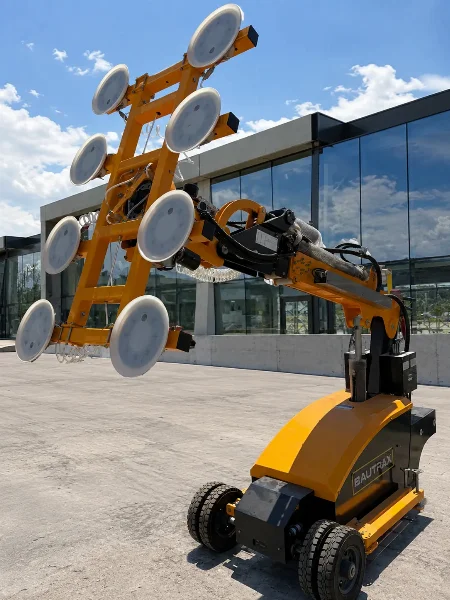

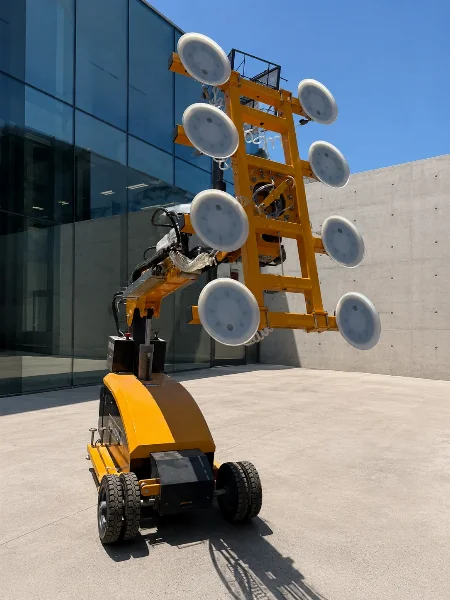

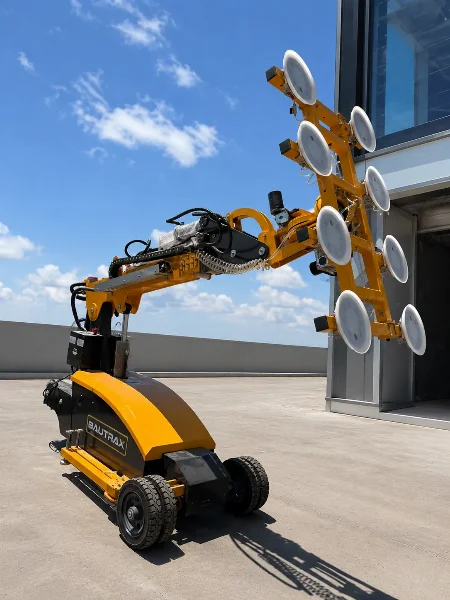

BAUTRAX VROB800 is a battery-powered glass installation robot with 800 kg lifting capacity in the retracted position and a lifting height of 5000 mm. Eight Ø300 mm vacuum pads provide the gripping system for heavy glass and compatible sheet materials.

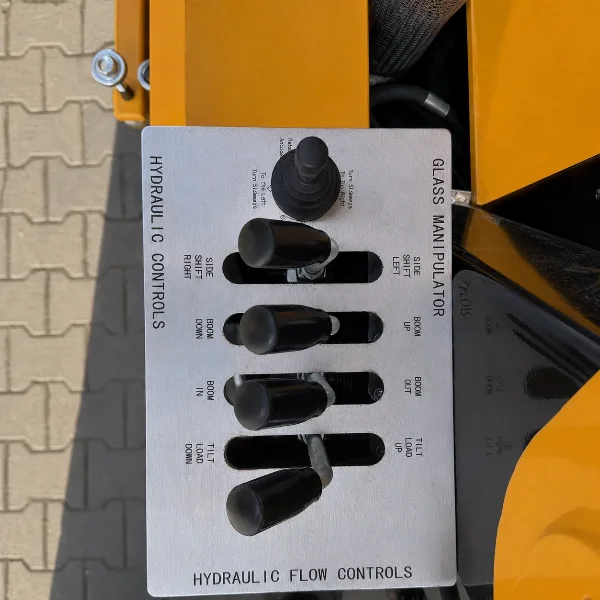

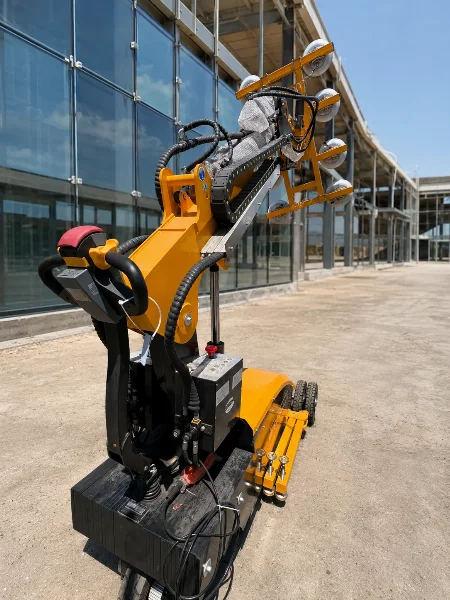

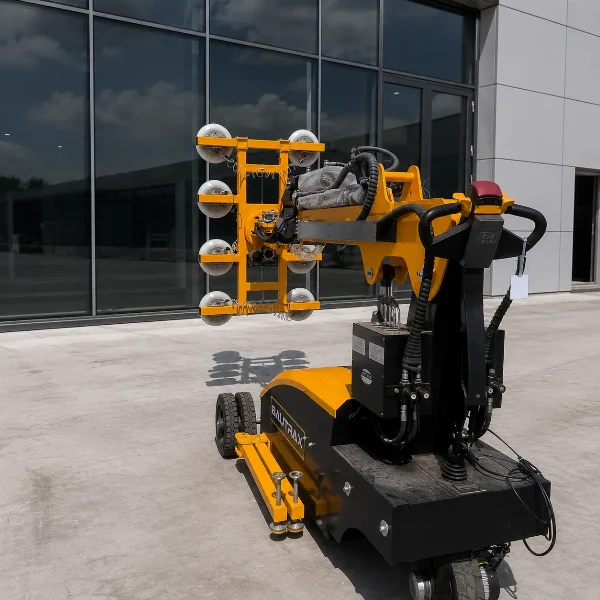

The machine uses a 24V / 1500W drive motor, a 24V / 2200W / 12L lift motor and two 12V / 120Ah batteries with a Smart Charger. Automatic functions include telescopic boom movement, arm lifting and lowering, 180° vertical movement and 100 mm lateral side shift.

• Lifting capacity: 800 kg in retracted position

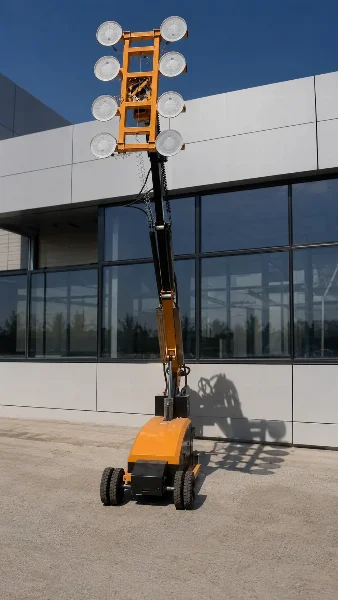

• Lifting height: 5000 mm

• Vacuum pads: 8 × Ø300 mm

• Automatic side shift: 100 mm

• Manual tilt: 90°

• Manual rotation: 360°

• Net / gross weight: 1600 / 1650 kg

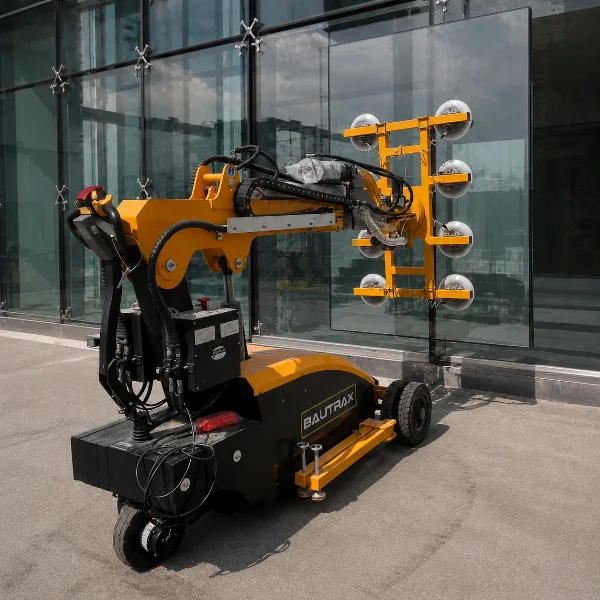

Application: Suitable for installing glass, marble, wooden panels and other compatible sheet materials where higher lifting capacity and 5000 mm reach are required. Automatic boom functions support alignment, while tilt and rotation are controlled manually.

The packing size is 3000 × 1250 × 2300 mm.
