Description

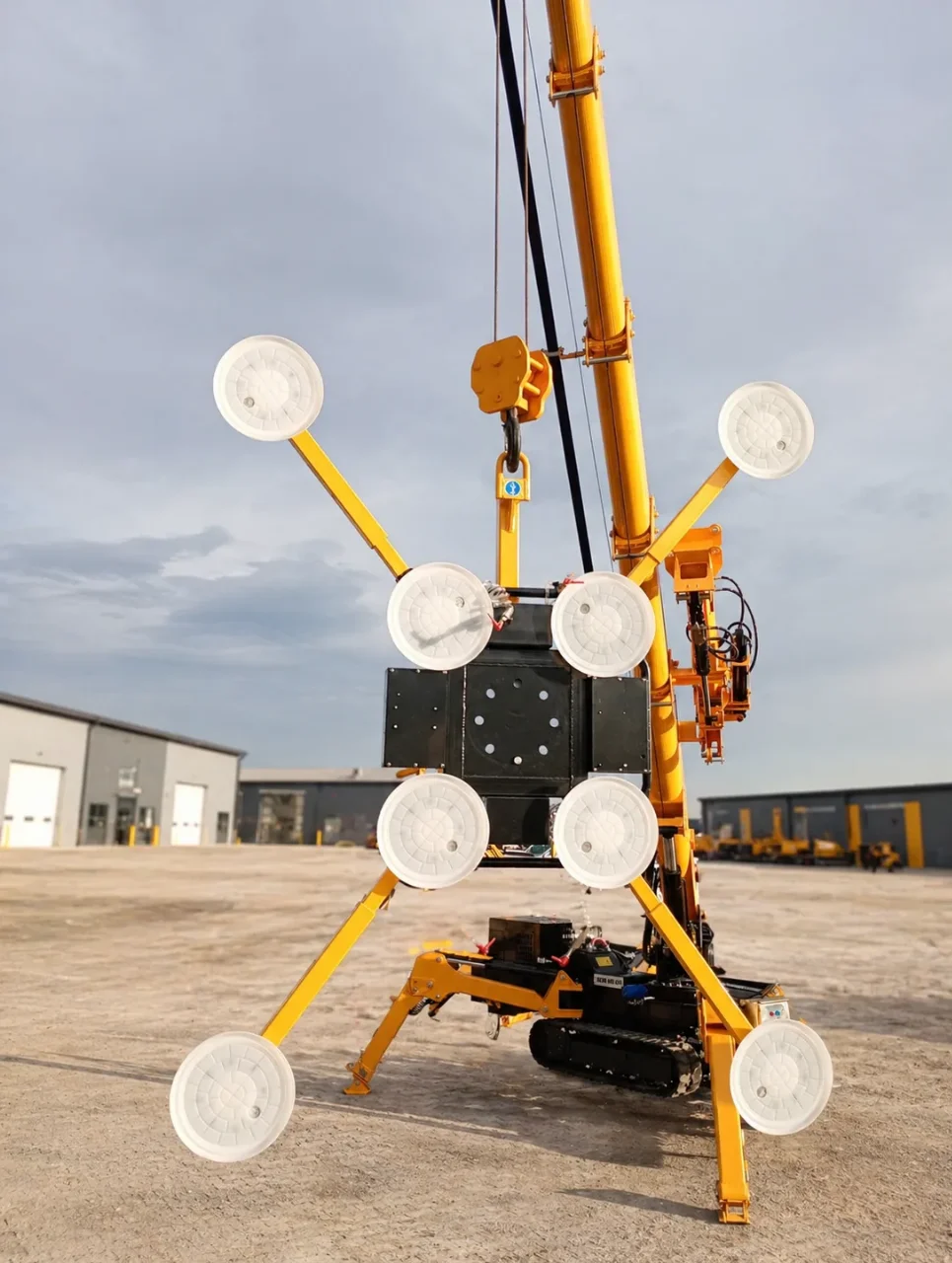

BAUTRAX XGL800 is a vacuum glass lifter with 800 kg lifting capacity and eight vacuum pads. The 1980 × 1620 mm vacuum frame is intended for handling glass, facade panels and compatible flat sheet materials during lifting and installation.
The vacuum system is operated by remote control. Load positioning is mechanical, with 90° tilt for changing between horizontal and vertical orientation and 360° rotation for aligning the material during installation.
Lifting capacity: 800 kg
Vacuum pads: 8 pcs
Vacuum pad size: 300 mm
Load per pad: 100 kg
Battery: 24V / 20Ah
Charger: 24V / 6A
Vacuum frame size: 1980 × 1620 mm
Application: Suitable for lifting and positioning glass, facade panels, windows and compatible flat materials where vacuum gripping and controlled manual orientation are required.
The packing size is 1100 × 940 × 500 mm.
Technical specifications
| Parameter | Value |
|---|---|
| Lift Capacity | 800 kg |
| Vacuum Pads Qty | 8 pcs |
| Vacuum Pad Size | 300 mm |
| Load per Pad | 100 kg |
| Rotation / Tilt | 90° mechanical tilt, 360° mechanical rotation |
| Battery / Charger | 24V / 20Ah, charger 24V / 6A |
| Control Type | Remote control for the vacuum system |
| Vacuum Frame Size | 1980 × 1620 mm |
| Packing Size | 1100 × 940 × 500 mm |
| Parameter | Value |
|---|---|
| Lift Capacity | 800 kg |
| Vacuum Pads Qty | 8 pcs |
| Vacuum Pad Size | 300 mm |
| Load per Pad | 100 kg |
| Rotation / Tilt | 90° mechanical tilt, 360° mechanical rotation |
| Battery / Charger | 24V / 20Ah, charger 24V / 6A |
| Control Type | Remote control for the vacuum system |
| Vacuum Frame Size | 1980 × 1620 mm |
| Packing Size | 1100 × 940 × 500 mm |
