Description

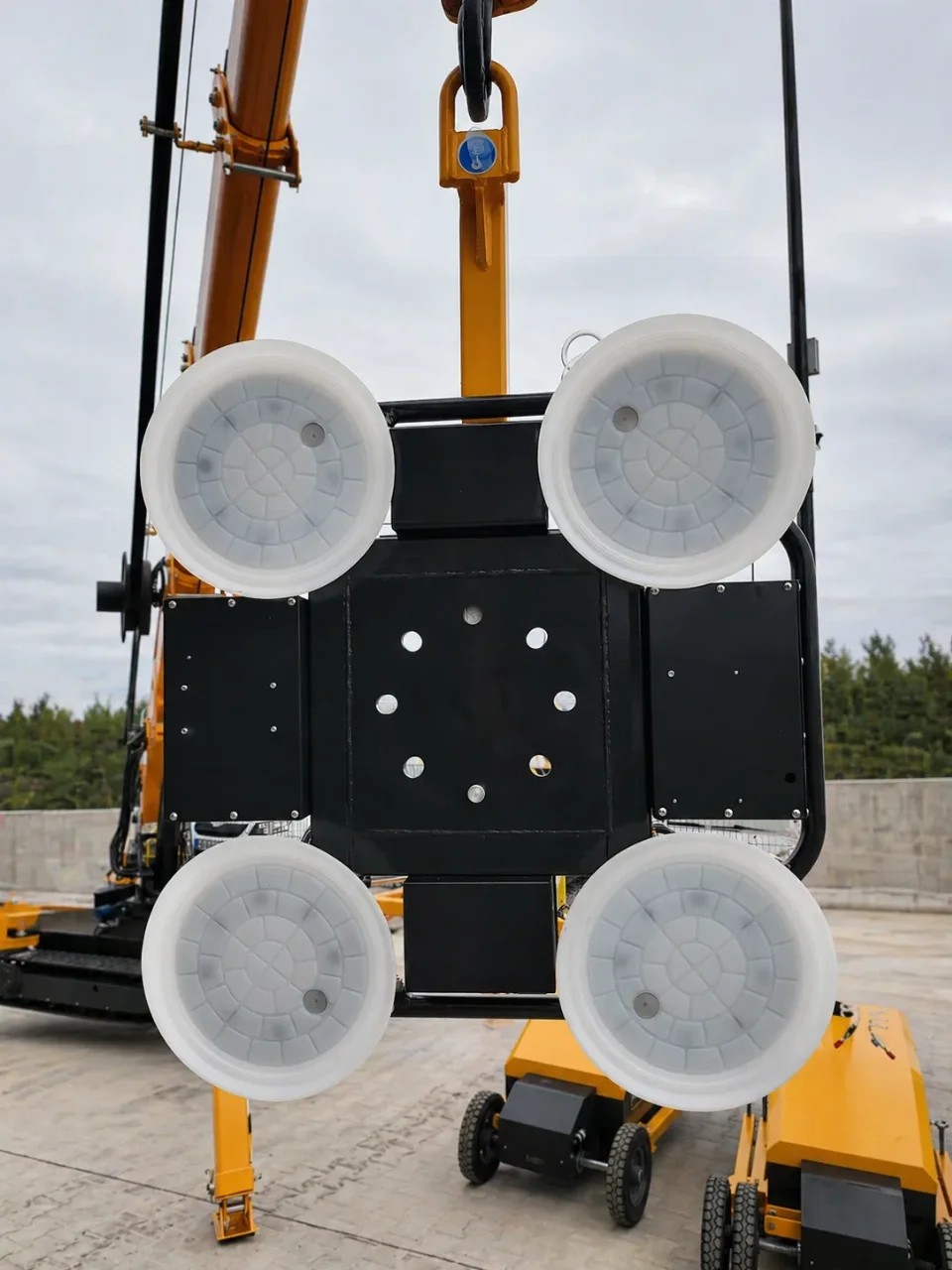

BAUTRAX XGL400 is a vacuum glass lifter with 400 kg lifting capacity and four vacuum pads. Its 840 × 930 mm vacuum frame provides a compact configuration for handling glass, windows and compatible flat sheet materials.
The vacuum system is controlled remotely. The load can be repositioned through 90° mechanical tilt and 360° mechanical rotation during lifting and installation.
Lifting capacity: 400 kg
Vacuum pads: 4 pcs
Vacuum pad size: 300 mm
Load per pad: 100 kg
Battery: 24V / 20Ah
Charger: 24V / 6A
Vacuum frame size: 840 × 930 mm
Application: Suitable for compact glass installation, window fitting and handling compatible panels where a smaller vacuum frame and controlled manual positioning are required.
The packing size is 1100 × 940 × 500 mm.
Technical specifications
| Parameter | Value |
|---|---|
| Lift Capacity | 400 kg |
| Vacuum Pads Qty | 4 pcs |
| Vacuum Pad Size | 300 mm |
| Load per Pad | 100 kg |
| Rotation / Tilt | 90° mechanical tilt, 360° mechanical rotation |
| Battery / Charger | 24V / 20Ah, charger 24V / 6A |
| Control Type | Remote control for the vacuum system |
| Vacuum Frame Size | 840 × 930 mm |
| Packing Size | 1100 × 940 × 500 mm |
| Parameter | Value |
|---|---|
| Lift Capacity | 400 kg |
| Vacuum Pads Qty | 4 pcs |
| Vacuum Pad Size | 300 mm |
| Load per Pad | 100 kg |
| Rotation / Tilt | 90° mechanical tilt, 360° mechanical rotation |
| Battery / Charger | 24V / 20Ah, charger 24V / 6A |
| Control Type | Remote control for the vacuum system |
| Vacuum Frame Size | 840 × 930 mm |
| Packing Size | 1100 × 940 × 500 mm |
