Description

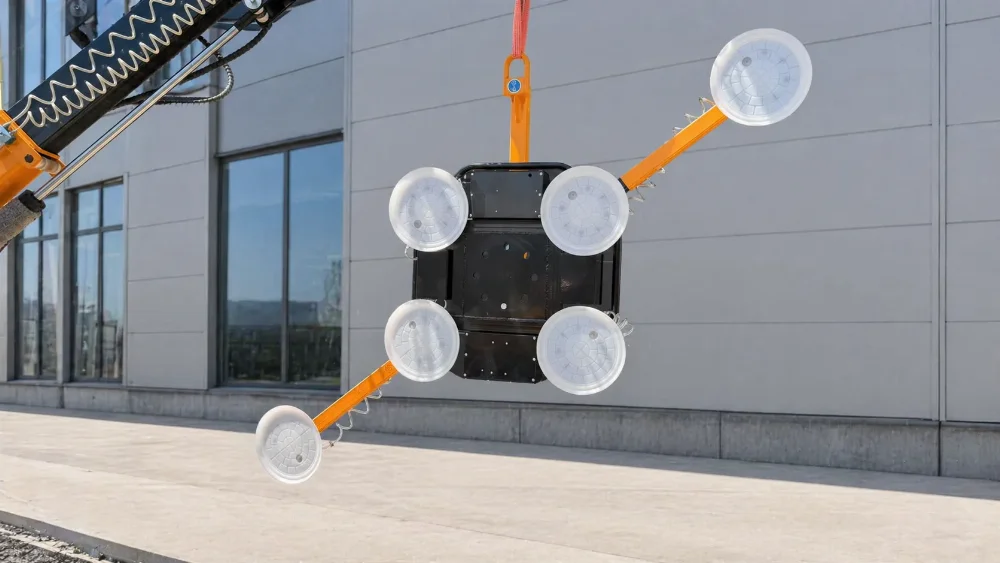

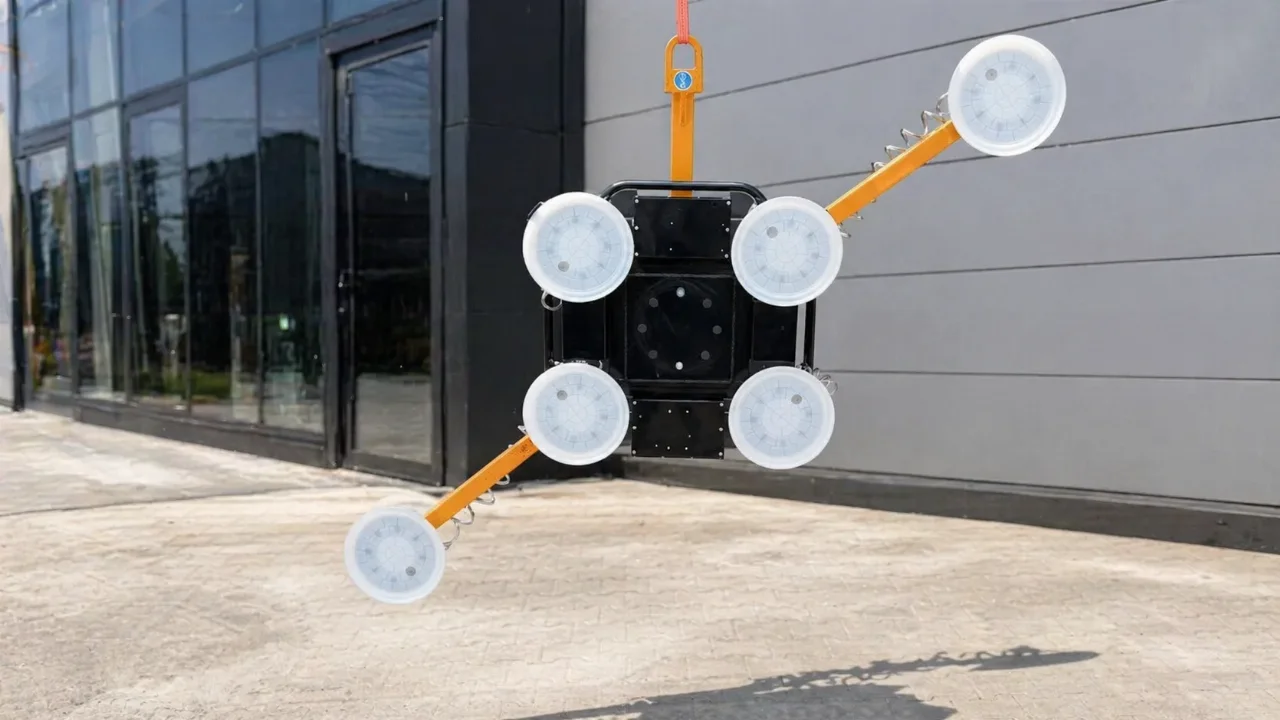

BAUTRAX XGL600 is a vacuum glass lifter with 600 kg lifting capacity and six vacuum pads. The configuration is intended for handling glass, facade panels and other compatible flat sheet materials during lifting and installation.
The vacuum system is operated by remote control. Positioning is mechanical, with 90° mechanical tilt and 360° mechanical rotation, allowing the load to be reoriented during handling.
Lifting capacity: 600 kg
Vacuum pads: 6 pcs
Vacuum pad size: 300 mm
Load per pad: 100 kg
Battery: 24V / 20Ah
Charger: 24V / 6A
Vacuum frame size: 2420 x 1100 mm
Application: Suitable for lifting and positioning glass, facade panels, windows and compatible flat sheet materials where vacuum gripping and manual tilt or rotation are required.
The packing size is 1100 × 940 × 500 mm.
Technical specifications
| Parameter | Value |
|---|---|
| Lift Capacity | 600 kg |
| Vacuum Pads Qty | 6 pcs |
| Vacuum Pad Size | 300 mm |
| Load per Pad | 100 kg |
| Rotation / Tilt | 90° mechanical tilt, 360° mechanical rotation |
| Battery / Charger | 24V / 20Ah, charger 24V / 6A |
| Control Type | Remote control for the vacuum system |
| Vacuum Frame Size | 2420 x 1100 mm |
| Packing Size | 1100 × 940 × 500 mm |
| Parameter | Value |
|---|---|
| Lift Capacity | 600 kg |
| Vacuum Pads Qty | 6 pcs |
| Vacuum Pad Size | 300 mm |
| Load per Pad | 100 kg |
| Rotation / Tilt | 90° mechanical tilt, 360° mechanical rotation |
| Battery / Charger | 24V / 20Ah, charger 24V / 6A |
| Control Type | Remote control for the vacuum system |
| Vacuum Frame Size | 2420 x 1100 mm |
| Packing Size | 1100 × 940 × 500 mm |
