Description

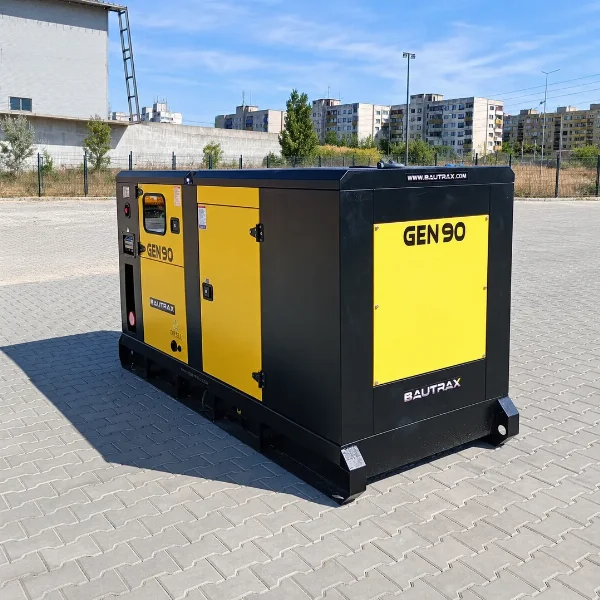

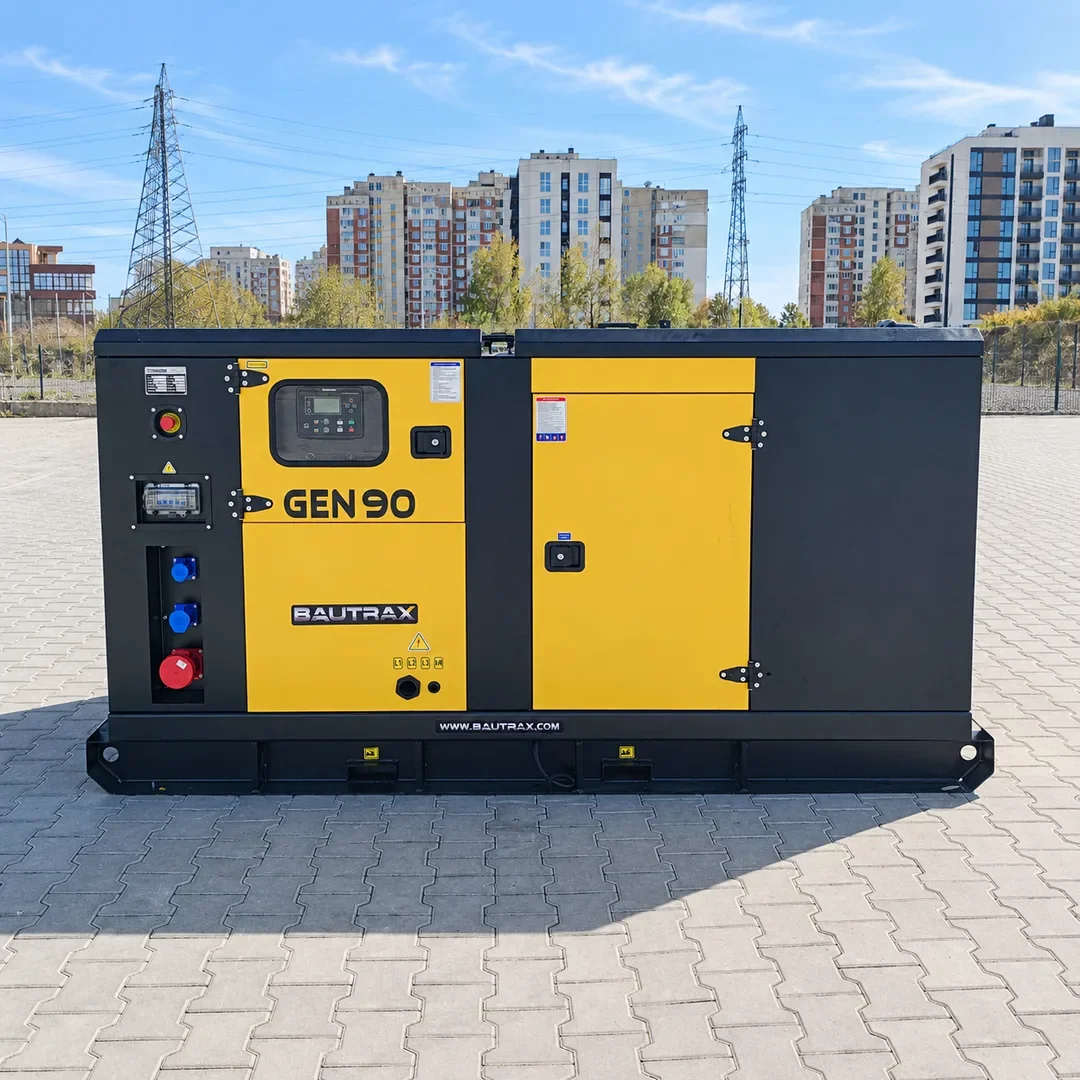

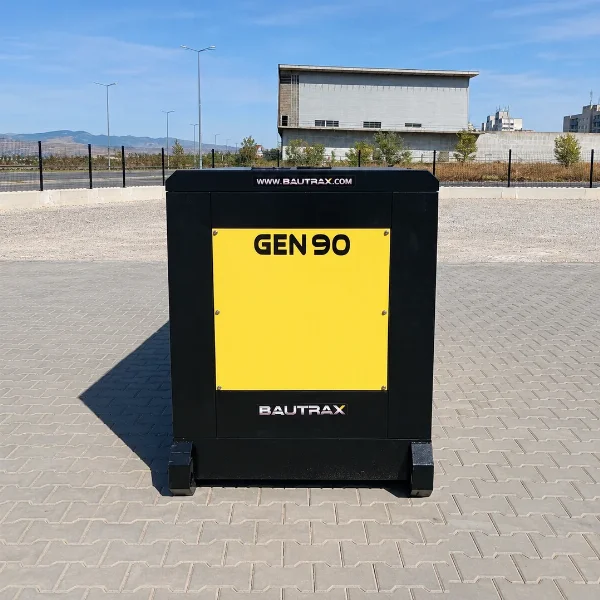

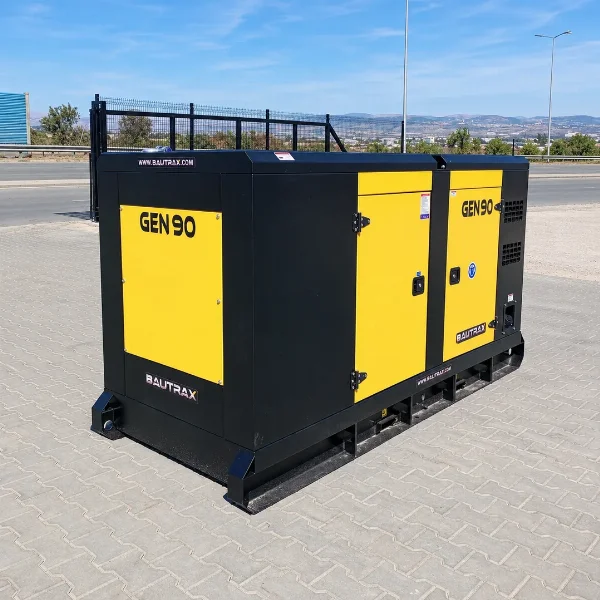

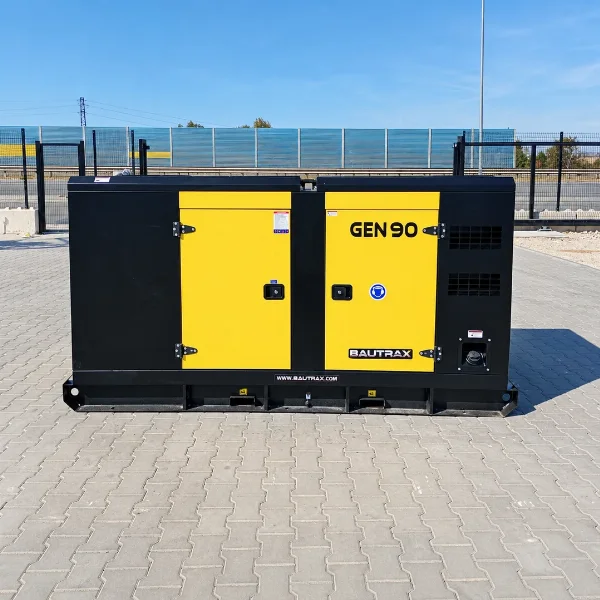

BAUTRAX GEN90 is a three-phase Super Silent diesel generator designed for professional backup power and temporary site power. With 65 kW / 81.25 kVA prime power, the model is suitable for construction sites, workshops, warehouses, service facilities, farms, commercial properties and industrial applications.
The generator is equipped with a durable YTO LR4A3L-D diesel engine, Stamford BW-224G alternator and SmartGen HGM6120NC controller. The silent enclosure and Super Silent muffler help reduce operating noise, while the practical canopy layout provides access for operation and maintenance.
BAUTRAX GEN90 includes an ATS panel, water jacket heater and standard EU socket outputs: 1×16A + 1×32A + 1×63A. This configuration makes the generator suitable for backup power systems and for supplying equipment, lighting, tools and other electrical loads on site.
The model has a 157 L fuel tank and dimensions of 2790 × 1100 × 1450 mm. Warranty: 2 years / 2000 motor hours.
Technical specifications
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | LR4A3L-D |
| Overall Dimensions (L×W×H) | 2790 × 1100 × 1450 mm |
| Fuel Capacity | 157 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 65 kW / 81.25 kVA |
| Standby Power | 71.5 kW / 89.38 kVA |
| Alternator | Stamford BW-224G |
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | LR4A3L-D |
| Overall Dimensions (L×W×H) | 2790 × 1100 × 1450 mm |
| Fuel Capacity | 157 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 65 kW / 81.25 kVA |
| Standby Power | 71.5 kW / 89.38 kVA |
| Alternator | Stamford BW-224G |
| Parameter | Value |
|---|---|
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
Gallery
Frequently asked questions
Prime power is the generator’s main working rating for regular use under variable load. Standby power is the emergency rating intended for backup operation when the main power supply is unavailable.
Yes. Each listed BAUTRAX generator includes an ATS panel, making the models suitable for backup power applications where automatic transfer switching is required.
Each model includes standard EU socket outputs: 1×16A + 1×32A + 1×63A.
The listed BAUTRAX Super Silent diesel generators include a warranty of 2 years or 2000 motor hours, whichever comes first.
BAUTRAX GEN90 with 65 kW prime power is suitable for construction sites, service bases, warehouses, larger commercial properties, agricultural facilities and small production areas. It can be used to power site lighting, power tools, pumps, compressors, small machines and temporary construction installations. GEN90 is a practical choice when a 30 kW or 50 kW generator is no longer enough for the site’s power requirements.
