Description
BAUTRAX GEN200 is a three-phase Super Silent diesel generator with 150 kW / 187.5 kVA prime power and 165 kW / 206.25 kVA standby power. It is configured for higher-demand backup and temporary site power.
The generator uses a YTO LR6M3L-D diesel engine, Stamford BW-274G alternator and SmartGen HGM6120NC controller. A silent enclosure and Super Silent muffler form the noise-control configuration.
Standard equipment includes an ATS panel, water jacket heater and EU socket outputs of 1×16A + 1×32A + 1×63A. The three-phase system supports compatible equipment and installations within the stated output range.
Application: Suitable for backup and temporary power at larger construction sites, industrial bases, logistics facilities, warehouses, agricultural properties and commercial buildings.
The model has a 335 L fuel tank and dimensions of 3490 × 1220 × 1630 mm. Warranty: 2 years / 2000 motor hours.
Technical specifications
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | LR6M3L-D |
| Overall Dimensions (L×W×H) | 3490 × 1220 × 1630 mm |
| Fuel Capacity | 335 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 150 kW / 187.5 kVA |
| Standby Power | 165 kW / 206.25 kVA |
| Alternator | Stamford BW-274G |
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | LR6M3L-D |
| Overall Dimensions (L×W×H) | 3490 × 1220 × 1630 mm |
| Fuel Capacity | 335 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 150 kW / 187.5 kVA |
| Standby Power | 165 kW / 206.25 kVA |
| Alternator | Stamford BW-274G |
| Parameter | Value |
|---|---|
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |

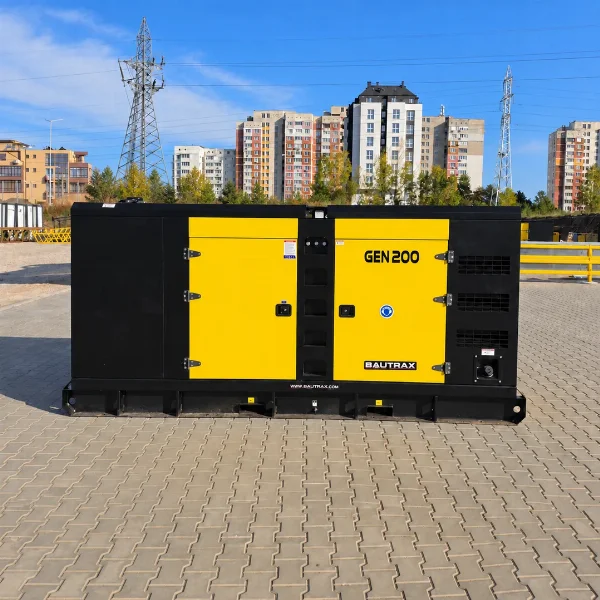

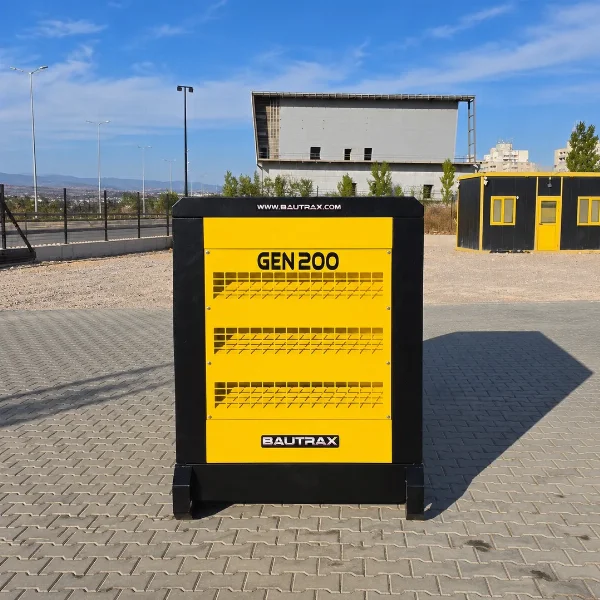

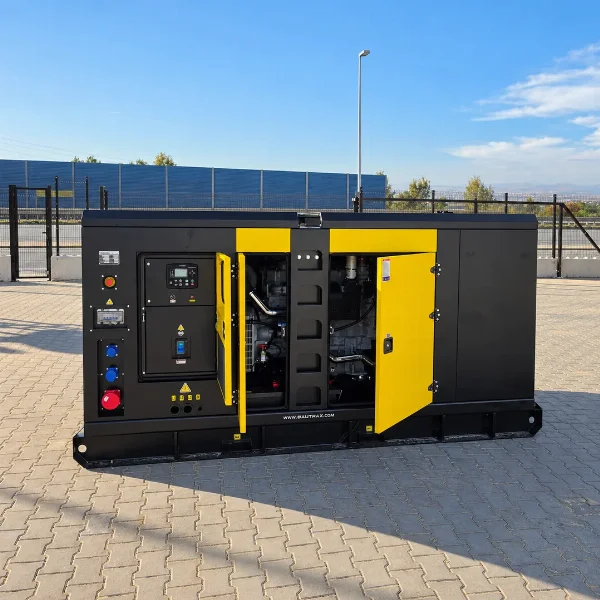

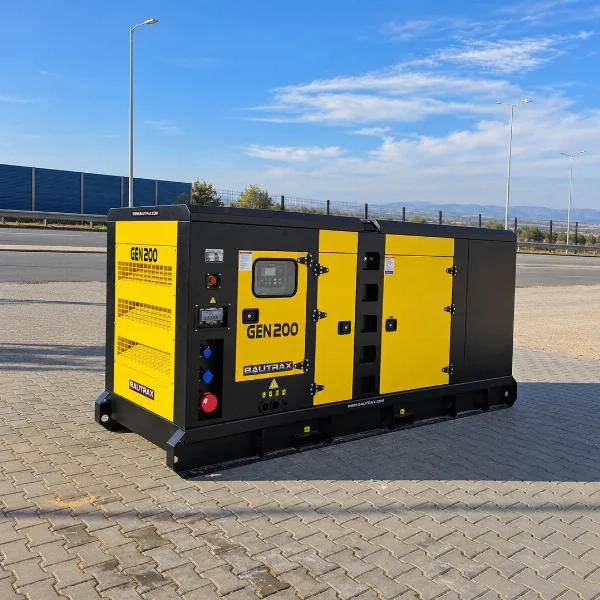

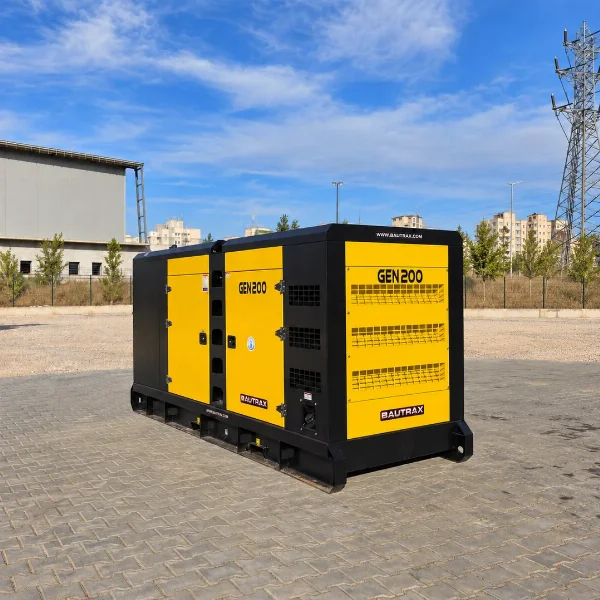

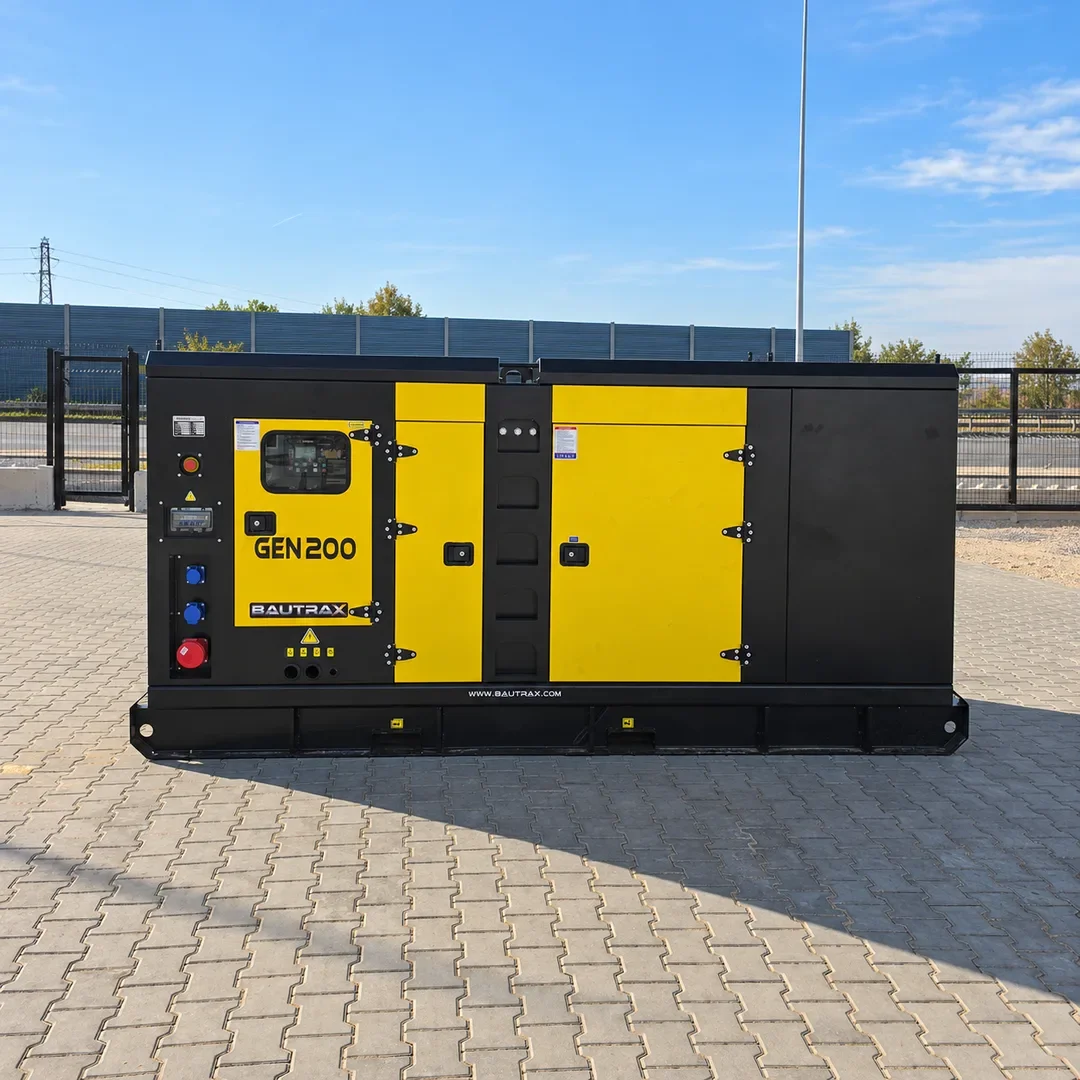

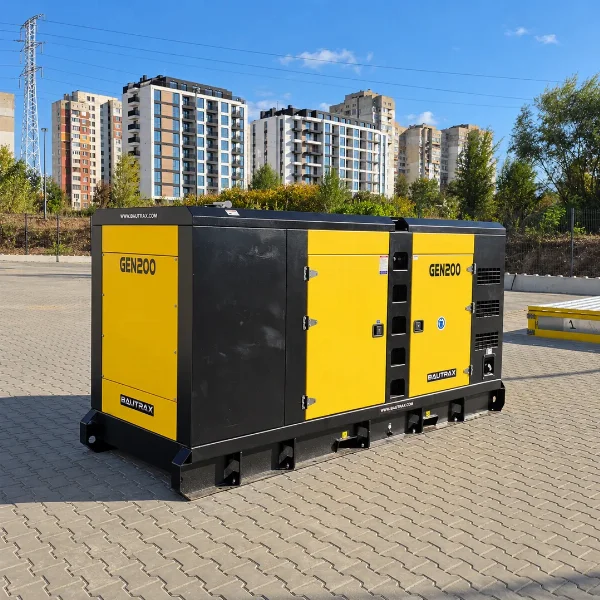

Gallery
Frequently asked questions
Prime power is the generator’s main working rating for regular use under variable load. Standby power is the emergency rating intended for backup operation when the main power supply is unavailable.
Yes. Each listed BAUTRAX generator includes an ATS panel, making the models suitable for backup power applications where automatic transfer switching is required.
Each model includes standard EU socket outputs: 1×16A + 1×32A + 1×63A.
The listed BAUTRAX Super Silent diesel generators include a warranty of 2 years or 2000 motor hours, whichever comes first.
BAUTRAX GEN200 with 150 kW prime power is suitable for large construction sites, industrial bases, production areas, logistics centers, warehouses, agricultural complexes and backup power for higher-demand facilities. The model is suitable when several demanding loads operate at the same time, such as construction machinery, pumps, compressors, lighting, production machines, refrigeration systems or full-site backup power. The exact application depends on total consumption and starting loads.
