Description

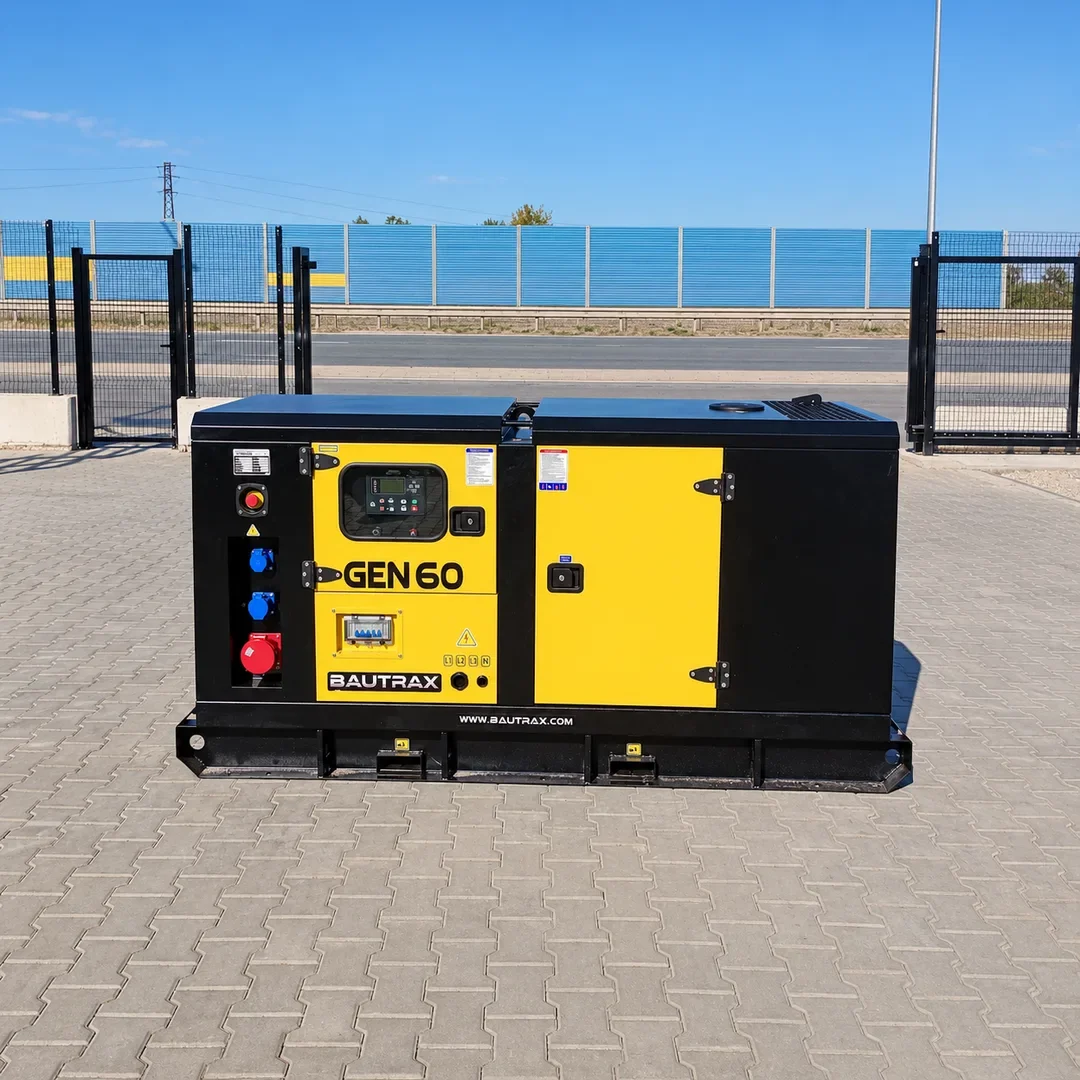

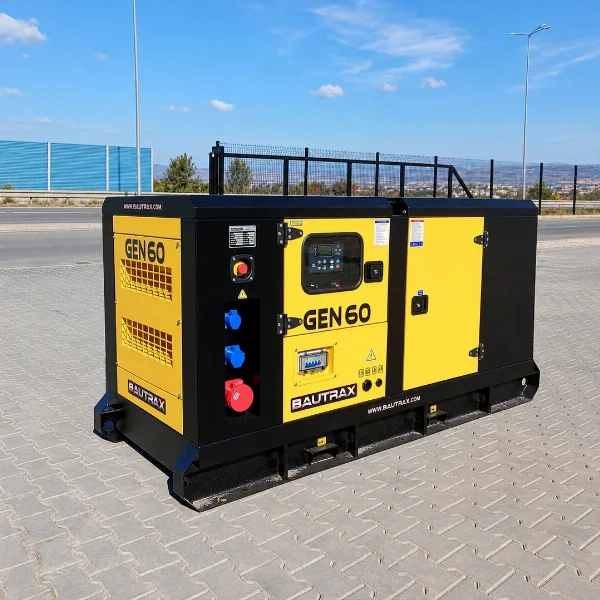

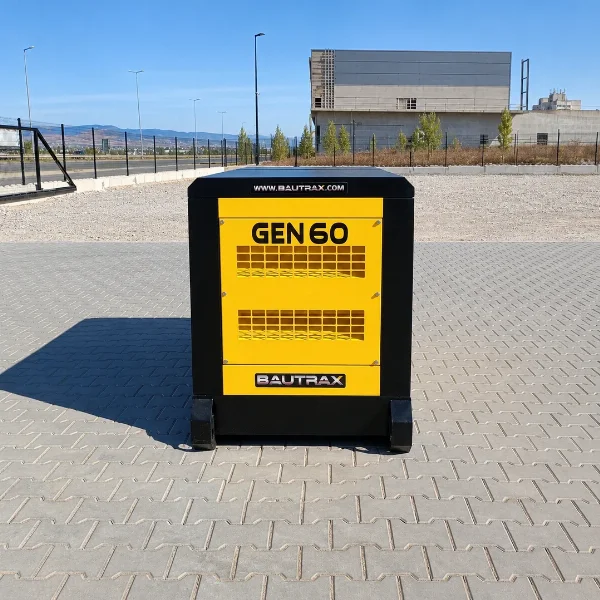

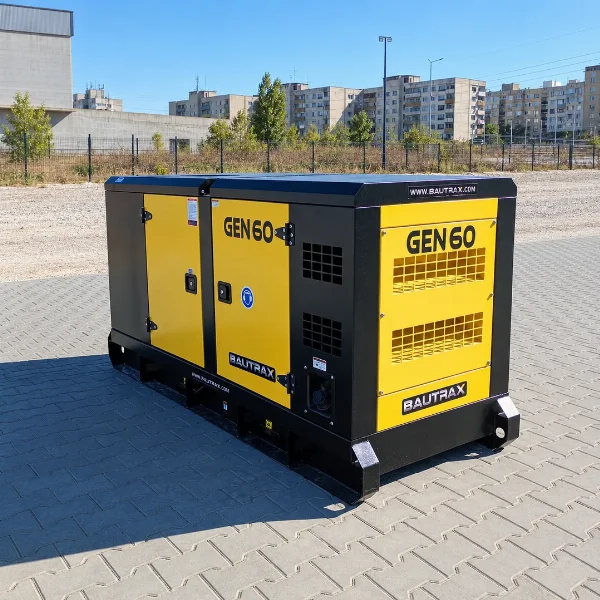

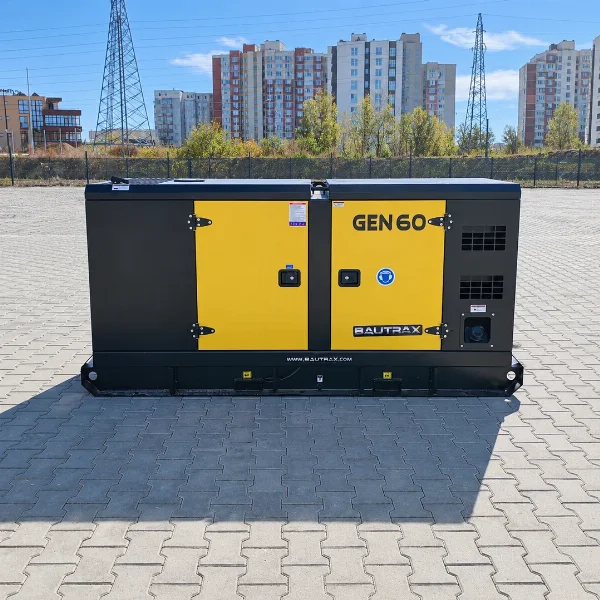

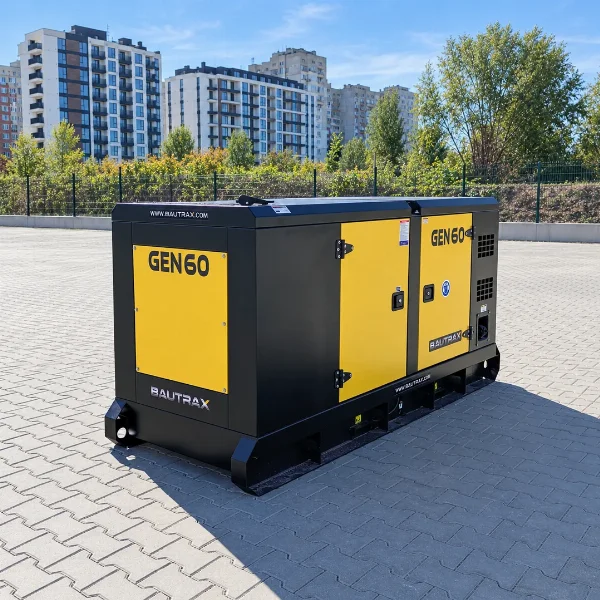

BAUTRAX GEN60 is a three-phase Super Silent diesel generator with 50 kW / 62.5 kVA prime power and 55 kW / 68.75 kVA standby power. It is configured for professional backup power and temporary site supply.
The generator uses a YTO YTN4088-23T diesel engine, Stamford BW-224E alternator and SmartGen HGM6120NC controller. A silent enclosure and Super Silent muffler form the noise-control configuration.
Standard equipment includes an ATS panel, water jacket heater and EU socket outputs of 1×16A + 1×32A + 1×63A. These outputs provide connection points for compatible three-phase electrical loads.
Application: Suitable for backup and temporary power at construction sites, workshops, warehouses, service facilities, agricultural sites and commercial buildings with compatible loads.
The model has a 115 L fuel tank and dimensions of 2490 × 950 × 1200 mm. Warranty: 2 years / 2000 motor hours.
Technical specifications
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | YTN4088-23T |
| Overall Dimensions (L×W×H) | 2490 × 950 × 1200 mm |
| Fuel Capacity | 115 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 50 kW / 62.5 kVA |
| Standby Power | 55 kW / 68.75 kVA |
| Alternator | Stamford BW-224E |
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | YTN4088-23T |
| Overall Dimensions (L×W×H) | 2490 × 950 × 1200 mm |
| Fuel Capacity | 115 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 50 kW / 62.5 kVA |
| Standby Power | 55 kW / 68.75 kVA |
| Alternator | Stamford BW-224E |
| Parameter | Value |
|---|---|
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
Gallery
Frequently asked questions
Prime power is the generator’s main working rating for regular use under variable load. Standby power is the emergency rating intended for backup operation when the main power supply is unavailable.
Yes. Each listed BAUTRAX generator includes an ATS panel, making the models suitable for backup power applications where automatic transfer switching is required.
Each model includes standard EU socket outputs: 1×16A + 1×32A + 1×63A.
The listed BAUTRAX Super Silent diesel generators include a warranty of 2 years or 2000 motor hours, whichever comes first.
BAUTRAX GEN60 with 50 kW prime power is suitable for a larger single-family house, small hotel, restaurant, service facility, warehouse, production area or construction site with several active electrical loads. It is a good choice when more capacity than GEN40 is required, for example for machinery, pumps, compressors, lighting, air conditioning, power tools and temporary site installations. The exact application depends on the total load and the number of consumers running at the same time.
