Description

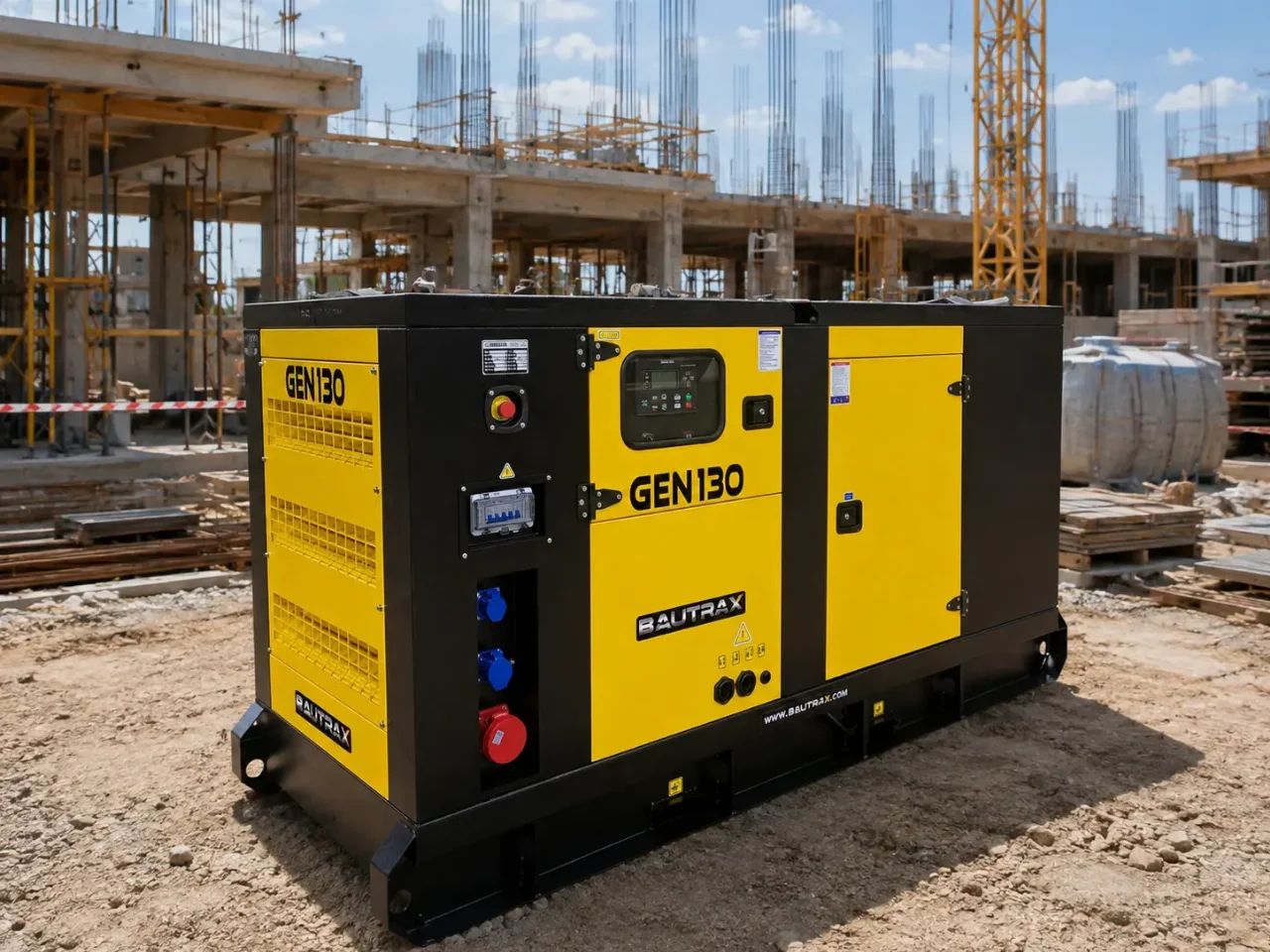

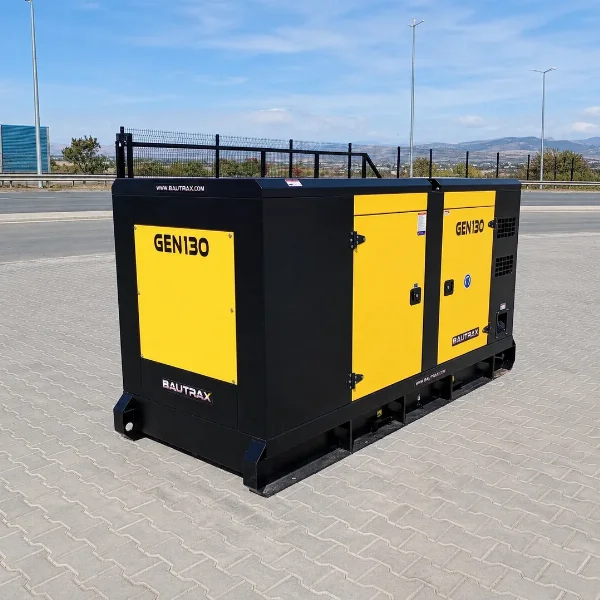

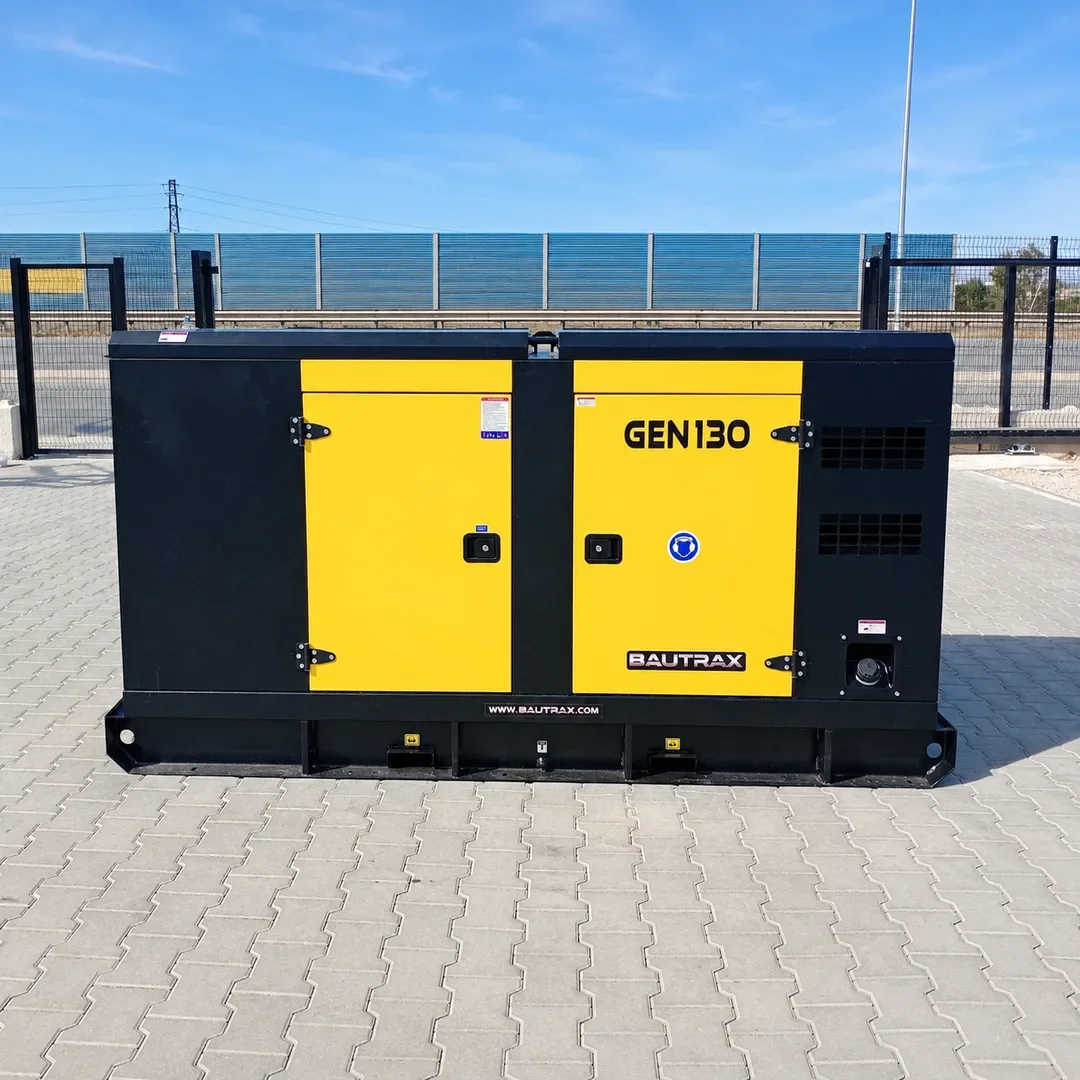

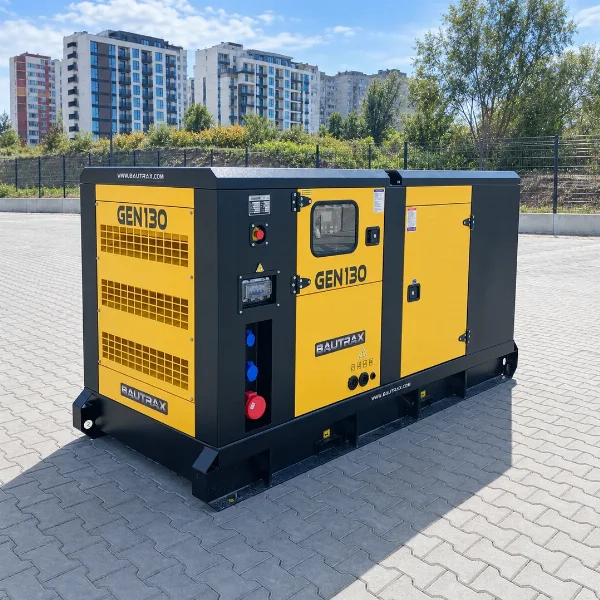

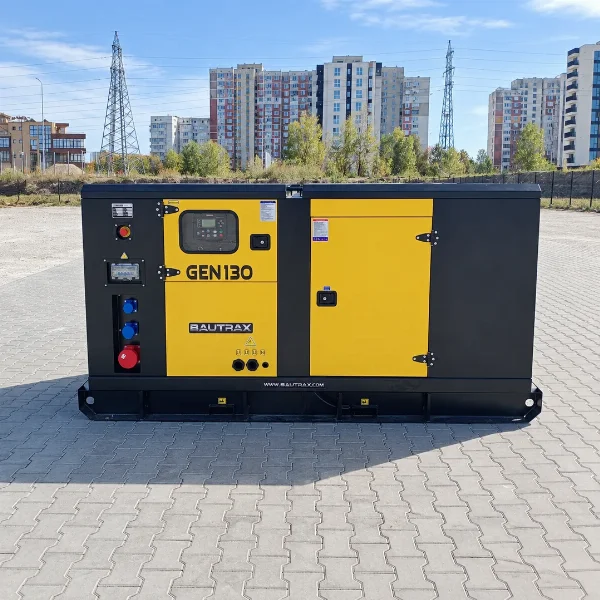

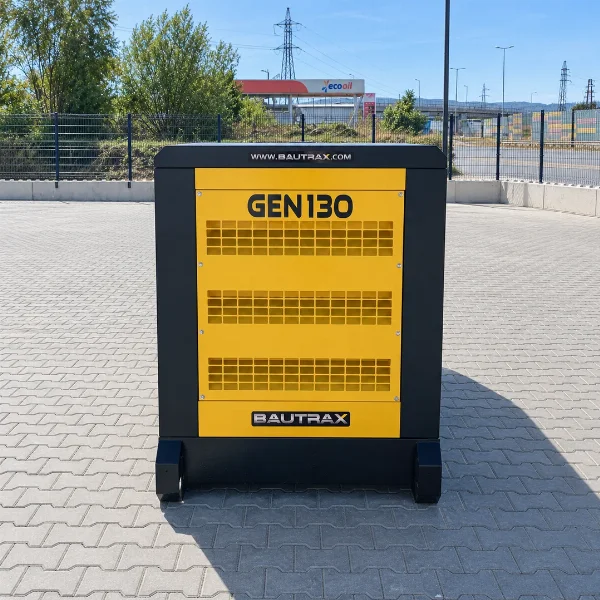

BAUTRAX GEN130 is a three-phase Super Silent diesel generator with 100 kW / 125 kVA prime power and 110 kW / 137.5 kVA standby power. The model is configured for larger backup and temporary site power requirements.
The generator uses a YTO LR4M3L-D88 diesel engine, Stamford BW-274D alternator and SmartGen HGM6120NC controller. A silent enclosure and Super Silent muffler form the noise-control configuration.
Standard equipment includes an ATS panel, water jacket heater and EU socket outputs of 1×16A + 1×32A + 1×63A. The three-phase system is intended for compatible equipment and electrical loads within the stated output range.
Application: Suitable for backup and temporary power at larger construction sites, workshops, warehouses, logistics facilities, agricultural properties, commercial buildings and industrial applications.
The model has a 230 L fuel tank and dimensions of 2890 × 1100 × 1450 mm. Warranty: 2 years / 2000 motor hours.
Technical specifications
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | LR4M3L-D88 |
| Overall Dimensions (L×W×H) | 2890 × 1100 × 1450 mm |
| Fuel Capacity | 230 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 100 kW / 125 kVA |
| Standby Power | 110 kW / 137.5 kVA |
| Alternator | Stamford BW-274D |
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | LR4M3L-D88 |
| Overall Dimensions (L×W×H) | 2890 × 1100 × 1450 mm |
| Fuel Capacity | 230 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 100 kW / 125 kVA |
| Standby Power | 110 kW / 137.5 kVA |
| Alternator | Stamford BW-274D |
| Parameter | Value |
|---|---|
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
Gallery

Frequently asked questions
Prime power is the generator’s main working rating for regular use under variable load. Standby power is the emergency rating intended for backup operation when the main power supply is unavailable.
Yes. Each listed BAUTRAX generator includes an ATS panel, making the models suitable for backup power applications where automatic transfer switching is required.
Each model includes standard EU socket outputs: 1×16A + 1×32A + 1×63A.
The listed BAUTRAX Super Silent diesel generators include a warranty of 2 years or 2000 motor hours, whichever comes first.
BAUTRAX GEN130 with 100 kW prime power is suitable for construction sites, industrial bases, warehouses, production areas, logistics facilities, agricultural sites and larger business buildings. Generators around 100 kW are widely used in construction and can power more demanding construction machinery, site installations, lighting, pumps, machines and other electrical loads. GEN130 can also be suitable for a tower crane or other construction equipment if the specific machine and additional loads are within the generator’s capacity. Before selection, the starting current and actual equipment consumption should be checked.
