Description

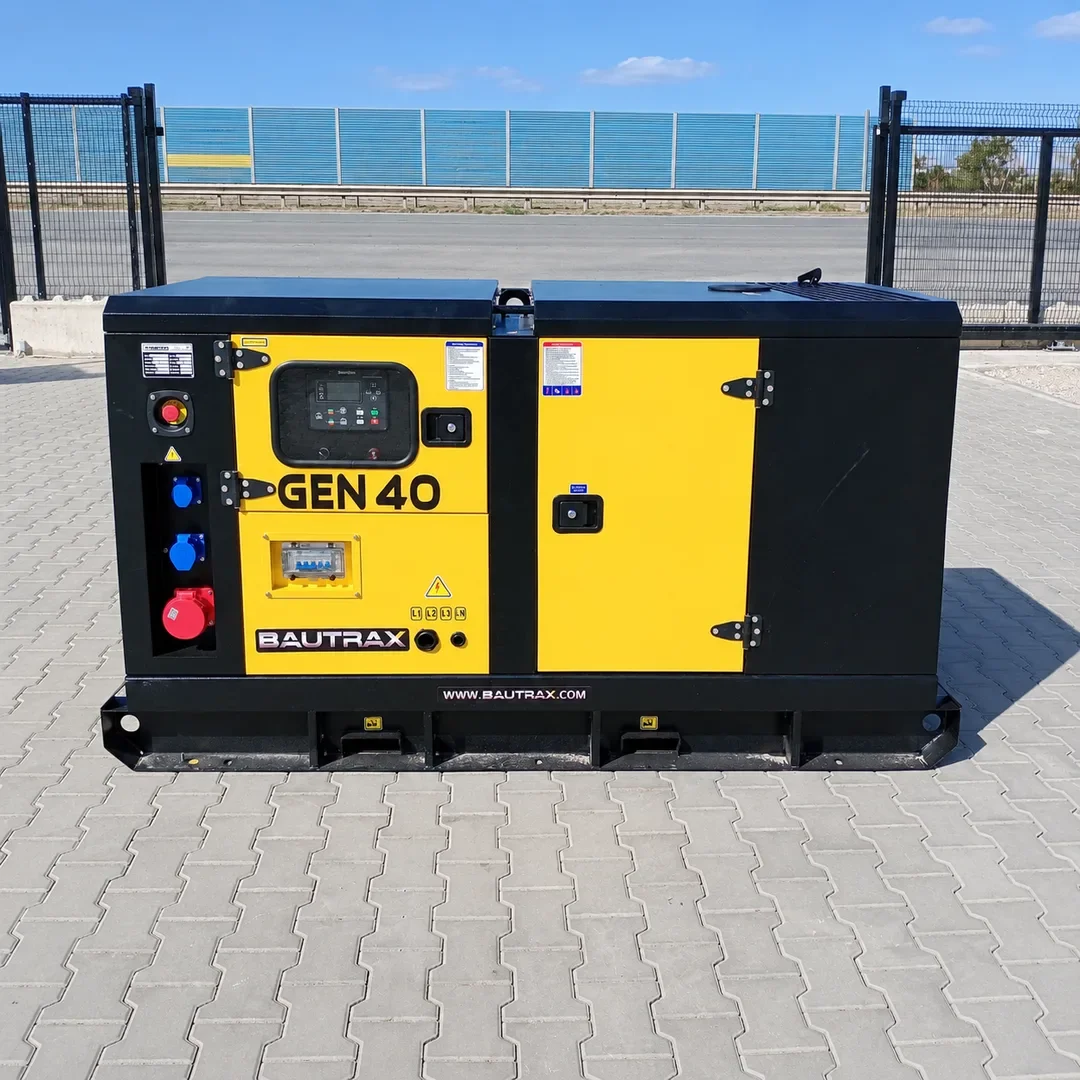

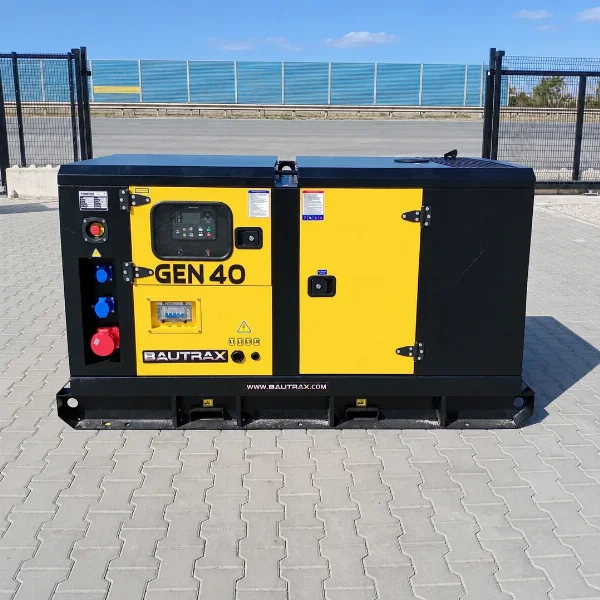

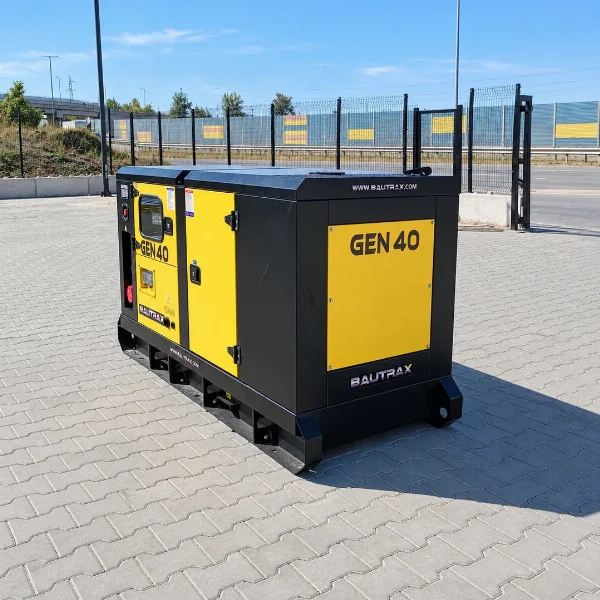

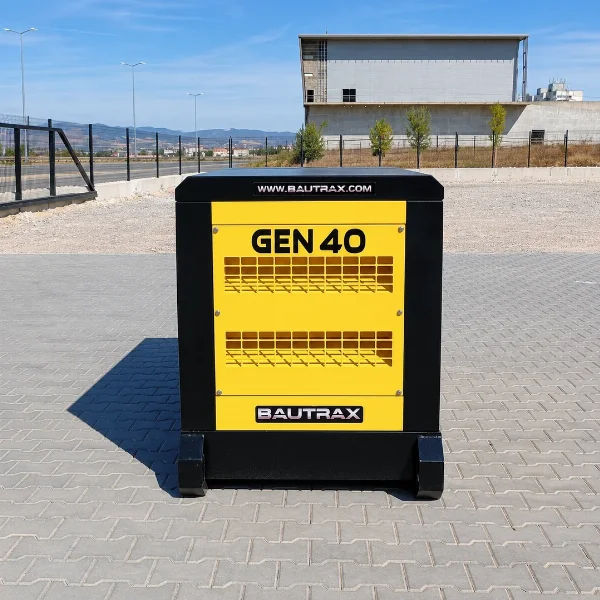

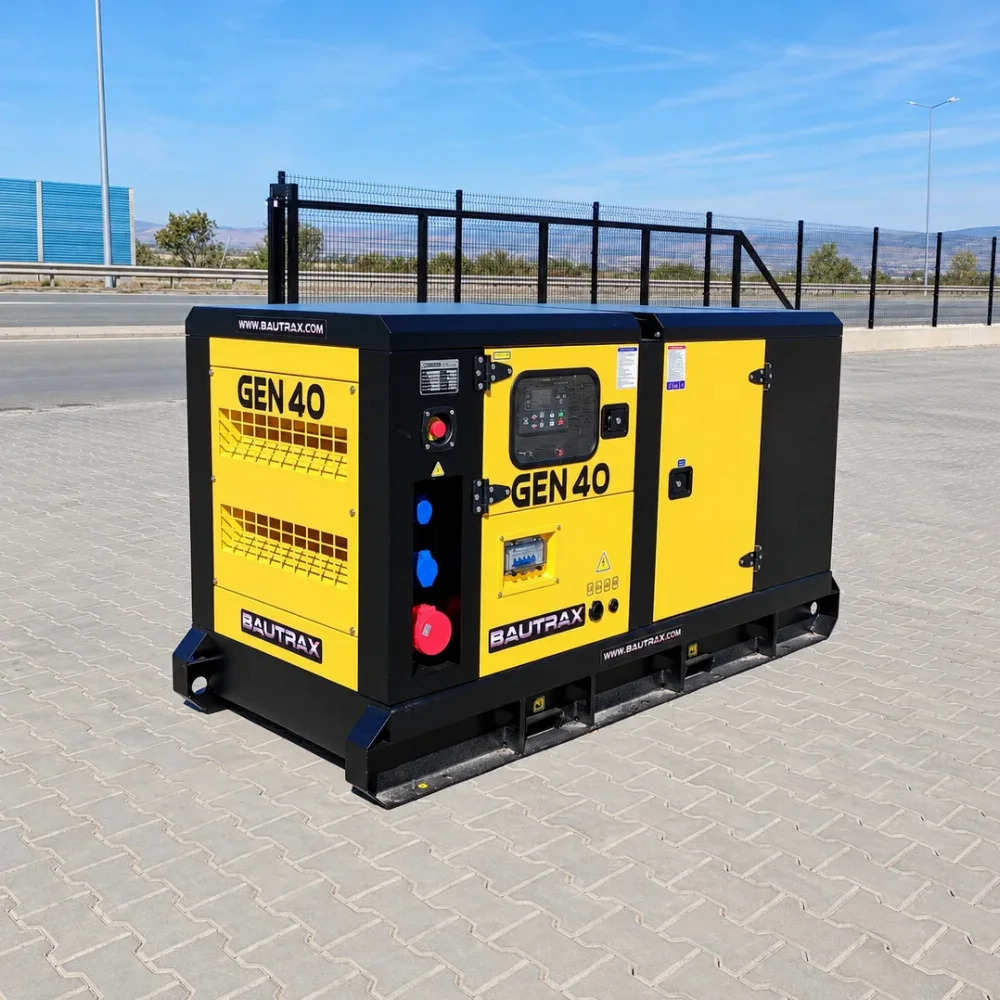

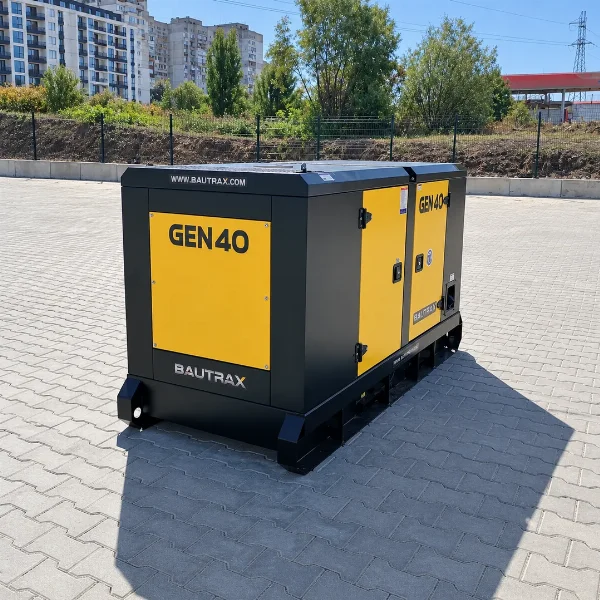

BAUTRAX GEN40 is a three-phase Super Silent diesel generator designed for professional backup power and temporary site power. With 30 kW / 37.5 kVA prime power, the model is suitable for construction sites, workshops, warehouses, service facilities, farms and commercial properties.

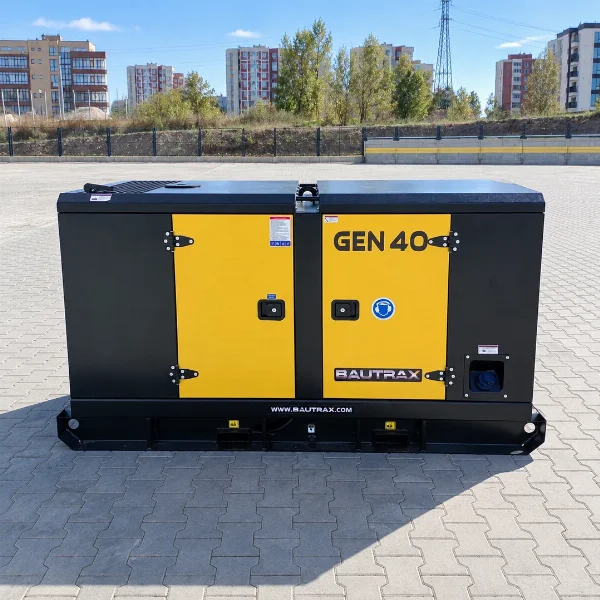

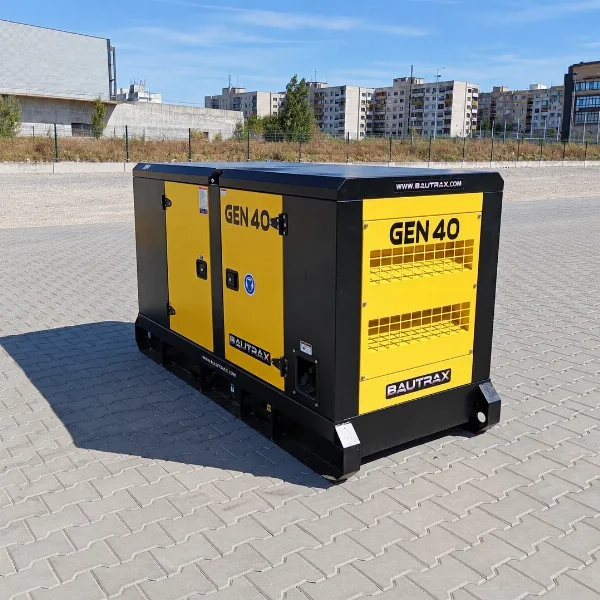

The generator is equipped with a durable YTO YTN4054-23N diesel engine, Stamford BW-184H alternator and SmartGen HGM6120NC controller. The silent enclosure and Super Silent muffler help reduce operating noise, while the practical canopy layout provides access for operation and maintenance.
BAUTRAX GEN40 includes an ATS panel, water jacket heater and standard EU socket outputs: 1×16A + 1×32A + 1×63A. This configuration makes the generator suitable for backup power systems and for supplying equipment, lighting, tools and other electrical loads on site.
The model has a 69 L fuel tank and dimensions of 2240 × 940 × 1200 mm. Warranty: 2 years / 2000 motor hours.
Technical specifications
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | YTN4054-23N |
| Overall Dimensions (L×W×H) | 2240 × 940 × 1200 mm |
| Fuel Capacity | 69 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 30 kW / 37.5 kVA |
| Standby Power | 33 kW / 41.25 kVA |
| Alternator | Stamford BW-184H |
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Parameter | Value |
|---|---|
| Engine Brand | YTO |
| Engine Model | YTN4054-23N |
| Overall Dimensions (L×W×H) | 2240 × 940 × 1200 mm |
| Fuel Capacity | 69 L |
| Power Type | Diesel |
| Generator Type | Super Silent diesel generator |
| Phase | 3-phase |
| Prime Power | 30 kW / 37.5 kVA |
| Standby Power | 33 kW / 41.25 kVA |
| Alternator | Stamford BW-184H |
| Parameter | Value |
|---|---|
| Controller | SmartGen HGM6120NC |
| ATS Panel | Included |
| Water Jacket Heater | Included |
| Socket Outputs | 1×16A + 1×32A + 1×63A EU Socket |
| Muffler | Super Silent muffler |
| Enclosure | Silent enclosure |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
Gallery
Frequently asked questions
Prime power is the generator’s main working rating for regular use under variable load. Standby power is the emergency rating intended for backup operation when the main power supply is unavailable.
Yes. Each listed BAUTRAX generator includes an ATS panel, making the models suitable for backup power applications where automatic transfer switching is required.
Each model includes standard EU socket outputs: 1×16A + 1×32A + 1×63A.
The listed BAUTRAX Super Silent diesel generators include a warranty of 2 years or 2000 motor hours, whichever comes first.
BAUTRAX GEN40 with 30 kW prime power is suitable for backup power for a medium-sized single-family house, small office, service facility, workshop, warehouse or smaller construction site. It can power lighting, household appliances, heating or cooling systems, power tools and other electrical loads, depending on the actual connected demand. With three-phase output, ATS panel, water jacket heater and Super Silent muffler, GEN40 is a practical choice for reliable backup or temporary site power.
