Description

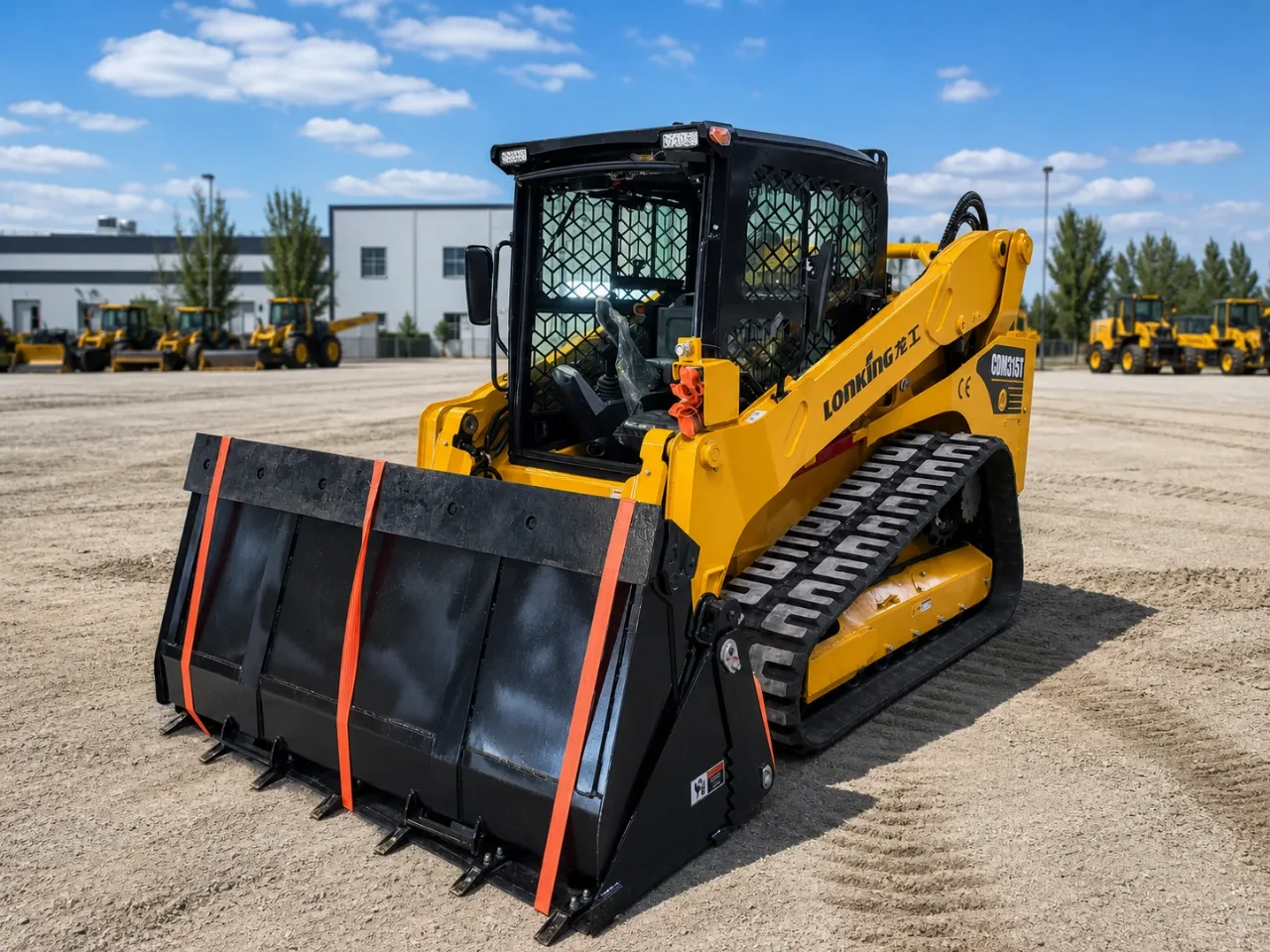

Lonking CDM315T is a compact track loader with a 1500 kg rated payload, 0.7 m³ bucket and 2440 mm dumping height. The tracked undercarriage and 42 kN traction force provide the working configuration for loading and material movement on compatible site terrain.
The loader uses a Kubota V3800-TIE5-LKN-1S engine rated at 81.8 kW/2400 rpm and meeting Euro Stage V / EPA Tier 4F. Hydraulic flow ranges from 15-160 L/min at 25 MPa, allowing operation with compatible attachments across the stated flow range.
Operating weight: 5440 kg
Rated payload: 1500 kg
Bucket capacity: 0.7 m³
High Flow: 160 L/min
Maximum working height: 4400 mm
Dumping height: 2440 mm
Ground clearance: 290 mm
Application: Suitable for loading, site material movement and compatible hydraulic attachment work where tracked traction and a 1500 kg rated payload are required. The 2100 mm bucket width defines the front working width.
The machine weighs 5440 kg and measures 4100×2100×2150 mm.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 5440 kg |
| Wheel Base | 1680 mm |
| Engine Brand | Kubota |
| Engine Model | V3800-TIE5-LKN-1S |
| Engine Power | 81.8 kW/2400 rpm |
| Displacement | 3.769 L |
| Emission Standard | Euro Stage V / EPA Tier 4F |
| Bucket Capacity | 0.7 m³ |
| Travel Speed | 11/7.5 km/h |
| Fuel Tank | 100 L |
| Hydraulic Flow | 15-160 L/min |
| System Voltage | 12 V |
| Battery Capacity | 120 Ah |
| Rated Payload | 1500 kg |
| Tipping Load | 35 kN |
| Breakout Force | 24 kN |
| Traction Force | 42 kN |
| Overall Dimensions (L×W×H) | 4100×2100×2150 mm |
| Fuel Consumption | 223 g/kW*h |
| Stroke | 120 mm |
| Bore | 100 mm |
| Hydraulic Pressure | 25 MPa |
| Cooling System Capacity | 12 L |
| Engine Crankcase Capacity | 10 L |
| Hydraulic Tank Capacity | 38 L |
| Max. Operation Height | 4400 mm |
| Bucket Pin Height | 3270 mm |
| Cab Roof Height | 2150 mm |
| Max. Height at Bucket Leveled | 3125 mm |
| Length Without Attachment | 3145 mm |
| Length With Standard Bucket | 4100 mm |
| Dumping Height | 2440 mm |
| Reach Rollback | 1225 mm |
| Ground Clearance | 290 mm |
| Front Turning Radius Without Attachment | 1700 mm |
| Front Turning Radius | 2715 mm |
| Rear Turning Radius | 1800 mm |
| Tail Length | 919 mm |
| Center Distance Between Two Wheels | 1515 mm |
| Bucket Width | 2100 mm |
| Dumping Angle at Max. Height | 43° |
| Bucket Angle on Ground | 33° |
| Bucket Rollback Angle at Max. Height | 90° |
| Start Angle | 32° |
| Hydraulic Flow High Flow | 160 L/min |
| Loader Hydraulic Pressure | 25 MPa |
| Rubber Track | 450X86SDXSE3 |
| Parameter | Value |
|---|---|
| Weight | 5440 kg |
| Wheel Base | 1680 mm |
| Engine Brand | Kubota |
| Engine Model | V3800-TIE5-LKN-1S |
| Engine Power | 81.8 kW/2400 rpm |
| Displacement | 3.769 L |
| Emission Standard | Euro Stage V / EPA Tier 4F |
| Bucket Capacity | 0.7 m³ |
| Travel Speed | 11/7.5 km/h |
| Fuel Tank | 100 L |
| Length With Standard Bucket | 4100 mm |
| Ground Clearance | 290 mm |
| Rear Turning Radius | 1800 mm |
| Bucket Width | 2100 mm |
| Bucket Rollback Angle at Max. Height | 90° |
| Loader Hydraulic Pressure | 25 MPa |
| Parameter | Value |
|---|---|
| Hydraulic Flow | 15-160 L/min |
| System Voltage | 12 V |
| Battery Capacity | 120 Ah |
| Rated Payload | 1500 kg |
| Tipping Load | 35 kN |
| Breakout Force | 24 kN |
| Traction Force | 42 kN |
| Overall Dimensions (L×W×H) | 4100×2100×2150 mm |
| Fuel Consumption | 223 g/kW*h |
| Stroke | 120 mm |
| Dumping Height | 2440 mm |
| Front Turning Radius Without Attachment | 1700 mm |
| Tail Length | 919 mm |
| Dumping Angle at Max. Height | 43° |
| Start Angle | 32° |
| Rubber Track | 450X86SDXSE3 |
| Parameter | Value |
|---|---|
| Bore | 100 mm |
| Hydraulic Pressure | 25 MPa |
| Cooling System Capacity | 12 L |
| Engine Crankcase Capacity | 10 L |
| Hydraulic Tank Capacity | 38 L |
| Max. Operation Height | 4400 mm |
| Bucket Pin Height | 3270 mm |
| Cab Roof Height | 2150 mm |
| Max. Height at Bucket Leveled | 3125 mm |
| Length Without Attachment | 3145 mm |
| Reach Rollback | 1225 mm |
| Front Turning Radius | 2715 mm |
| Center Distance Between Two Wheels | 1515 mm |
| Bucket Angle on Ground | 33° |
| Hydraulic Flow High Flow | 160 L/min |
