Description

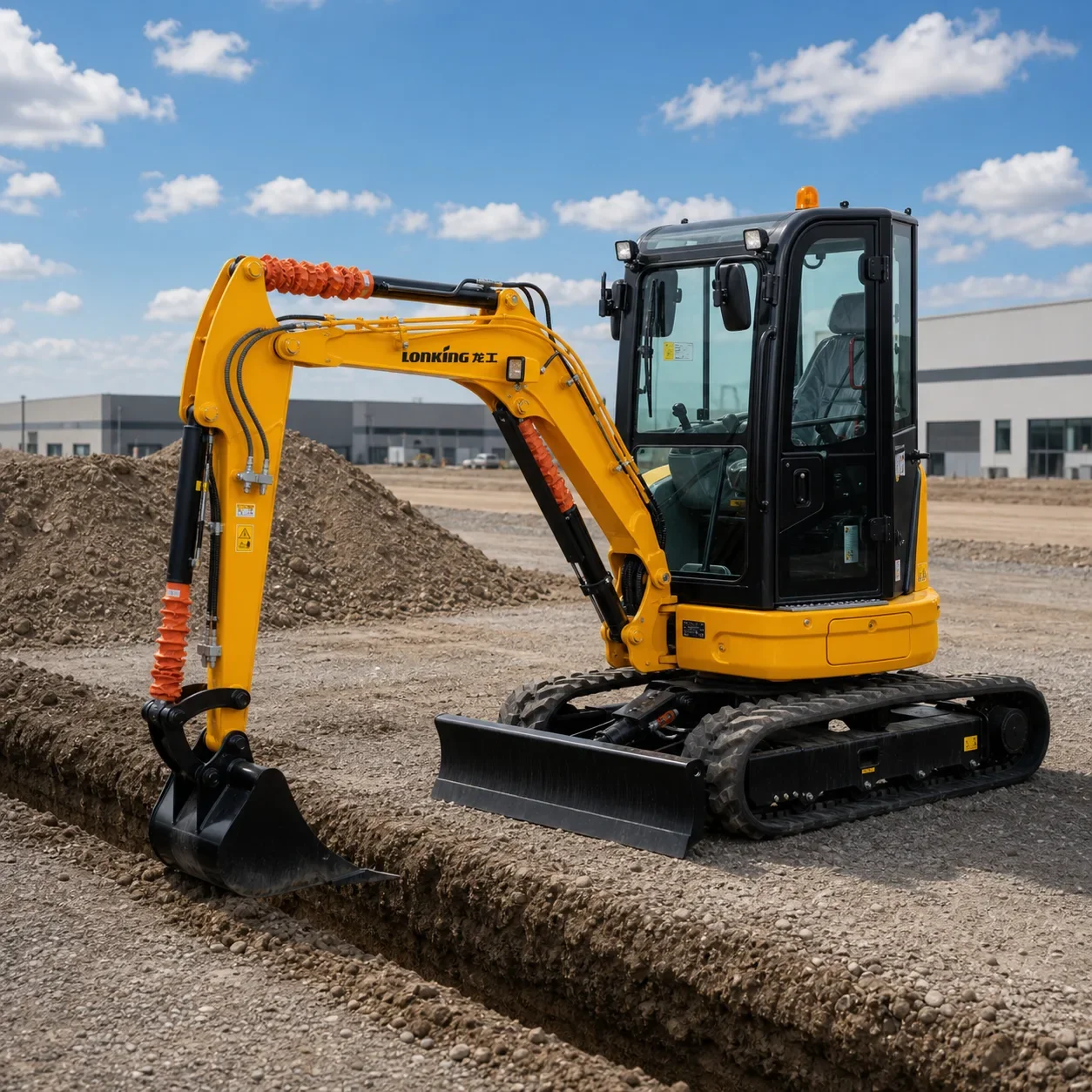

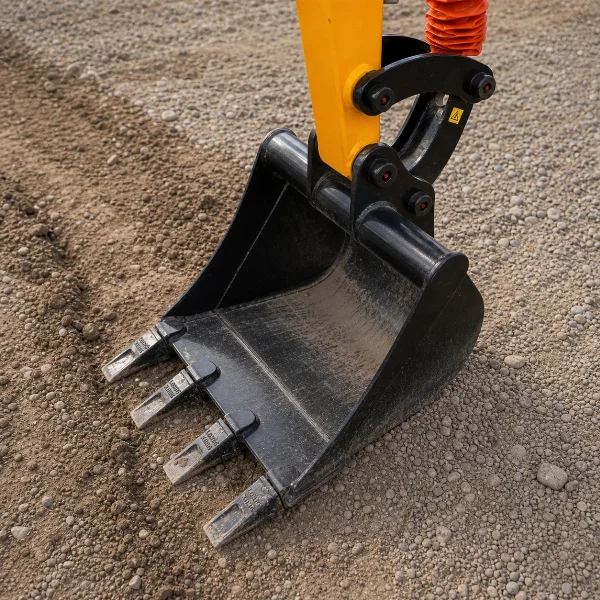

Lonking CDM6025 is a 2650 kg mini excavator with a 0.08 m³ bucket and 580 mm standard bucket width. A 23.1 kN bucket digging force supports excavation work suited to this compact machine class.

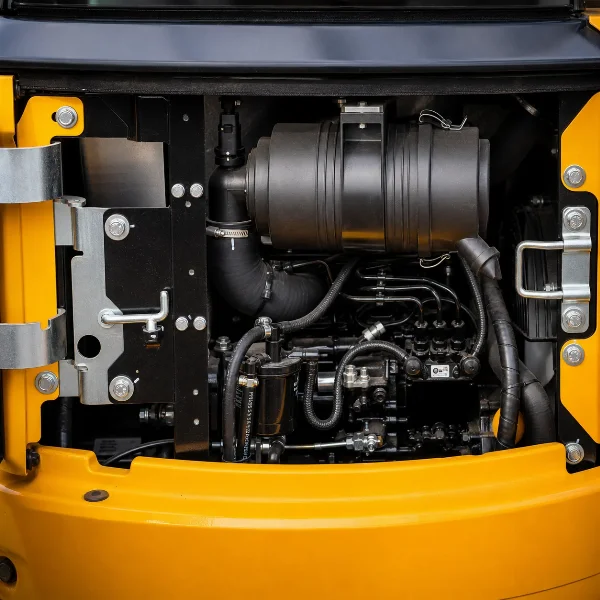

The excavator uses a Yanmar 3TNV80F engine rated at 14.6 kW/2400 rpm and meeting EU Stage V / EPA Tier 4 Final. The undercarriage uses 300 mm rubber tracks and provides travel speeds of 2.6/4.0 km/h.
Operating weight: 2650 kg
Bucket digging force: 23.1 kN
Arm digging force: 13.6 kN
Hydraulic flow: 61.6 L/min
Maximum working pressure: 24.5 MPa
Boom swing: 65° left / 50° right
Ground pressure: 25.2 kPa
Application: Suitable for excavation, landscaping and utility tasks requiring a 580 mm bucket and side boom positioning. The rubber tracks provide the stated ground-contact configuration.
The machine has a 26 L fuel tank and a 41 L hydraulic oil tank.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 2650 kg |
| Gradeability | 30° |
| Engine Brand | Yanmar |
| Engine Model | 3TNV80F |
| Engine Power | 14.6 kW/2400 rpm |
| Displacement | 1.267 L |
| Emission Standard | EU Stage V / EPA Tier 4 Final |
| Bucket Capacity | 0.08 m³ |
| Standard Bucket Width | 580 mm |
| Travel Speed | 2.6/4.0 km/h |
| Swing Speed | 10 rpm |
| Ground Pressure | 25.2 kPa |
| Boom Swing Angle (L/R) | 65°/50° |
| Max. Traction Force | 25.6 kN |
| Fuel Tank | 26 L |
| Hydraulic Flow | 61.6 L/min |
| Max. Working Pressure | 24.5 MPa |
| Max. Pilot Pressure | 3.8 MPa |
| Max. Arm Digging Force | 13.6 kN |
| Max. Bucket Digging Force | 23.1 kN |
| Hydraulic Oil Tank | 41 L |
| Track Width | 300 mm |
| Track Type | Rubber tracks |
| Carrier Rollers | 1 (each side) |
| Track Rollers | 4 (each side) |
| System Voltage | 12 V |
| Battery Capacity | 12 V, 70 Ah |
| Parameter | Value |
|---|---|
| Weight | 2650 kg |
| Gradeability | 30° |
| Engine Brand | Yanmar |
| Engine Model | 3TNV80F |
| Engine Power | 14.6 kW/2400 rpm |
| Displacement | 1.267 L |
| Emission Standard | EU Stage V / EPA Tier 4 Final |
| Bucket Capacity | 0.08 m³ |
| Standard Bucket Width | 580 mm |
| Travel Speed | 2.6/4.0 km/h |
| Parameter | Value |
|---|---|
| Swing Speed | 10 rpm |
| Ground Pressure | 25.2 kPa |
| Boom Swing Angle (L/R) | 65°/50° |
| Max. Traction Force | 25.6 kN |
| Fuel Tank | 26 L |
| Hydraulic Flow | 61.6 L/min |
| Max. Working Pressure | 24.5 MPa |
| Max. Pilot Pressure | 3.8 MPa |
| Max. Arm Digging Force | 13.6 kN |
| Max. Bucket Digging Force | 23.1 kN |
| Parameter | Value |
|---|---|
| Hydraulic Oil Tank | 41 L |
| Track Width | 300 mm |
| Track Type | Rubber tracks |
| Carrier Rollers | 1 (each side) |
| Track Rollers | 4 (each side) |
| System Voltage | 12 V |
| Battery Capacity | 12 V, 70 Ah |
