Description

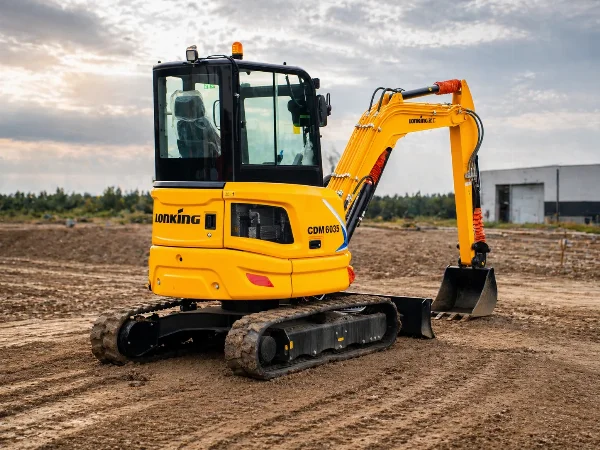

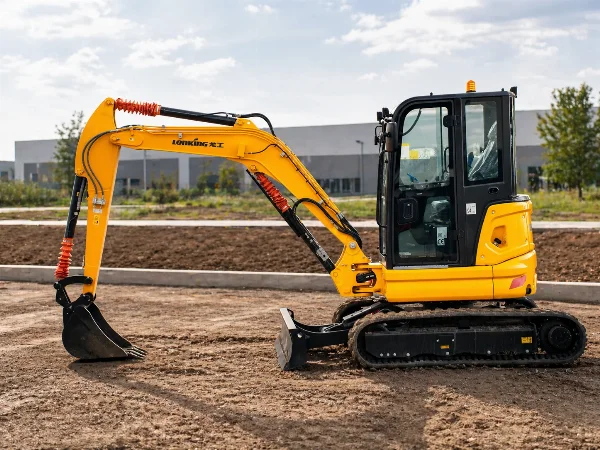

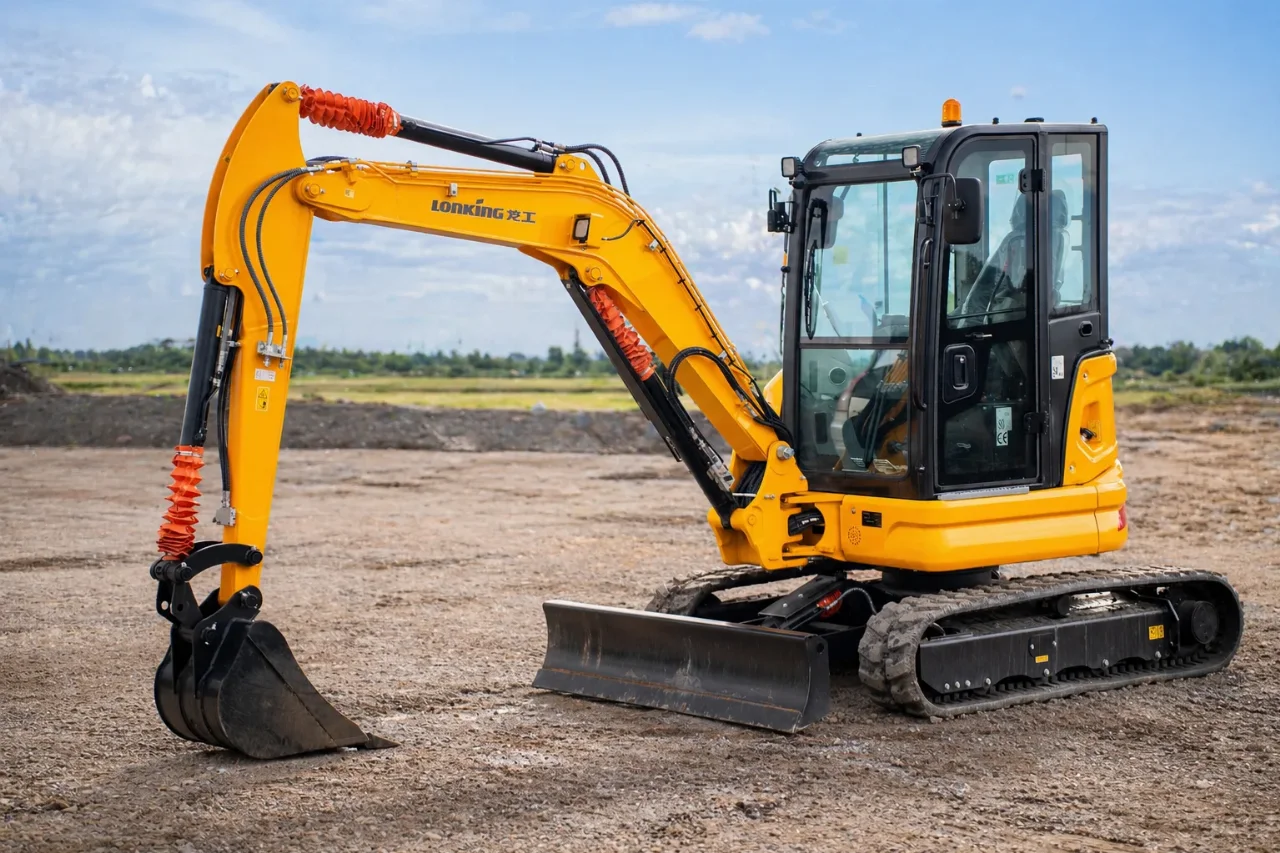

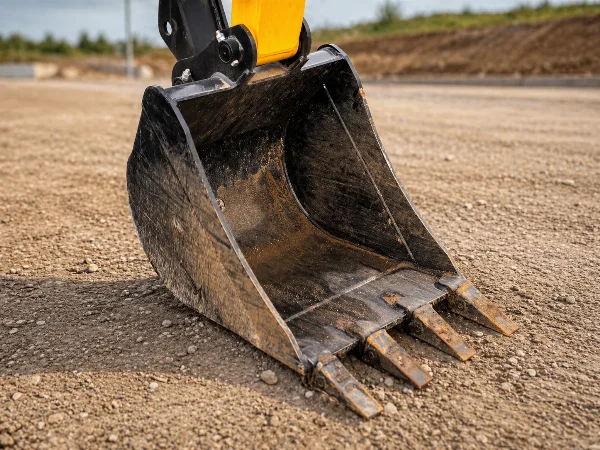

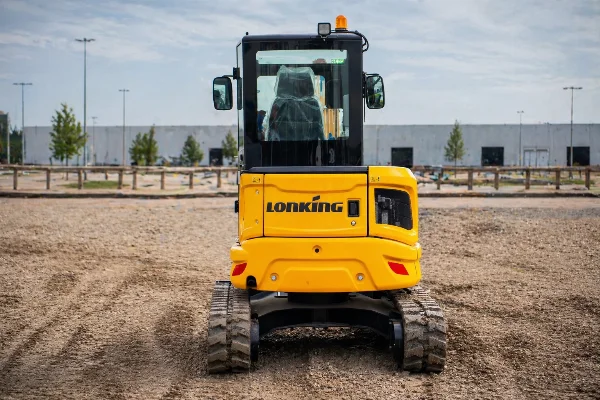

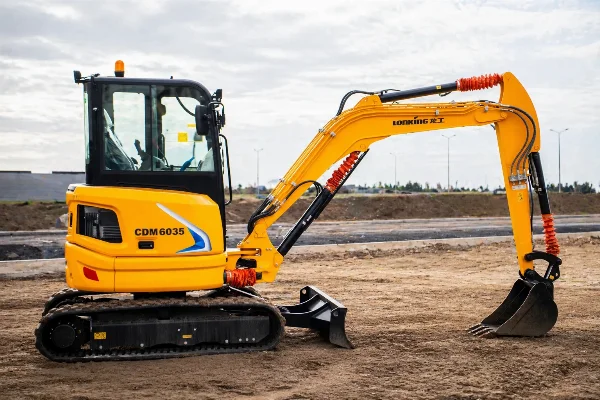

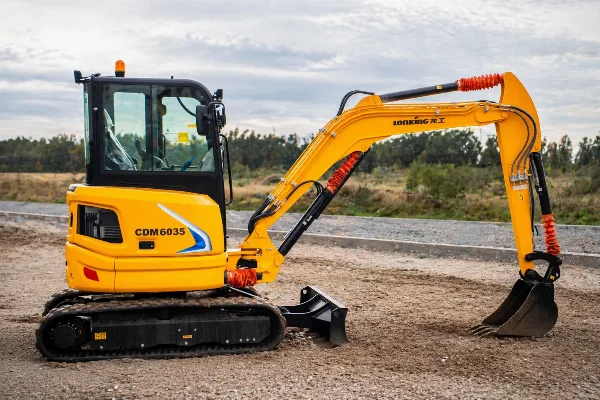

Lonking CDM6035 is a 3850 kg mini excavator with a 0.11 m³ bucket and 520 mm standard bucket width. Its 30.1 kN bucket digging force and 17.2 kN arm force provide the digging performance for construction, utility and landscaping tasks suited to this class.

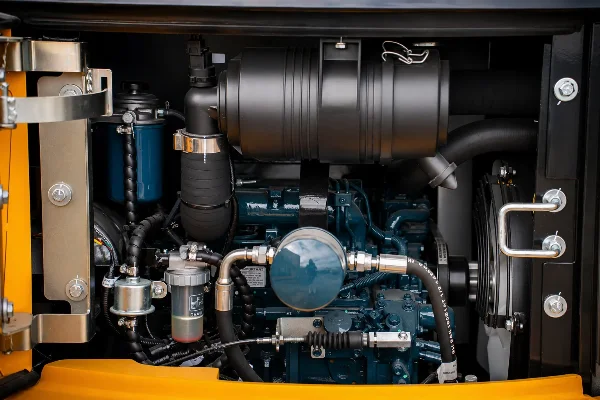

The excavator uses a Kubota D1703 engine rated at 18.2 kW/2200 rpm and meeting EU Stage V / USA T4F. The hydraulic system provides 99 L/min at a maximum working pressure of 24.5 MPa.
Operating weight: 3850 kg
Bucket digging force: 30.1 kN
Arm digging force: 17.2 kN
Travel speed: 2.3/4.0 km/h
Swing speed: 10 rpm
Boom swing: 72° left / 43° right
Track width: 300 mm
Application: Suitable for excavation, trenching and material removal where a 0.11 m³ bucket and 30.1 kN bucket force match the task. Boom swing supports digging beside compatible obstacles and boundaries.
The machine has a 40 L fuel tank and a 41 L hydraulic oil tank.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 3850 kg |
| Gradeability | 30° |
| Engine Brand | Kubota |
| Engine Model | D1703 |
| Engine Power | 18.2 kW/2200 rpm |
| Displacement | 1.8 L |
| Emission Standard | EU Stage V / USA T4F |
| Bucket Capacity | 0.11 m³ |
| Standard Bucket Width | 520 mm |
| Travel Speed | 2.3/4.0 km/h |
| Swing Speed | 10 rpm |
| Ground Pressure | 34.1 kPa |
| Boom Swing Angle (L/R) | 72°/43° |
| Max. Traction Force | 32 kN |
| Fuel Tank | 40 L |
| Hydraulic Flow | 99 L/min |
| Max. Working Pressure | 24.5 MPa |
| Max. Pilot Pressure | 3.8 MPa |
| Max. Arm Digging Force | 17.2 kN |
| Max. Bucket Digging Force | 30.1 kN |
| Hydraulic Oil Tank | 41 L |
| Track Width | 300 mm |
| Track Type | Rubber crawler |
| Carrier Rollers | 1 (each side) |
| Track Rollers | 4 (each side) |
| System Voltage | 12 V |
| Battery Capacity | 12 V, 80 Ah |
| Parameter | Value |
|---|---|
| Weight | 3850 kg |
| Gradeability | 30° |
| Engine Brand | Kubota |
| Engine Model | D1703 |
| Engine Power | 18.2 kW/2200 rpm |
| Displacement | 1.8 L |
| Emission Standard | EU Stage V / USA T4F |
| Bucket Capacity | 0.11 m³ |
| Standard Bucket Width | 520 mm |
| Travel Speed | 2.3/4.0 km/h |
| Parameter | Value |
|---|---|
| Swing Speed | 10 rpm |
| Ground Pressure | 34.1 kPa |
| Boom Swing Angle (L/R) | 72°/43° |
| Max. Traction Force | 32 kN |
| Fuel Tank | 40 L |
| Hydraulic Flow | 99 L/min |
| Max. Working Pressure | 24.5 MPa |
| Max. Pilot Pressure | 3.8 MPa |
| Max. Arm Digging Force | 17.2 kN |
| Max. Bucket Digging Force | 30.1 kN |
| Parameter | Value |
|---|---|
| Hydraulic Oil Tank | 41 L |
| Track Width | 300 mm |
| Track Type | Rubber crawler |
| Carrier Rollers | 1 (each side) |
| Track Rollers | 4 (each side) |
| System Voltage | 12 V |
| Battery Capacity | 12 V, 80 Ah |
