Description

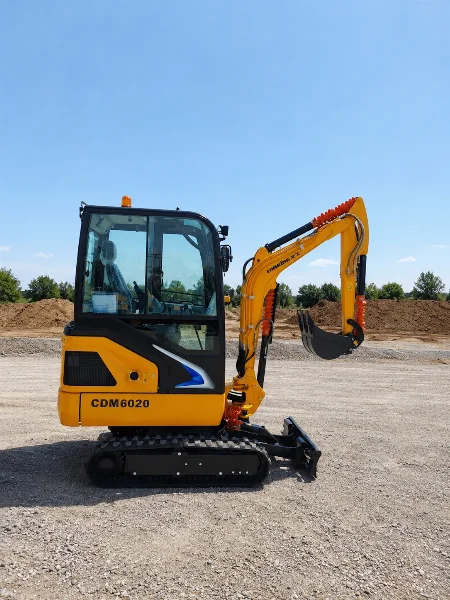

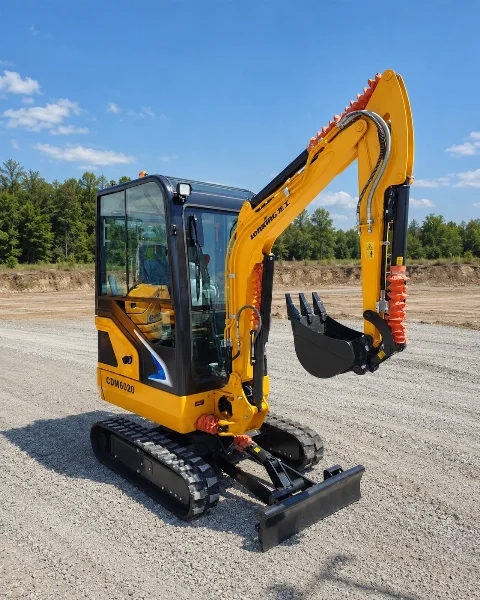

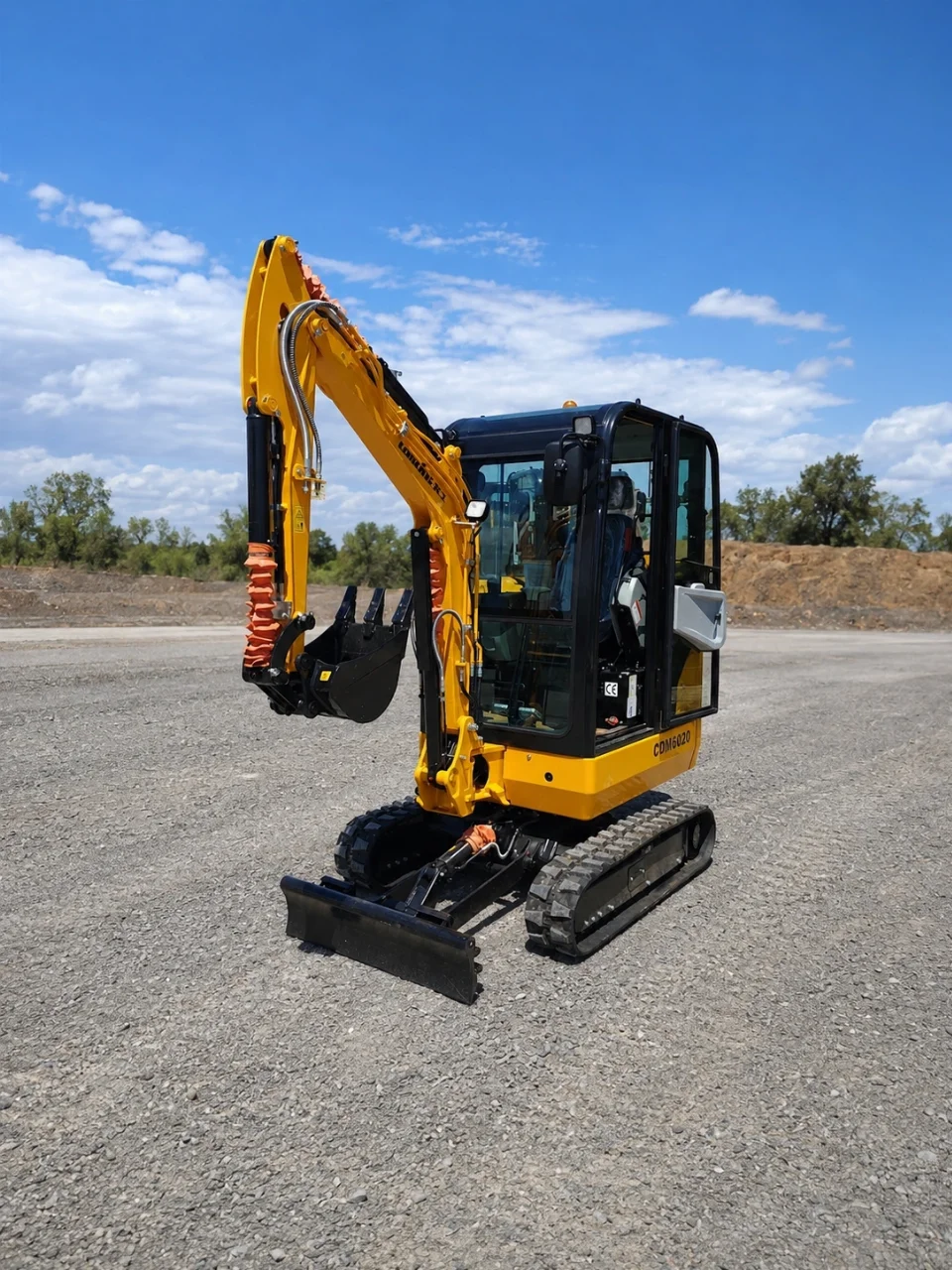

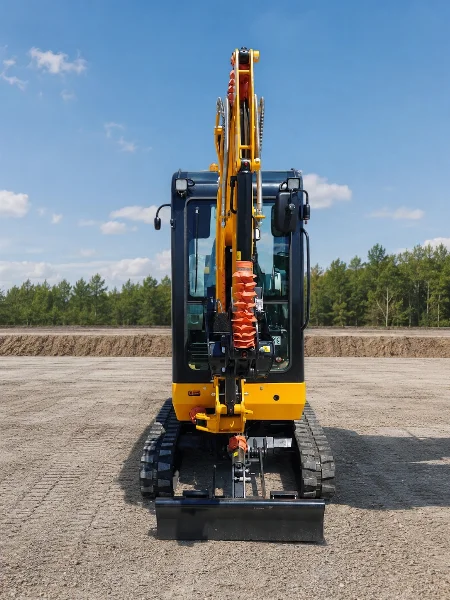

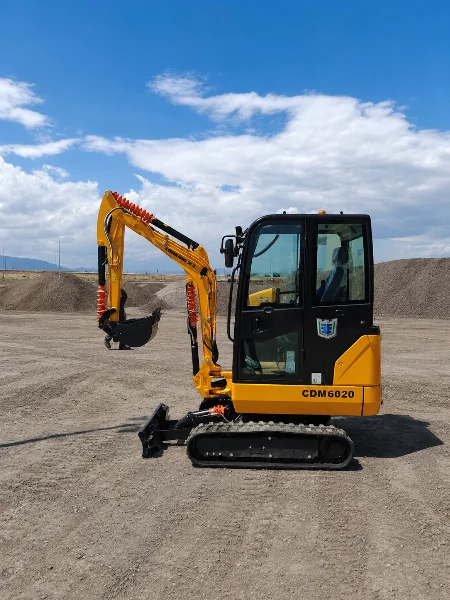

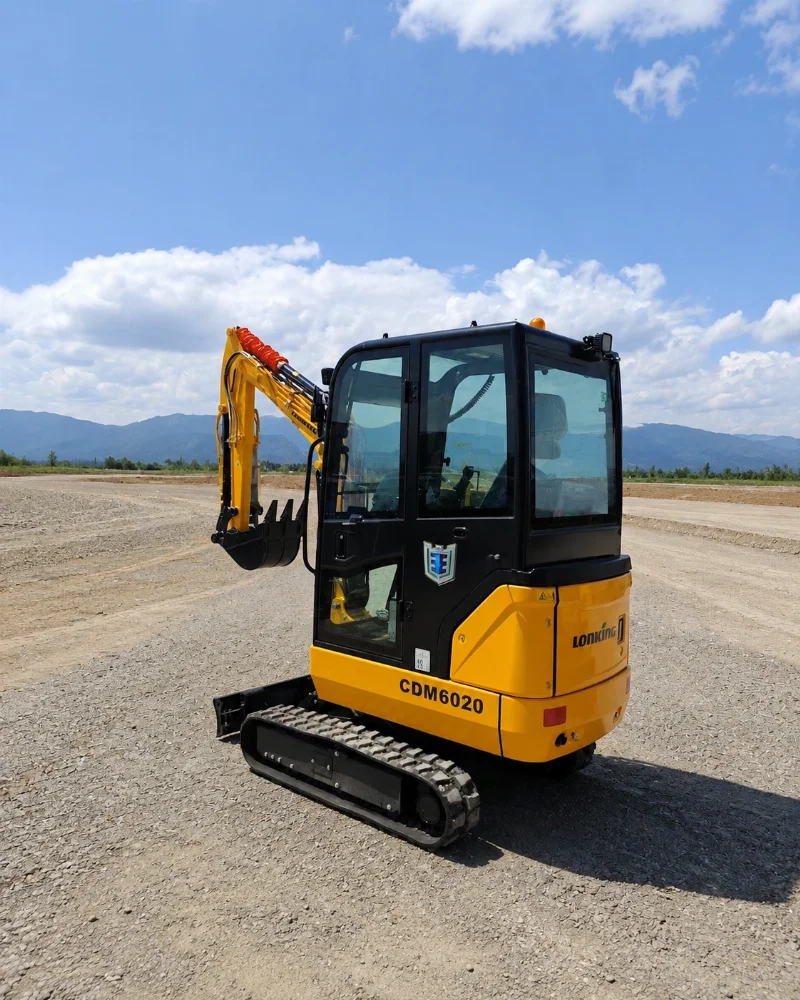

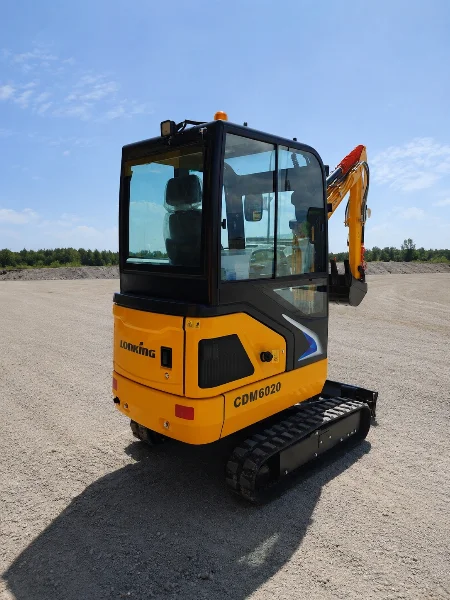

Lonking CDM6020 is a 2000 kg mini excavator with a 0.04 m³ bucket and 380 mm standard bucket width. Its 21 kN bucket digging force and 12 kN arm digging force support excavation tasks suited to this machine class.
The excavator uses a Yanmar 3TNV80F engine rated at 13.4 kW/2200 rpm and meeting EU Stage V / EPA Tier 4 Final. Steel tracks measuring 230 mm wide and travel speeds of 2.5/4.5 km/h form the undercarriage configuration.
Operating weight: 2000 kg
Hydraulic flow: 61.6 L/min
Maximum working pressure: 24 MPa
Bucket digging force: 21 kN
Arm digging force: 12 kN
Boom swing: 65° left / 47° right
Gradeability: 30°
Application: Suitable for excavation, landscaping and utility work where a 2000 kg excavator and 380 mm bucket match the job. The steel tracks provide the stated undercarriage configuration for compatible working surfaces.
The machine has a 21 L fuel tank and a 26 L hydraulic oil tank.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 2000 kg |
| Gradeability | 30° |
| Engine Brand | Yanmar |
| Engine Model | 3TNV80F |
| Engine Power | 13.4 kW/2200 rpm |
| Displacement | 1.267 L |
| Emission Standard | EU Stage V / EPA Tier 4 Final |
| Bucket Capacity | 0.04 m³ |
| Standard Bucket Width | 380 mm |
| Travel Speed | 2.5/4.5 km/h |
| Swing Speed | 10 rpm |
| Ground Pressure | 30 kPa |
| Boom Swing Angle (L/R) | 65°/47° |
| Max. Traction Force | 16.7 kN |
| Fuel Tank | 21 L |
| Hydraulic Flow | 61.6 L/min |
| Max. Working Pressure | 24 MPa |
| Max. Pilot Pressure | 3.5 MPa |
| Max. Arm Digging Force | 12 kN |
| Max. Bucket Digging Force | 21 kN |
| Hydraulic Oil Tank | 26 L |
| Track Width | 230 mm |
| Track Type | Steel crawler |
| Carrier Rollers | 1 (each side) |
| Track Rollers | 3 (each side) |
| System Voltage | 12 V |
| Battery Capacity | 12 V, 70 Ah |
| Parameter | Value |
|---|---|
| Weight | 2000 kg |
| Gradeability | 30° |
| Engine Brand | Yanmar |
| Engine Model | 3TNV80F |
| Engine Power | 13.4 kW/2200 rpm |
| Displacement | 1.267 L |
| Emission Standard | EU Stage V / EPA Tier 4 Final |
| Bucket Capacity | 0.04 m³ |
| Standard Bucket Width | 380 mm |
| Travel Speed | 2.5/4.5 km/h |
| Parameter | Value |
|---|---|
| Swing Speed | 10 rpm |
| Ground Pressure | 30 kPa |
| Boom Swing Angle (L/R) | 65°/47° |
| Max. Traction Force | 16.7 kN |
| Fuel Tank | 21 L |
| Hydraulic Flow | 61.6 L/min |
| Max. Working Pressure | 24 MPa |
| Max. Pilot Pressure | 3.5 MPa |
| Max. Arm Digging Force | 12 kN |
| Max. Bucket Digging Force | 21 kN |
| Parameter | Value |
|---|---|
| Hydraulic Oil Tank | 26 L |
| Track Width | 230 mm |
| Track Type | Steel crawler |
| Carrier Rollers | 1 (each side) |
| Track Rollers | 3 (each side) |
| System Voltage | 12 V |
| Battery Capacity | 12 V, 70 Ah |
