Description

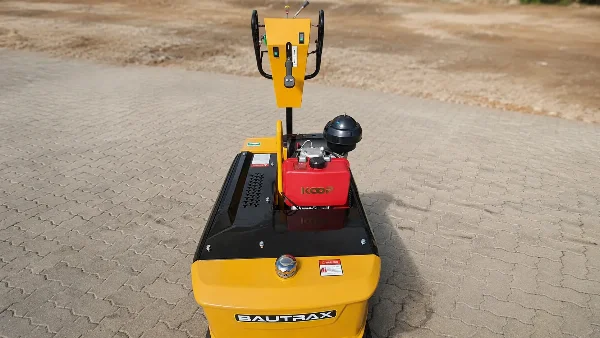

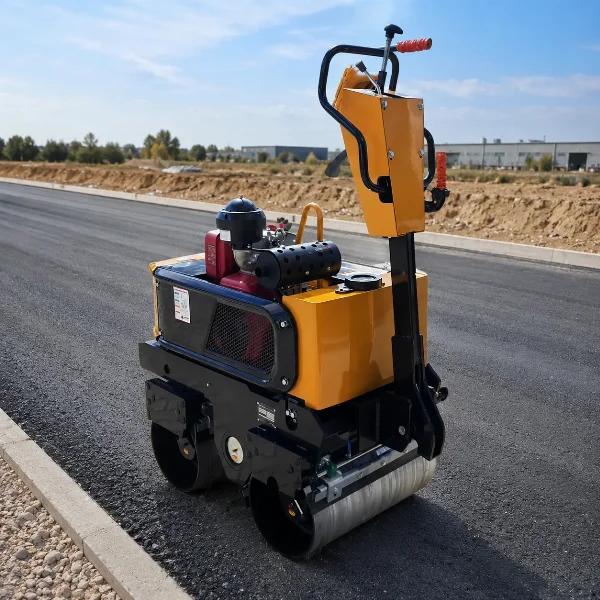

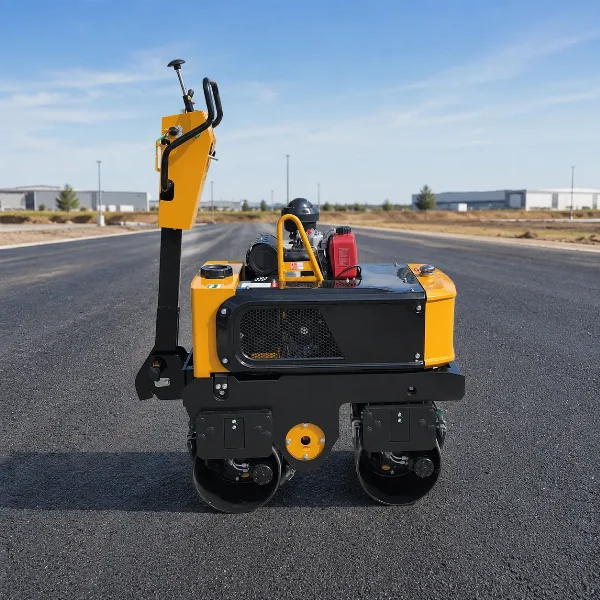

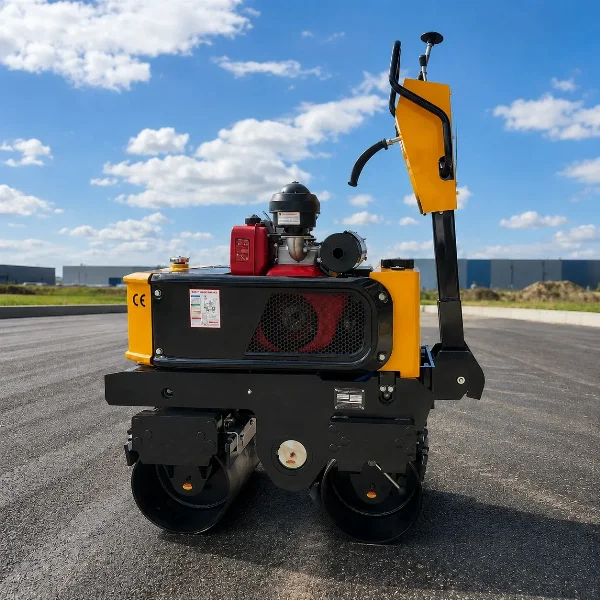

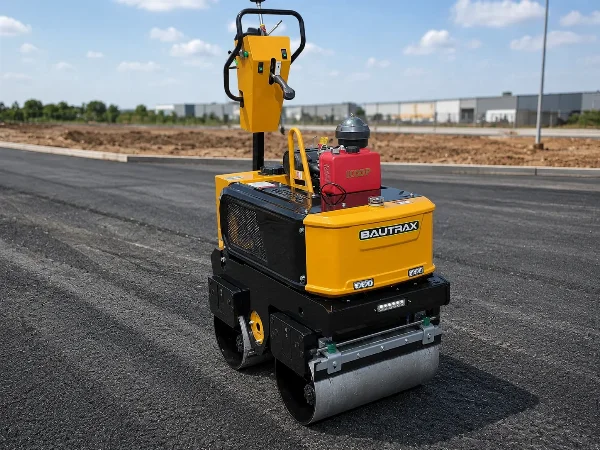

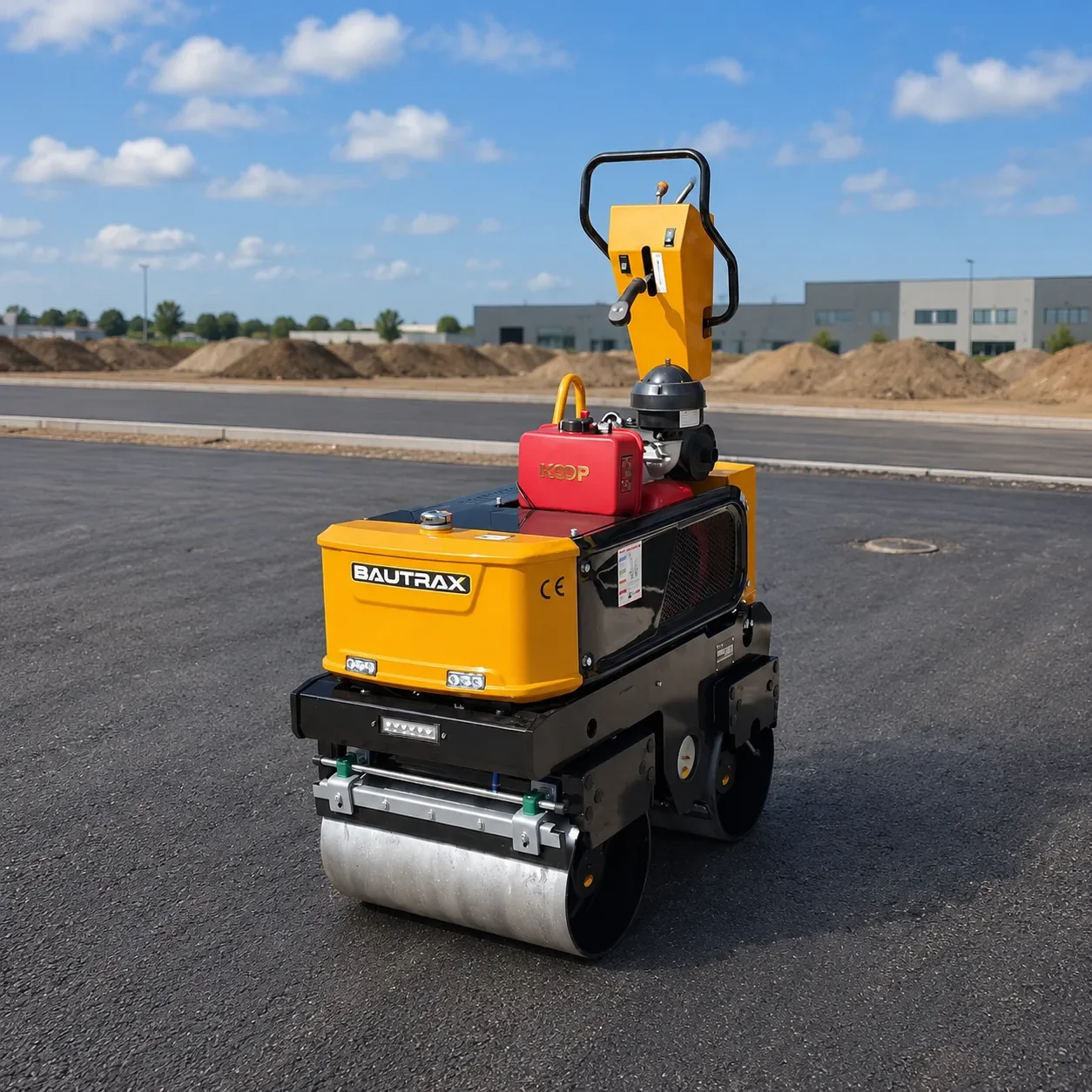

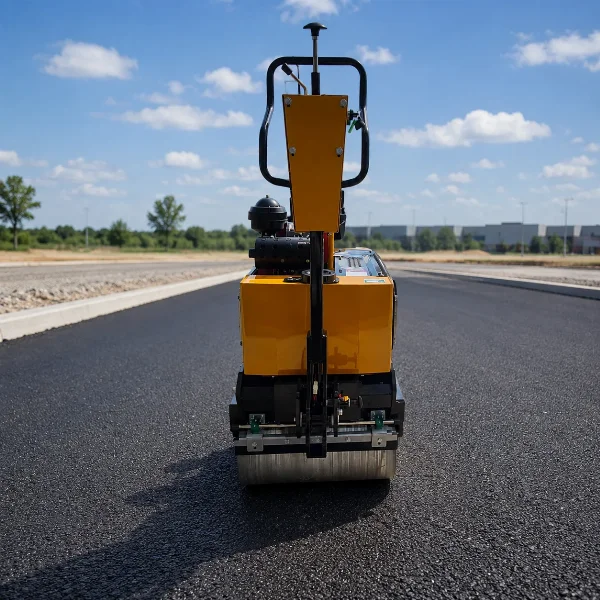

Walk-Behind Roller WBR08 is designed for professional work where compact size, stable operation and practical functionality are important.
Key highlights include vibration compaction, construction site mobility, professional surface compaction.
Main data:
Travel Speed: 0-4 km/h
Gradeability: 30%
Drive Type: Hydraulic type
Applications:
asphalt compaction
base preparation
road and infrastructure works
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 800 kg |
| Gradeability | 30% |
| Travel Speed | 0-4 km/h |
| Hydraulic Oil Tank | 20 L |
| Overall Dimensions (L×W×H) | 1290 × 680 × 1730 mm |
| Drive Type | Hydraulic |
| Vibration Type | Electromagnetic |
| Vibration Frequency | 70 Hz |
| Engine Type | KOOP Diesel 192F Euro 5 |
| Starting Mode | Hand and Electric |
| Water Tank | 26 L |
| Exciting Force | 20 kN |
| Power | 9 HP |

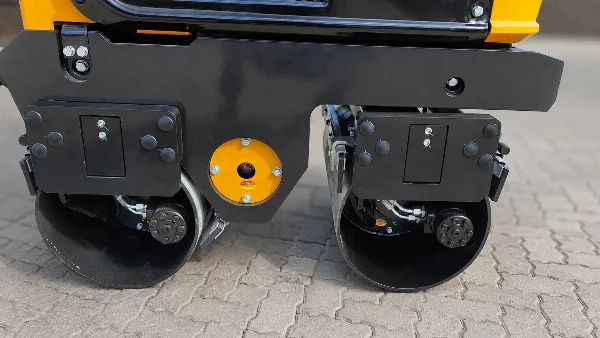

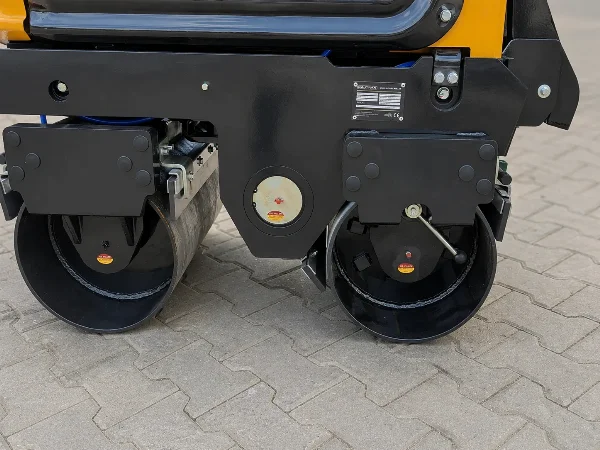

| Steel Drum Size | φ350 × 630 mm × 2 |
| Static Linear Load | 75 N/cm |
| Nominal Amplitude | 0.5 mm |
| Parameter | Value |
|---|---|
| Weight | 800 kg |
| Gradeability | 30% |
| Travel Speed | 0-4 km/h |
| Hydraulic Oil Tank | 20 L |
| Overall Dimensions (L×W×H) | 1290 × 680 × 1730 mm |
| Drive Type | Hydraulic |
| Vibration Type | Electromagnetic |
| Vibration Frequency | 70 Hz |
| Engine Type | KOOP Diesel 192F Euro 5 |
| Starting Mode | Hand and Electric |
| Parameter | Value |
|---|---|
| Water Tank | 26 L |
| Exciting Force | 20 kN |
| Power | 9 HP |
| Steel Drum Size | φ350 × 630 mm × 2 |
| Static Linear Load | 75 N/cm |
| Nominal Amplitude | 0.5 mm |
