Description

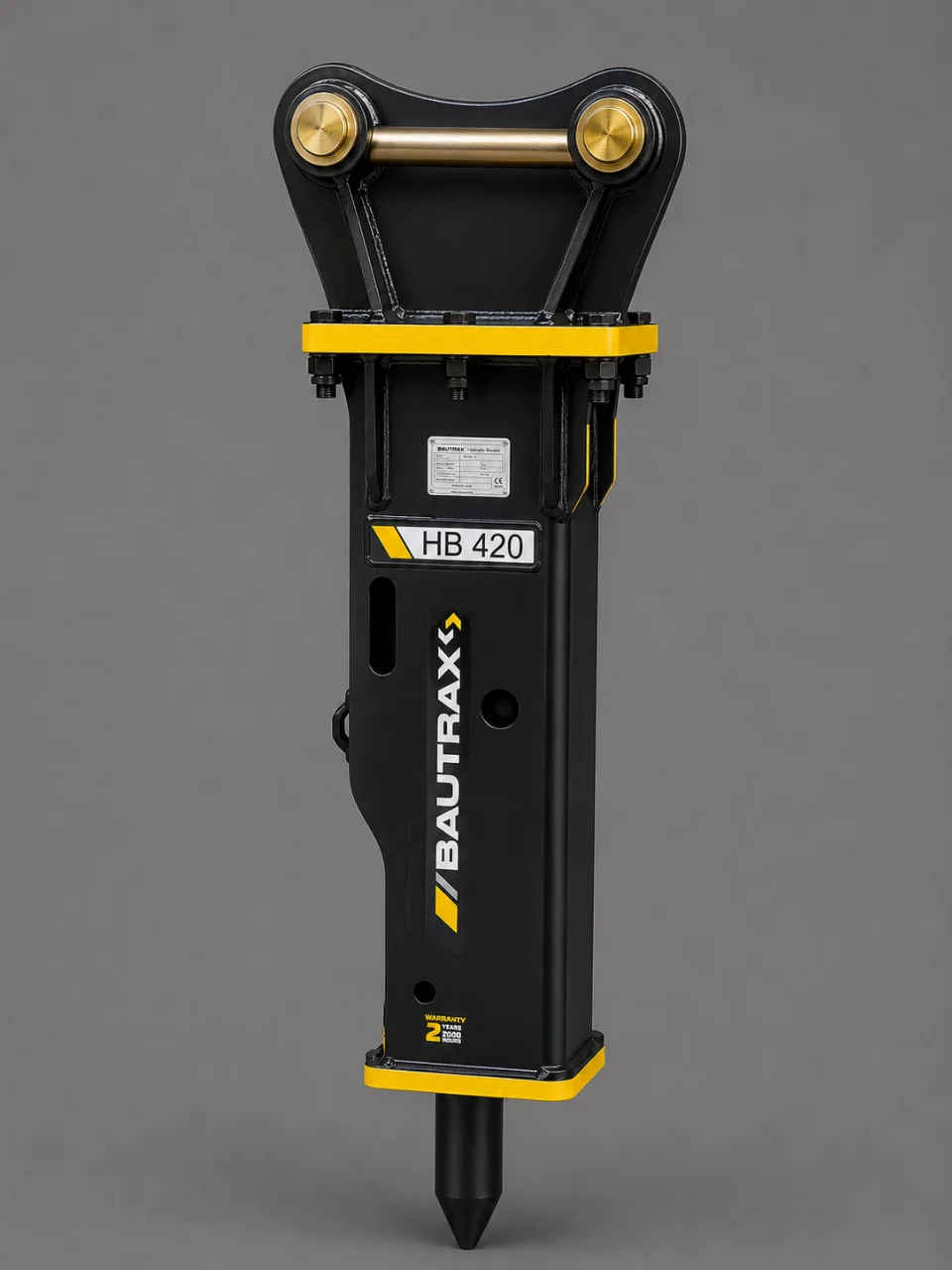

BAUTRAX HB420E is a hydraulic breaker for carriers in the 6–9 t class, built for heavy demolition, foundations, road works and breaking reinforced concrete and rock. It delivers an impact rate of 400–800 bpm through a 80 mm working tool, matched to a hydraulic flow of 70–105 L/min at 130–150 bar.
A side through-bolt construction keeps the breaker easy to service and output consistent shift after shift.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 597 kg |
| Hydraulic Flow | 70–105 L/min |
| Application | Carriers 6–9 t; heavy demolition, foundations, road works and breaking reinforced concrete and rock |
| Color | yellow/black |
| Tool Diameter | 80 mm |
| Impact Rate | 400–800 bpm |
| Operating Pressure | 130–150 bar |
| Carrier Weight | 6–9 t |
| Nitrogen Charge Pressure | 16.5 bar |
| Hose Diameter | 3/4" |
| Mounting Type | Top mount |
| Parameter | Value |
|---|---|
| Weight | 597 kg |
| Hydraulic Flow | 70–105 L/min |
| Application | Carriers 6–9 t; heavy demolition, foundations, road works and breaking reinforced concrete and rock |
| Color | yellow/black |
| Tool Diameter | 80 mm |
| Impact Rate | 400–800 bpm |
| Operating Pressure | 130–150 bar |
| Carrier Weight | 6–9 t |
| Nitrogen Charge Pressure | 16.5 bar |
| Hose Diameter | 3/4" |
| Parameter | Value |
|---|---|
| Mounting Type | Top mount |
