Description

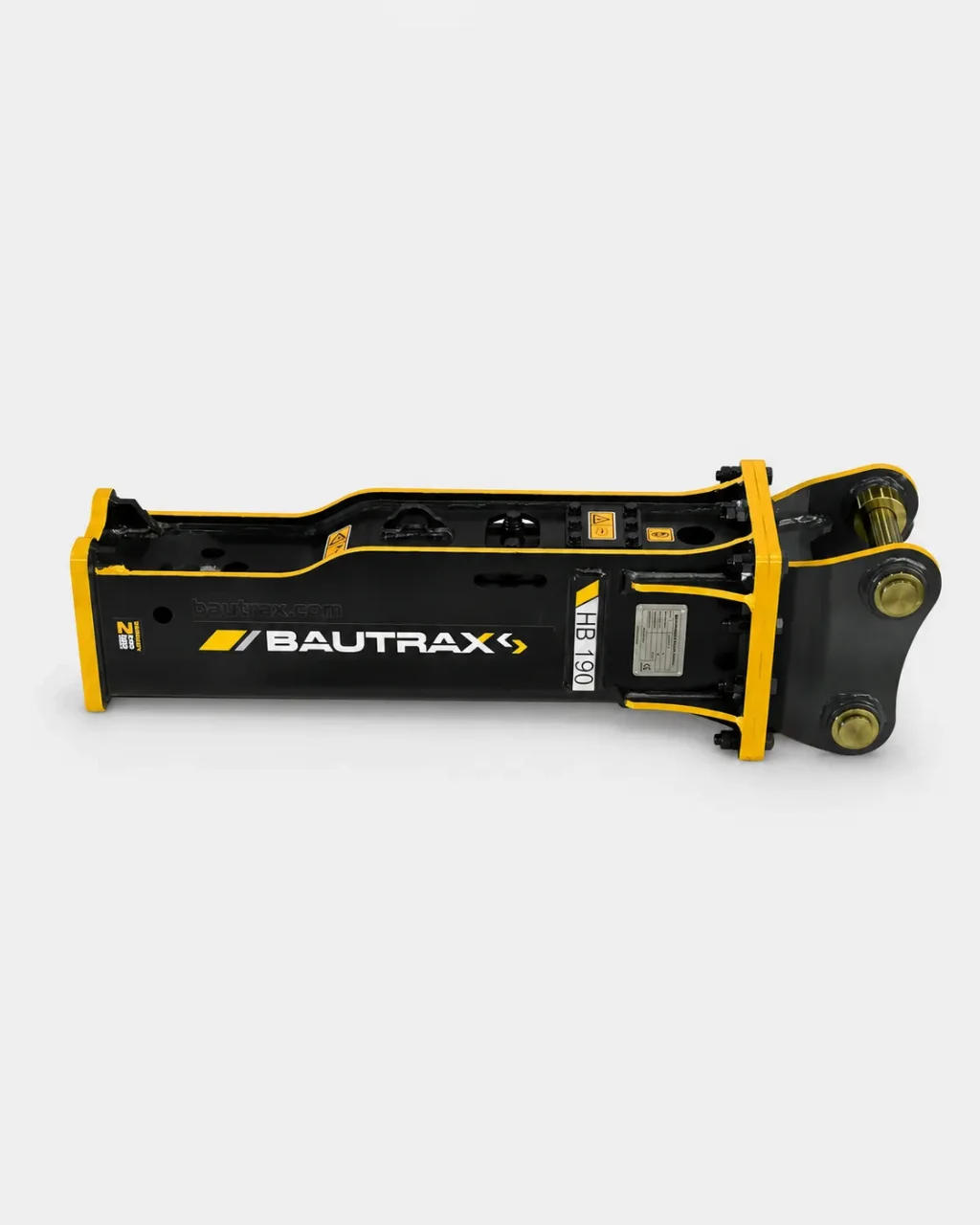

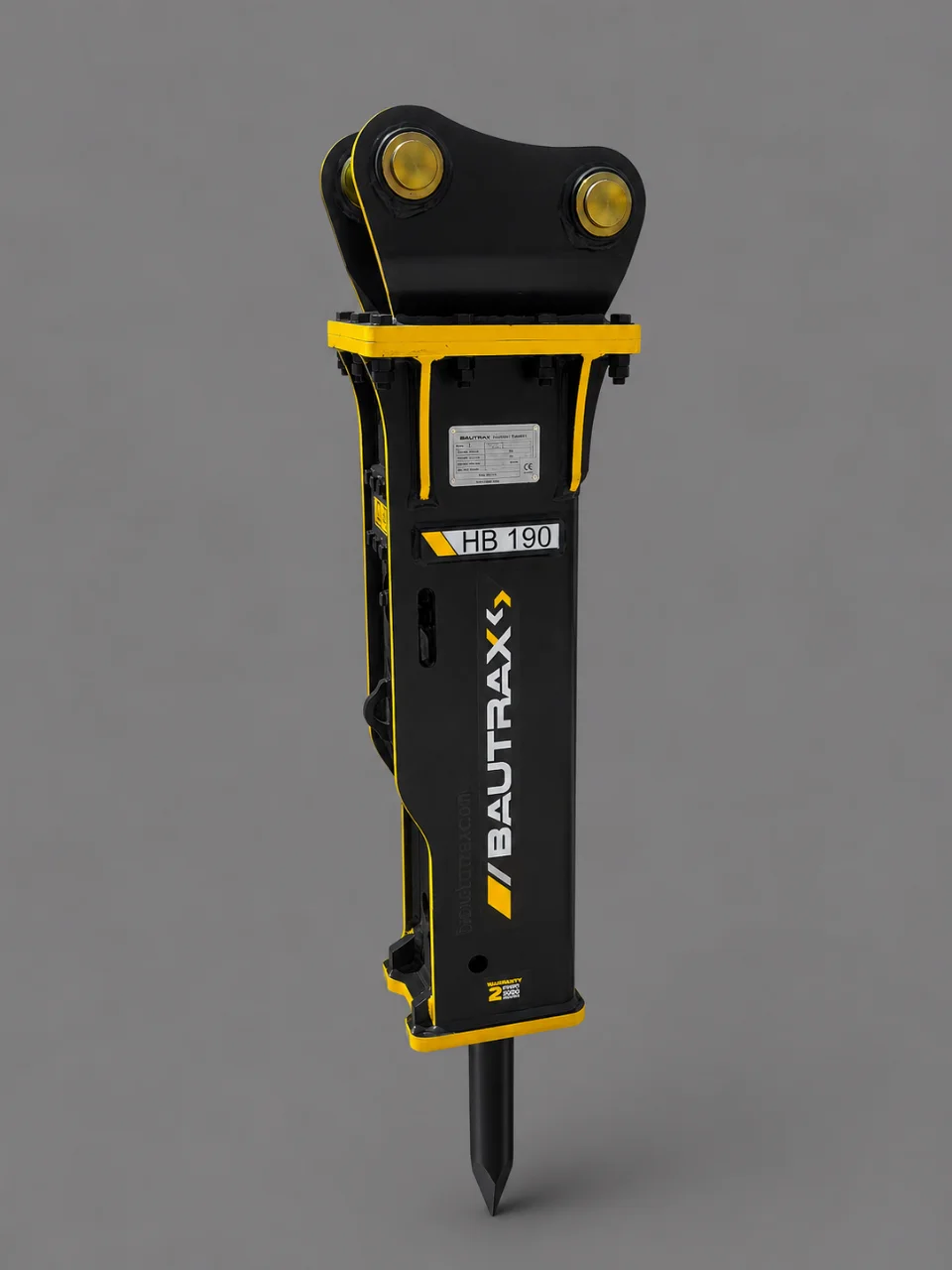

BAUTRAX HB190E is a hydraulic breaker for carriers in the 2.5–4.5 t class, built for demolition, trenching and breaking concrete, asphalt and rock. It delivers an impact rate of 600–1100 bpm through a 53 mm working tool, matched to a hydraulic flow of 25–50 L/min at 90–120 bar.
A side through-bolt construction keeps the breaker easy to service and output consistent shift after shift.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 189 kg |
| Hydraulic Flow | 25–50 L/min |
| Application | Carriers 2.5–4.5 t; demolition, trenching and breaking concrete, asphalt and rock |
| Color | yellow/black |
| Tool Diameter | 53 mm |
| Impact Rate | 600–1100 bpm |
| Operating Pressure | 90–120 bar |
| Carrier Weight | 2.5–4.5 t |
| Nitrogen Charge Pressure | 16.5 bar |
| Hose Diameter | 1/2" |
| Mounting Type | Top mount |
| Parameter | Value |
|---|---|
| Weight | 189 kg |
| Hydraulic Flow | 25–50 L/min |
| Application | Carriers 2.5–4.5 t; demolition, trenching and breaking concrete, asphalt and rock |
| Color | yellow/black |
| Tool Diameter | 53 mm |
| Impact Rate | 600–1100 bpm |
| Operating Pressure | 90–120 bar |
| Carrier Weight | 2.5–4.5 t |
| Nitrogen Charge Pressure | 16.5 bar |
| Hose Diameter | 1/2" |
| Parameter | Value |
|---|---|
| Mounting Type | Top mount |
