Hydraulic Breaker BAUTRAX HB2100E

Name: Hydraulic Breaker BAUTRAX HB2100E
Brand: Bautrax
SKU: BAUTRAX-HB2100E
Price: 12900.00 EUR
Availability: InStock

BAUTRAX HB2100E is a hydraulic breaker for 18–26 t carriers, with a 140 mm tool, 350–500 bpm impact rate and 120–180 L/min flow at 160–180 bar. For heavy demolition, foundations, quarrying and primary rock breaking.

Weight:2011 kg

Hydraulic Flow:120–180 L/min

Tool Diameter:140 mm

Impact Rate:350–500 bpm

Operating Pressure:160–180 bar

Carrier Weight:18–26 t

Nitrogen Charge Pressure:16.5 bar

Mounting Type:Top mount

€12 900 / 25 230 BGN

Need help?

Do not hesitate to contact us. We are available to answer your questions.

+359 87 988 4444

Do not hesitate to contact us. We are available to answer your questions.

Description & specifications

BAUTRAX-HB2100E

Description

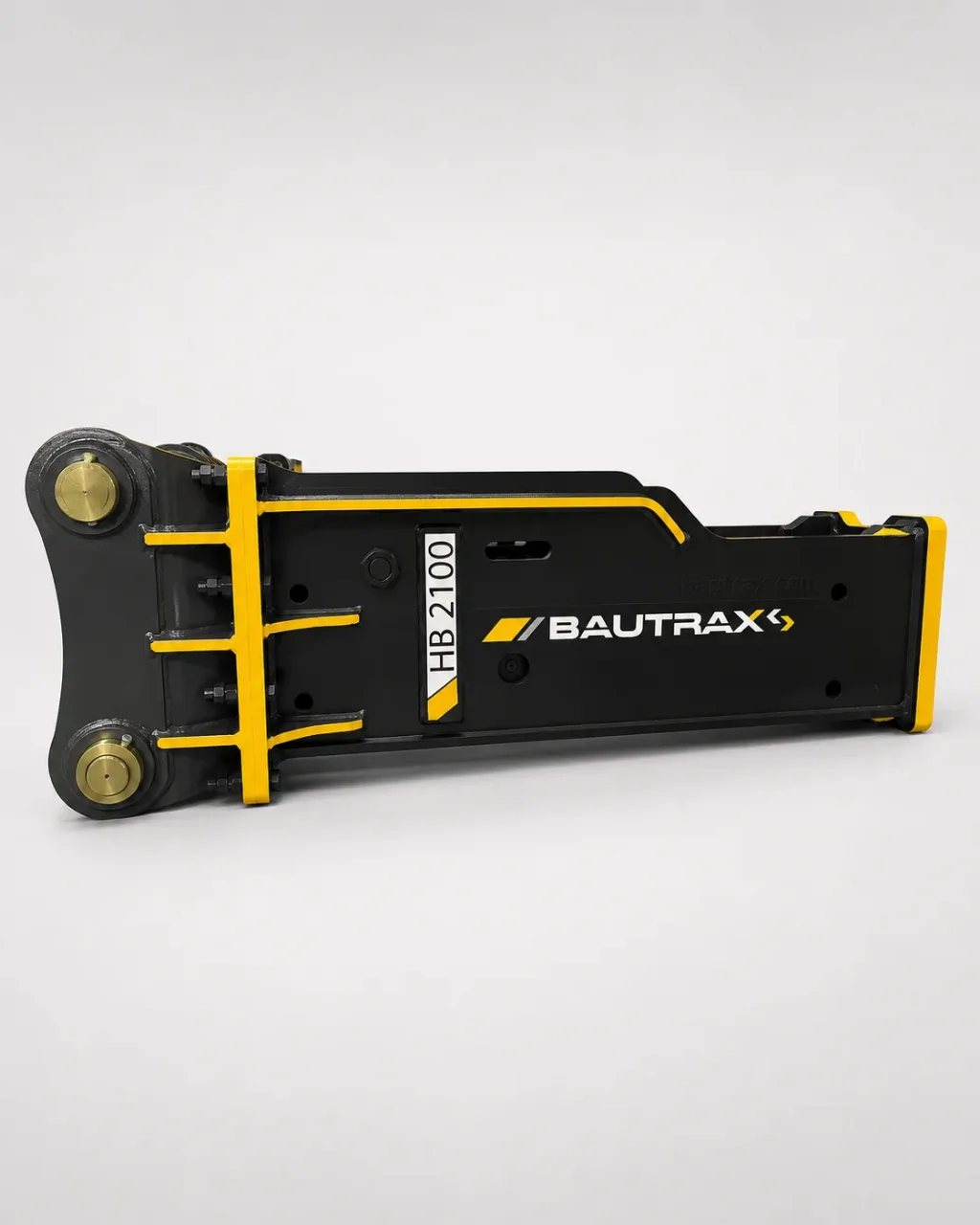

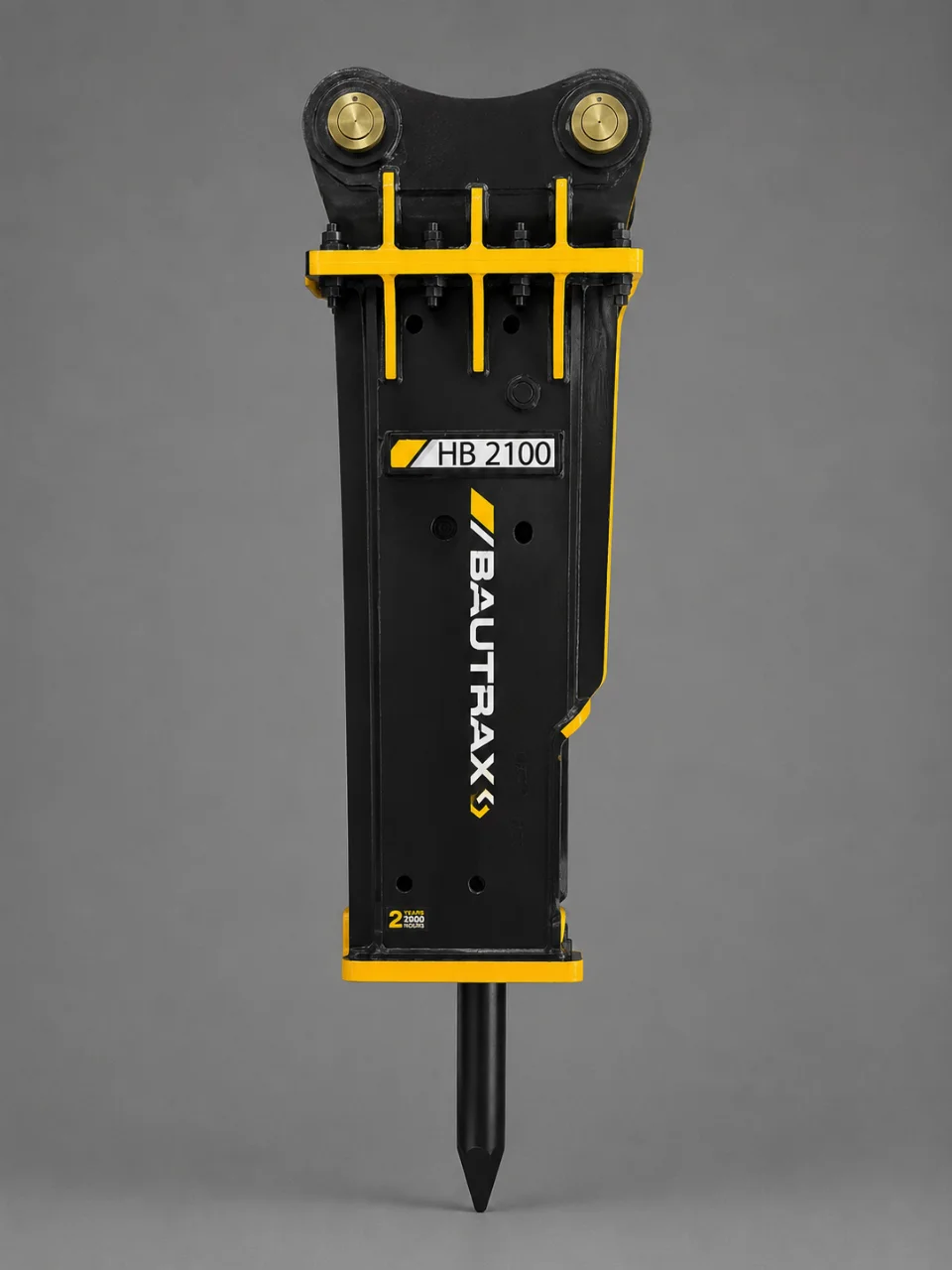

BAUTRAX HB2100E is a hydraulic breaker for carriers in the 18–26 t class, built for heavy demolition, foundations, quarrying and primary rock breaking. It delivers an impact rate of 350–500 bpm through a 140 mm working tool, matched to a hydraulic flow of 120–180 L/min at 160–180 bar.

A side through-bolt construction keeps the breaker easy to service and output consistent shift after shift.

Technical specifications

Parameter	Value
Weight	2011 kg
Hydraulic Flow	120–180 L/min
Application	Carriers 18–26 t; heavy demolition, foundations, quarrying and primary rock breaking
Color	yellow/black
Tool Diameter	140 mm
Impact Rate	350–500 bpm
Operating Pressure	160–180 bar
Carrier Weight	18–26 t
Nitrogen Charge Pressure	16.5 bar
Hose Diameter	1"
Mounting Type	Top mount

Parameter	Value
Weight	2011 kg
Hydraulic Flow	120–180 L/min
Application	Carriers 18–26 t; heavy demolition, foundations, quarrying and primary rock breaking
Color	yellow/black
Tool Diameter	140 mm
Impact Rate	350–500 bpm
Operating Pressure	160–180 bar
Carrier Weight	18–26 t
Nitrogen Charge Pressure	16.5 bar
Hose Diameter	1"
