Description

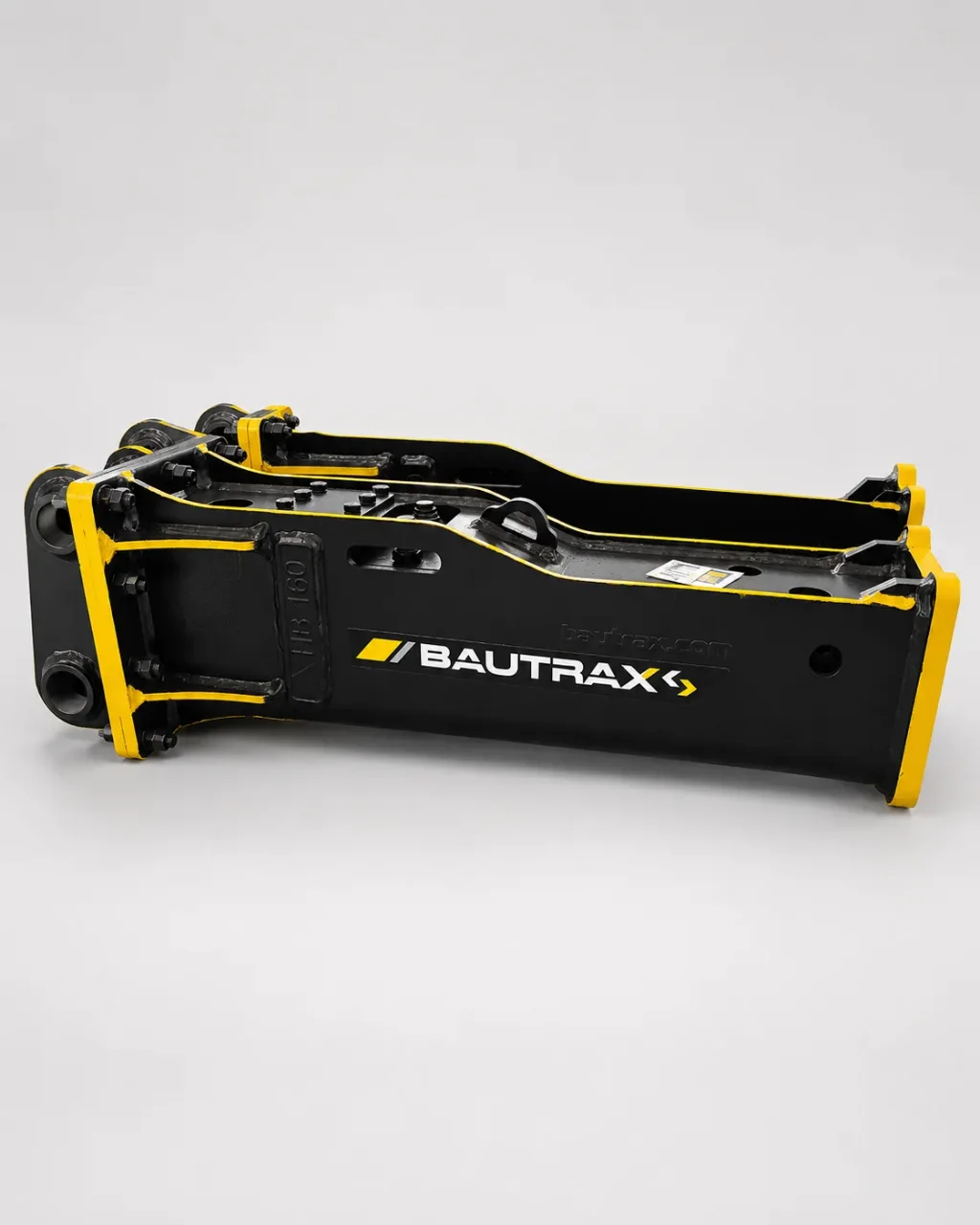

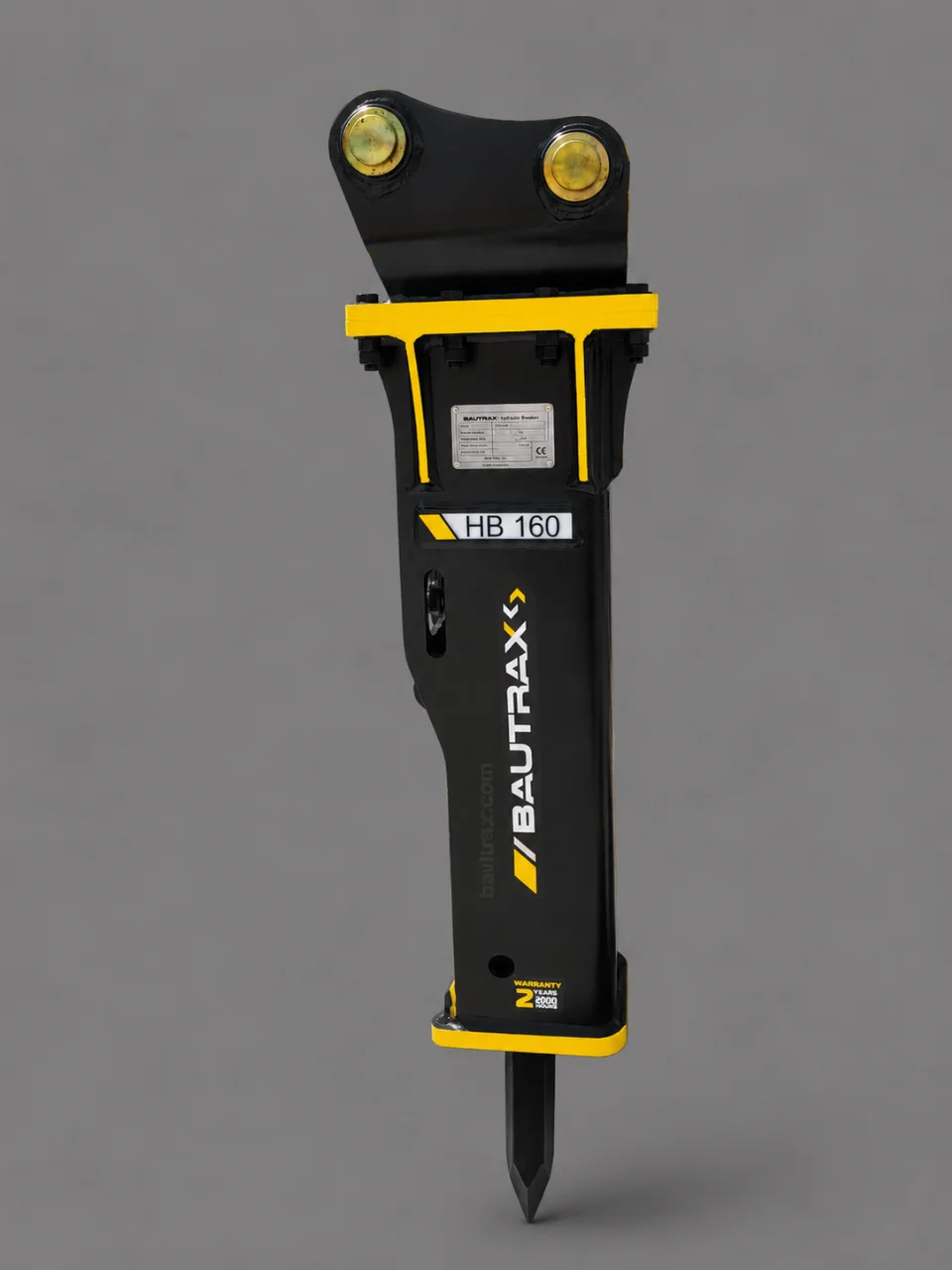

BAUTRAX HB160E is a hydraulic breaker for carriers in the 1.2–3 t class, built for trenching, foundation work, demolition and breaking concrete and rock. It delivers an impact rate of 700–1200 bpm through a 45 mm working tool, matched to a hydraulic flow of 20–30 L/min at 90–120 bar.
A side through-bolt construction keeps the breaker easy to service and output consistent shift after shift.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 155 kg |
| Hydraulic Flow | 20–30 L/min |
| Application | Carriers 1.2–3 t; trenching, foundation work, demolition and breaking concrete and rock |
| Color | yellow/black |
| Tool Diameter | 45 mm |
| Impact Rate | 700–1200 bpm |
| Operating Pressure | 90–120 bar |
| Carrier Weight | 1.2–3 t |
| Nitrogen Charge Pressure | 16.5 bar |
| Hose Diameter | 1/2" |
| Mounting Type | Top mount |
| Parameter | Value |
|---|---|
| Weight | 155 kg |
| Hydraulic Flow | 20–30 L/min |
| Application | Carriers 1.2–3 t; trenching, foundation work, demolition and breaking concrete and rock |
| Color | yellow/black |
| Tool Diameter | 45 mm |
| Impact Rate | 700–1200 bpm |
| Operating Pressure | 90–120 bar |
| Carrier Weight | 1.2–3 t |
| Nitrogen Charge Pressure | 16.5 bar |
| Hose Diameter | 1/2" |
| Parameter | Value |
|---|---|
| Mounting Type | Top mount |
