Description

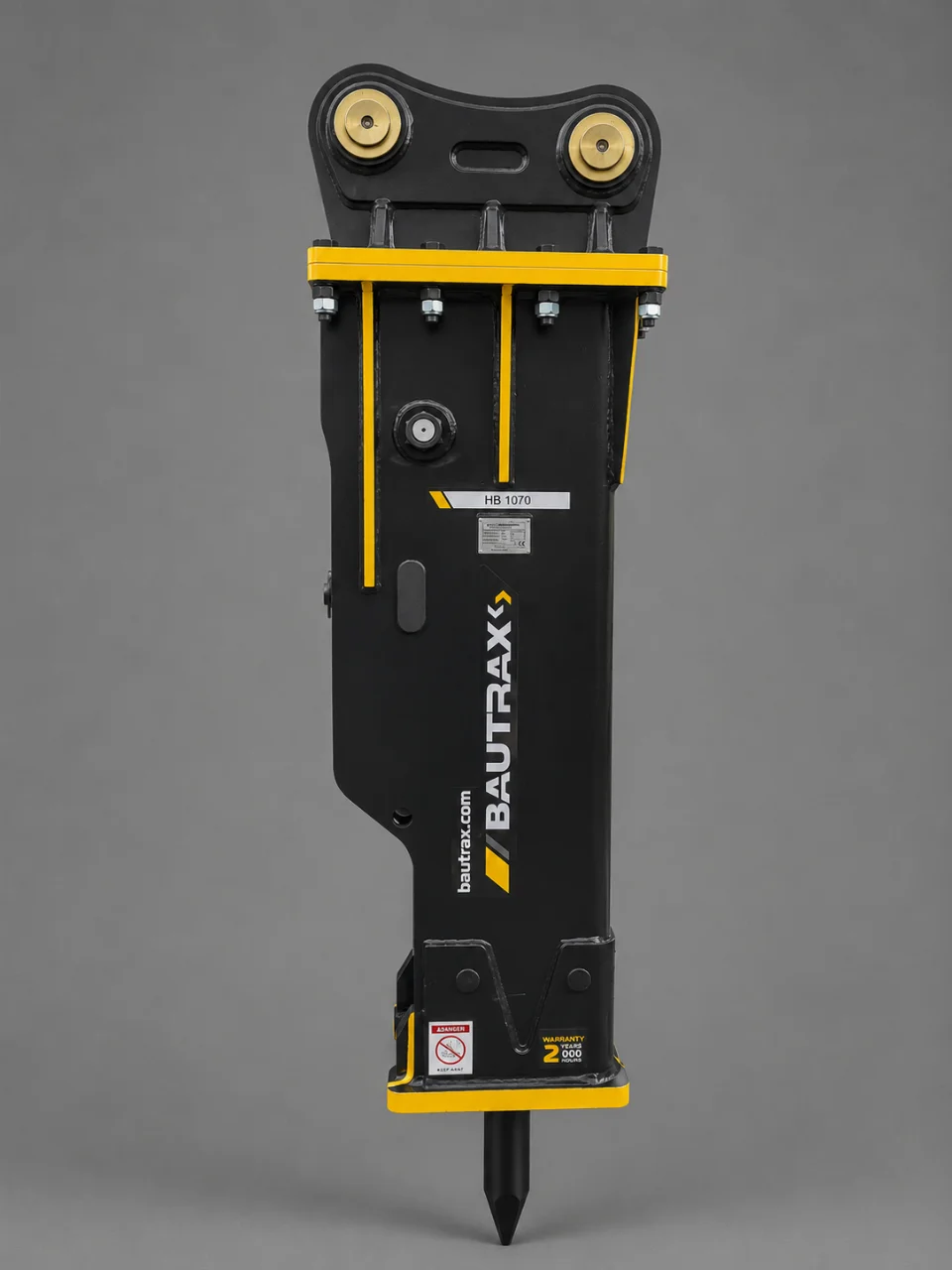

BAUTRAX HB1070 is a hydraulic breaker for carriers in the 21–25 t class, built for heavy demolition, foundations, quarrying and primary rock breaking. It delivers an impact rate of 350–500 bpm through a 140 mm working tool, matched to a hydraulic flow of 130–190 L/min at 170–190 bar.
A side through-bolt construction keeps the breaker easy to service and output consistent shift after shift.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 1851 kg |
| Hydraulic Flow | 130–190 L/min |
| Application | Carriers 21–25 t; heavy demolition, foundations, quarrying and primary rock breaking |
| Color | yellow/black |
| Tool Diameter | 140 mm |
| Impact Rate | 350–500 bpm |
| Operating Pressure | 170–190 bar |
| Carrier Weight | 21–25 t |
| Hose Diameter | 1" |
| Noise Level | 118 dB |
| Mounting Type | Top mount |
| Parameter | Value |
|---|---|
| Weight | 1851 kg |
| Hydraulic Flow | 130–190 L/min |
| Application | Carriers 21–25 t; heavy demolition, foundations, quarrying and primary rock breaking |
| Color | yellow/black |
| Tool Diameter | 140 mm |
| Impact Rate | 350–500 bpm |
| Operating Pressure | 170–190 bar |
| Carrier Weight | 21–25 t |
| Hose Diameter | 1" |
| Noise Level | 118 dB |
| Parameter | Value |
|---|---|
| Mounting Type | Top mount |
