Description

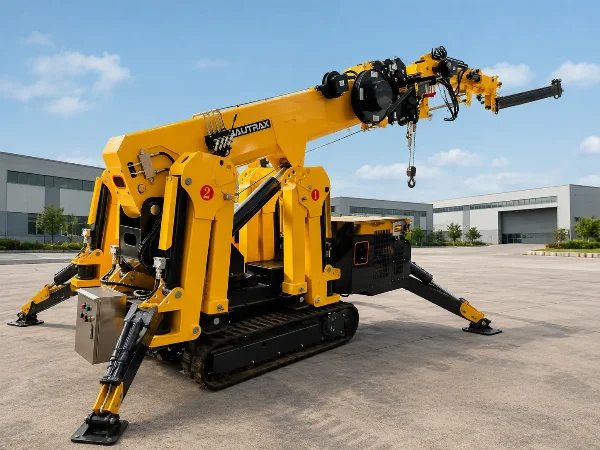

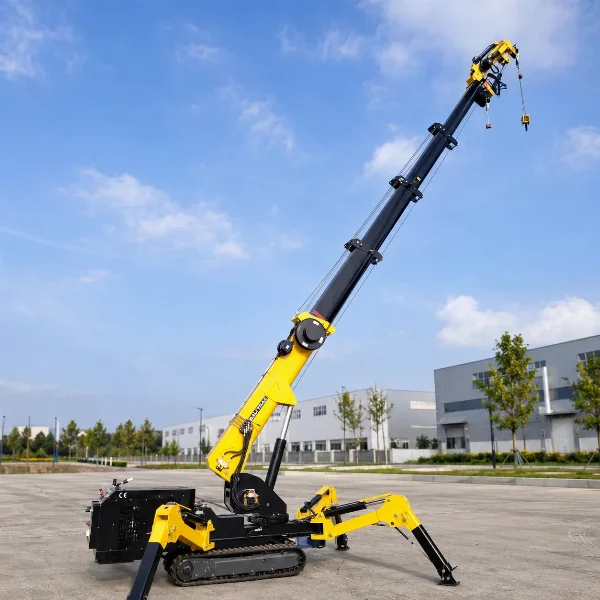

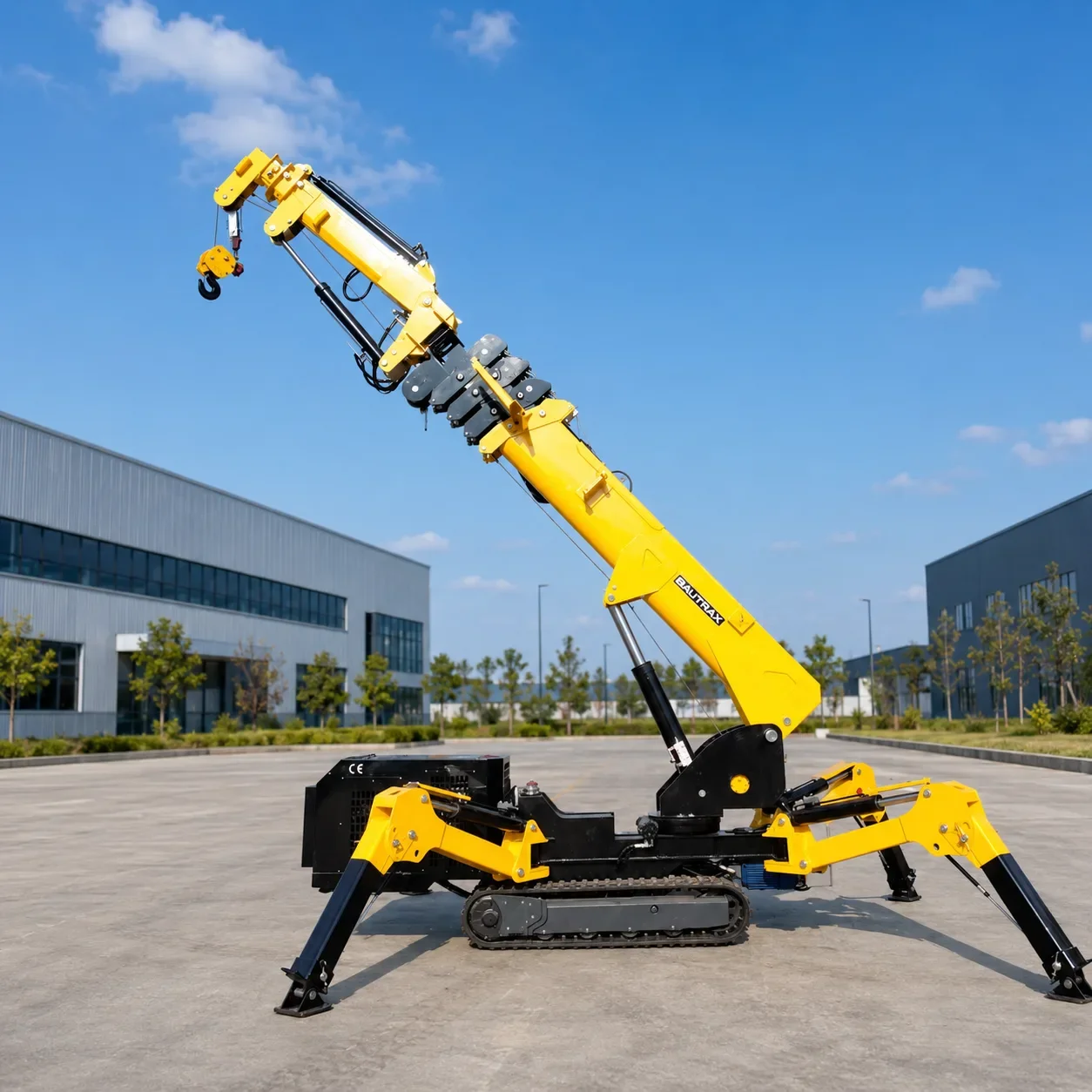

BAUTRAX SPC30 is a spider crane with 3 ton lifting capacity, a maximum operating radius of 10.5 m and maximum ground lift of 10.8 m. Its transport width of 0.8 m supports access through compatible narrow routes before the outriggers are deployed.
The crane uses Changchai EV80 / F195 power with electric starting and hydraulic motor travel drive. Its 2.4 m × 6-section boom extends from 3.1 to 9.2 m in 20 seconds, while continuous 360° rotation is completed in 60 seconds.

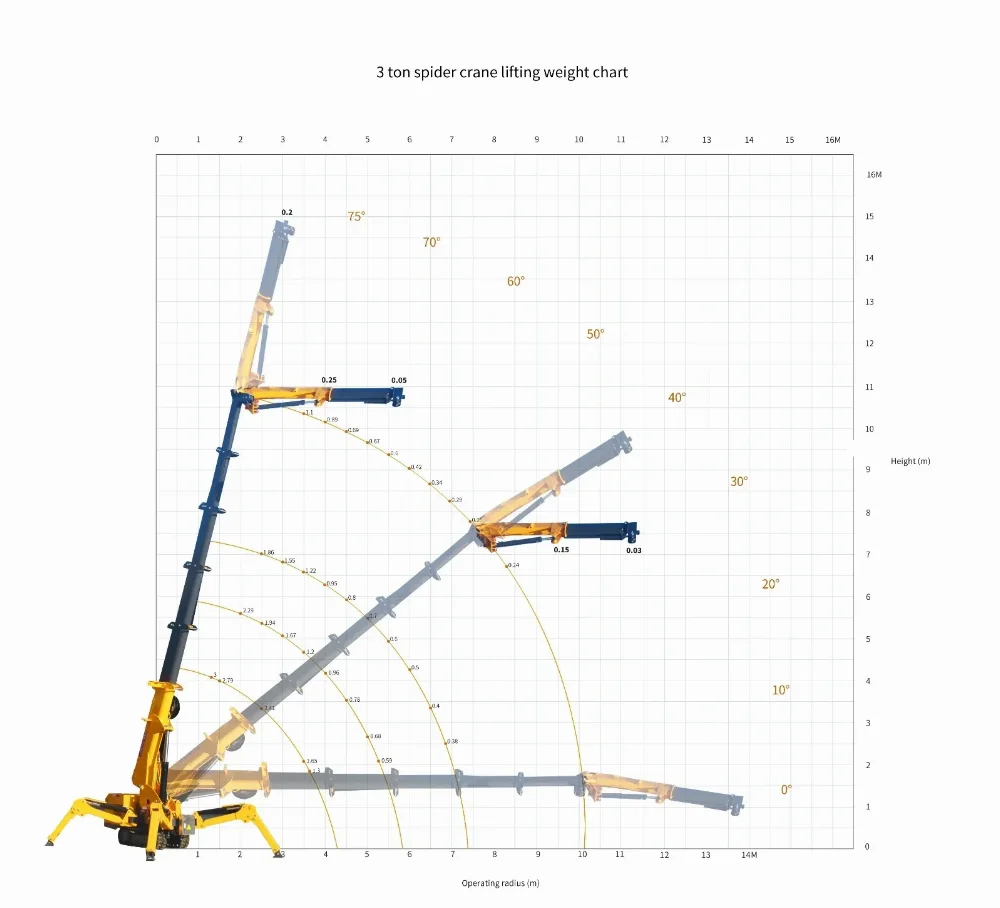

Lifting capacity: 3 ton
Maximum operating radius: 10.5 m
Maximum ground lift: 10.8 m
Hook lifting speed: 0–8 m/min with 4 ropes
Walking speed: 0–2.5 km/h
Gradeability: 25° (36%)
Dead weight: 2700 kg

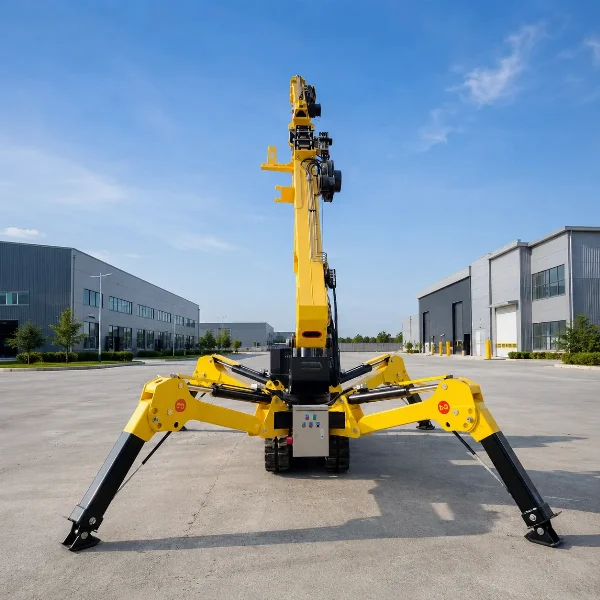

Application: Suitable for installation and lifting work in confined areas where compact transport dimensions, outriggers and continuous rotation are required. The maximum deployed footprint is 4300 × 3700 × 4300 mm.

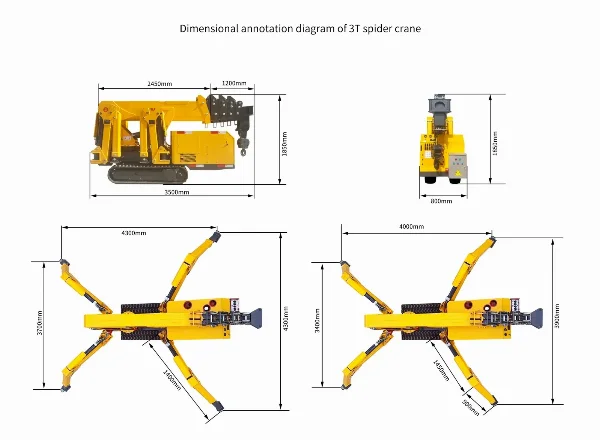

The transport dimensions are 3.5 × 0.8 × 1.85 m. Standard configuration: diesel and AC.
Technical specifications
| Parameter | Value |
|---|---|
| Gradeability | 25° (36%) |
| Engine Brand | Changchai |
| Engine Type | EV80 / F195 |
| Starting Mode | Electric start |
| Lift Capacity | 3 ton |
| Maximum Operating Radius | 10.5 m |
| Maximum Ground Lift | 10.8 m |
| Hook Lifting Speed | 0–8 m/min (4 ropes) |
| Steel Rope Specification | Φ8 mm × 45 m |
| Boom Form | 2.4 m × 6-section lifting arm |
| Boom Length / Time | 3.1–9.2 m / 20 sec |
| Rotation Angle / Speed | 0–360° continuous / 60 sec |
| Outrigger Movement Form | Manual screw out + oil pressure automatic support (two legs) |
| Maximum Extension Amplitude | 4300 × 3700 × 4300 mm |
| Walking Mode | Hydraulic motor drive |
| Fuel / Volume | Diesel oil / 8 L |

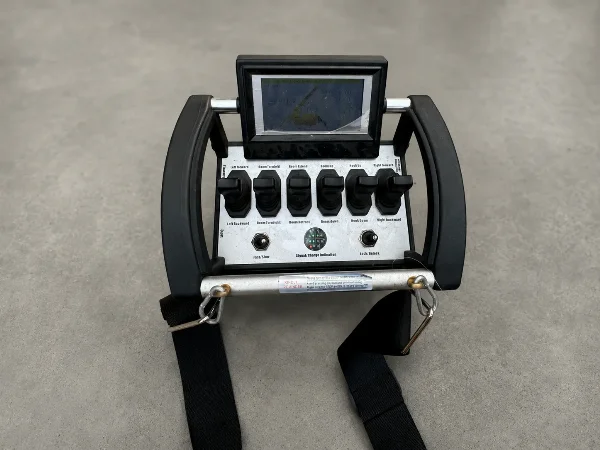

| Operation Type | Manual operation and walking |
| Standard Configuration | Diesel and AC |
| Folding Size | 3.5 × 0.8 × 1.85 m |
| Dead Weight | 2700 kg |
| Walking Speed | 0–2.5 km/h |
| Parameter | Value |
|---|---|
| Gradeability | 25° (36%) |
| Engine Brand | Changchai |
| Engine Type | EV80 / F195 |
| Starting Mode | Electric start |
| Lift Capacity | 3 ton |
| Maximum Operating Radius | 10.5 m |
| Maximum Ground Lift | 10.8 m |
| Hook Lifting Speed | 0–8 m/min (4 ropes) |
| Steel Rope Specification | Φ8 mm × 45 m |
| Boom Form | 2.4 m × 6-section lifting arm |
| Parameter | Value |
|---|---|
| Boom Length / Time | 3.1–9.2 m / 20 sec |
| Rotation Angle / Speed | 0–360° continuous / 60 sec |
| Outrigger Movement Form | Manual screw out + oil pressure automatic support (two legs) |
| Maximum Extension Amplitude | 4300 × 3700 × 4300 mm |
| Walking Mode | Hydraulic motor drive |
| Fuel / Volume | Diesel oil / 8 L |
| Operation Type | Manual operation and walking |
| Standard Configuration | Diesel and AC |
| Folding Size | 3.5 × 0.8 × 1.85 m |
| Dead Weight | 2700 kg |
| Parameter | Value |
|---|---|
| Walking Speed | 0–2.5 km/h |
