Description

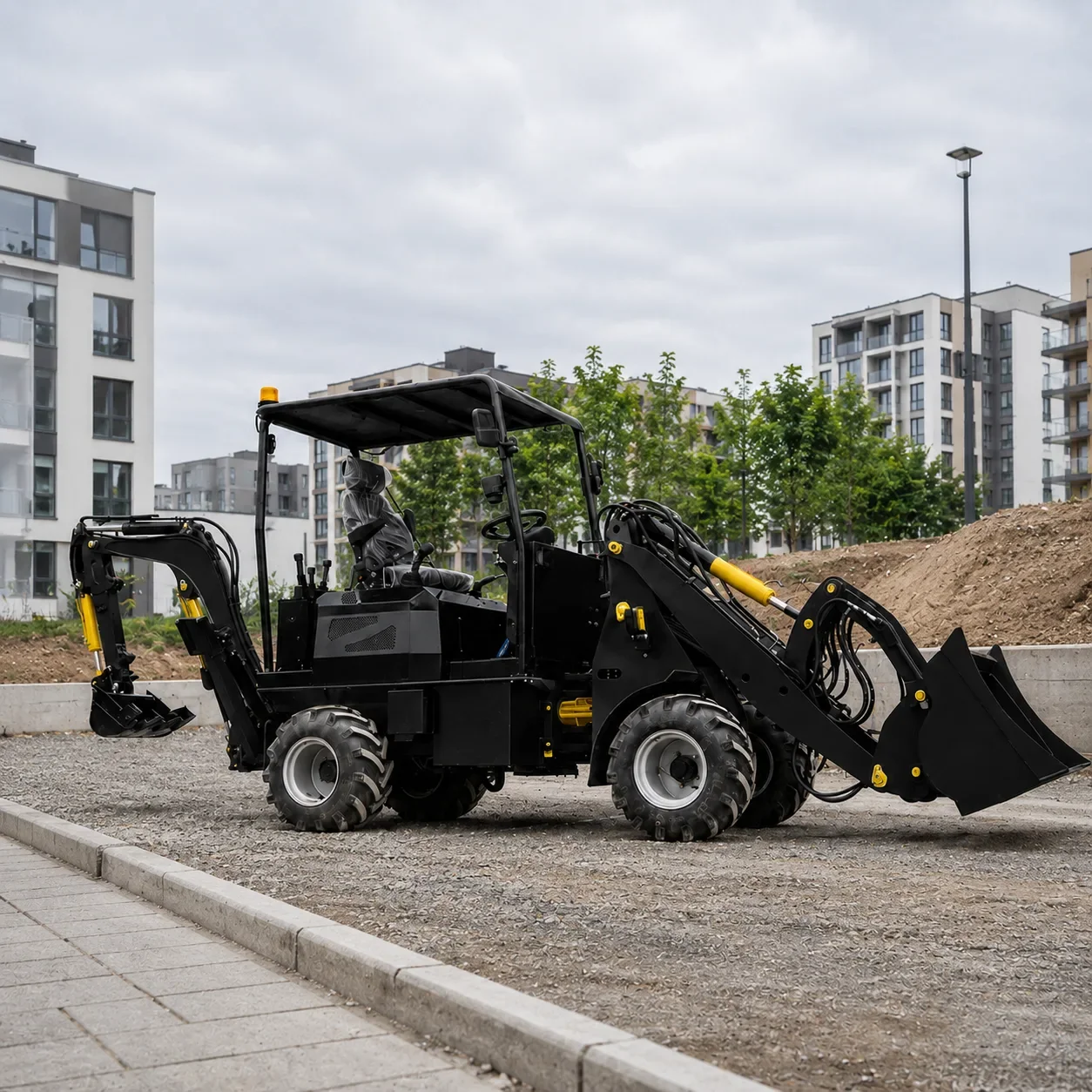

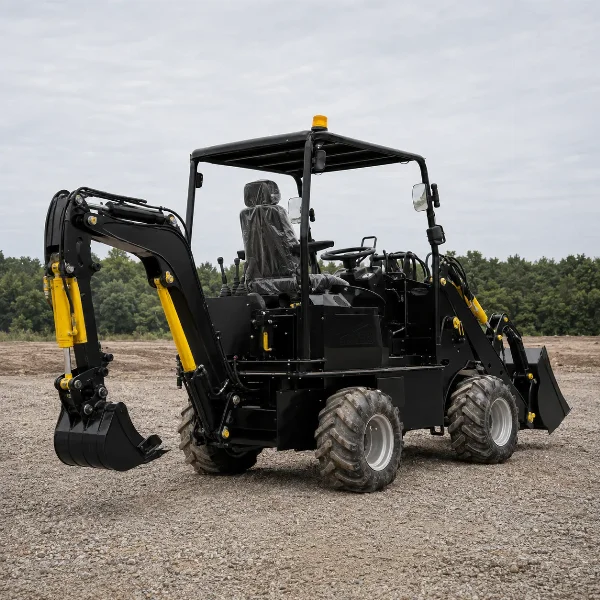

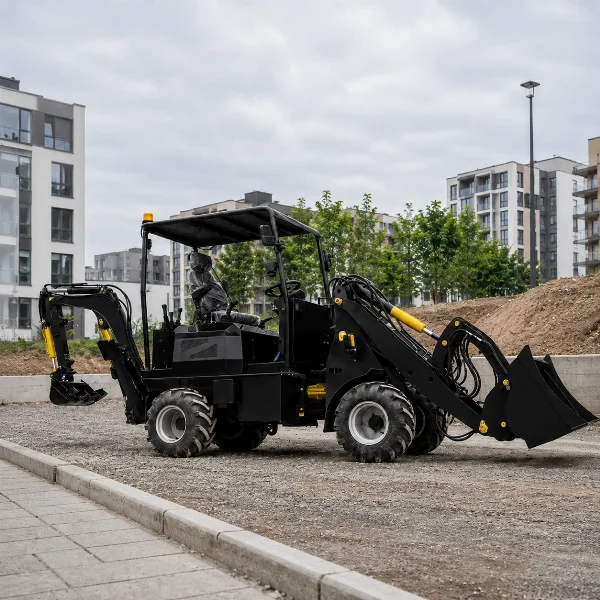

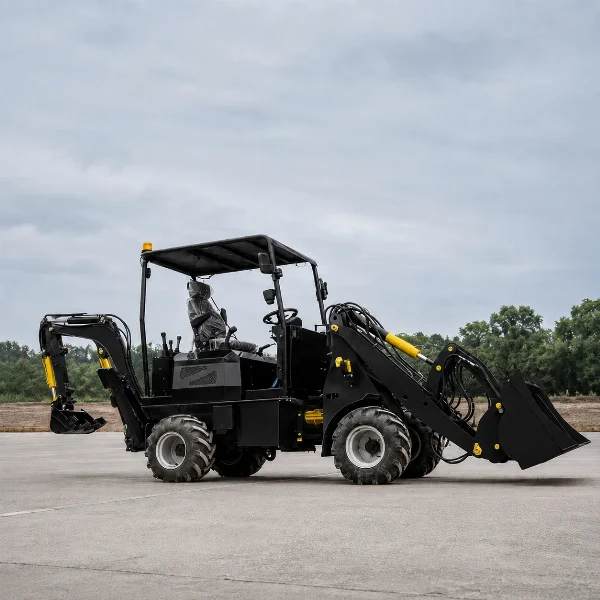

BAUTRAX MBH06HL is a compact backhoe loader combining a front loader and a rear backhoe, suited to municipal work, site maintenance, earthworks in tight spaces, yards and infrastructure tasks where manoeuvrability and a small transport footprint matter.
It runs a Kubota D1105 3-cylinder water-cooled diesel (18.4 kW), weighs 2380 kg and offers a 0.30 m³ loader bucket and a 0.04 m³ backhoe bucket. Digging depth reaches 1643 mm with a 2863 mm reach; minimum turning radius is just 2540 mm and travel speed 0–6 km/h.
Need a full-size machine? The BAUTRAX BLX90 is the full backhoe loader in the same range.

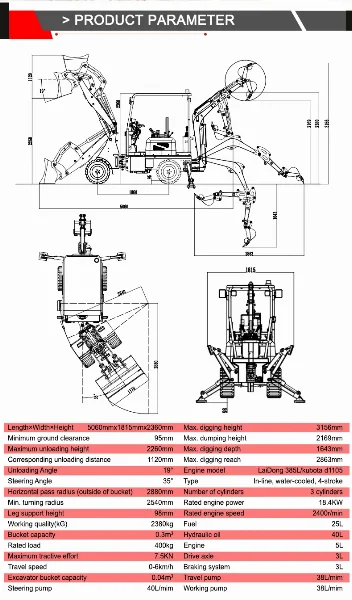

Technical specifications
| Parameter | Value |
|---|---|
| Weight | 2380 kg |
| Engine Brand | Kubota |
| Engine Model | Kubota D1105 |
| Engine Power | 18.4 kW @ 2400 rpm |
| Bucket Capacity | loader 0.30 m³ / backhoe 0.04 m³ |
| Travel Speed | 0–6 km/h |
| Fuel Tank | 25 L |
| Rated Payload | 400 kg |
| Traction Force | 7.5 kN |
| Overall Dimensions (L×W×H) | 5060 × 1815 × 2360 mm |
| Power Type | Diesel |
| Turning Radius | 2540 mm (min.) |
| Max. Digging Depth | 1643 mm |
| Max. Loading Height | 2169 mm |
| Max. Reach from Swing Center | 2863 mm |
| Warranty | 2 years / 2000 motor hours |
| Parameter | Value |
|---|---|
| Weight | 2380 kg |
| Engine Brand | Kubota |
| Engine Model | Kubota D1105 |
| Engine Power | 18.4 kW @ 2400 rpm |
| Bucket Capacity | loader 0.30 m³ / backhoe 0.04 m³ |
| Travel Speed | 0–6 km/h |
| Fuel Tank | 25 L |
| Rated Payload | 400 kg |
| Traction Force | 7.5 kN |
| Overall Dimensions (L×W×H) | 5060 × 1815 × 2360 mm |
| Parameter | Value |
|---|---|
| Power Type | Diesel |
| Turning Radius | 2540 mm (min.) |
| Max. Digging Depth | 1643 mm |
| Max. Loading Height | 2169 mm |
| Max. Reach from Swing Center | 2863 mm |
| Warranty | 2 years / 2000 motor hours |
Gallery
1 / 4
