Description

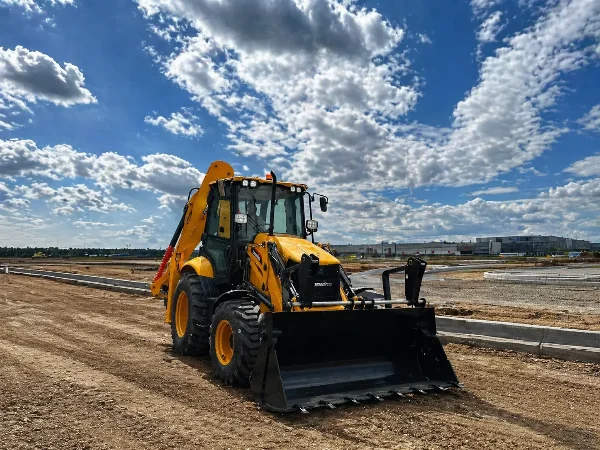

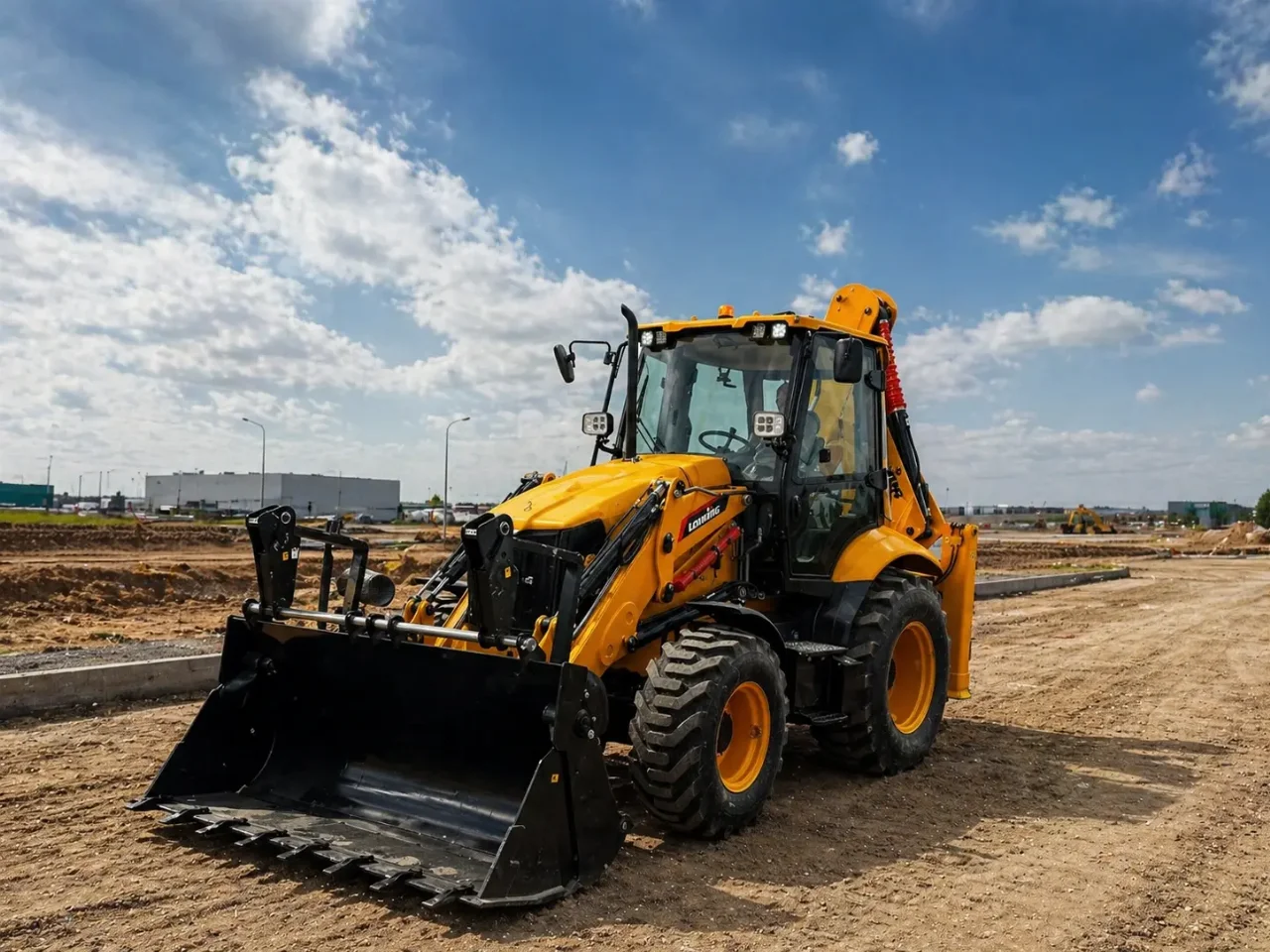

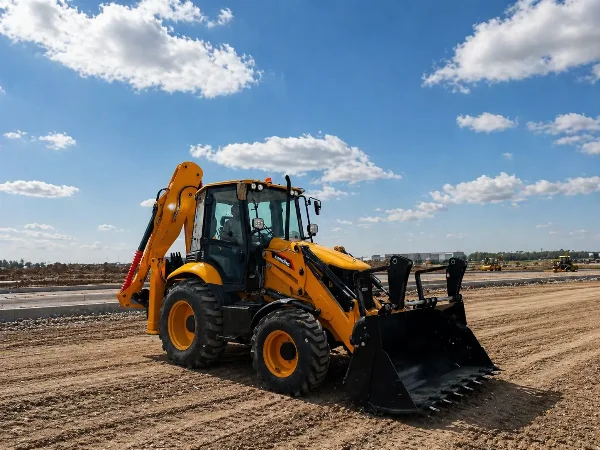

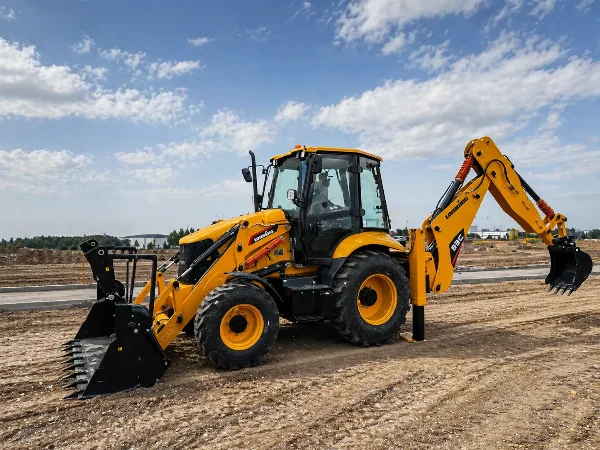

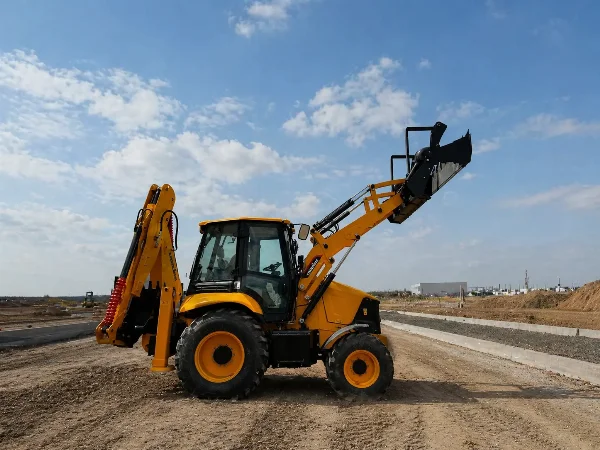

Lonking 83C is a backhoe loader combining a 1.0 m³ front loading bucket and a 0.2 m³ rear excavating bucket. This configuration allows loading, material movement and excavation to be carried out with one 8600 kg machine.
The machine uses a Perkins 1904J-E36TA engine rated at 74.4 kW/2200 rpm and meeting EU Stage V / EPA Tier 4F. A Carraro transmission with four forward and four reverse gears works with Carraro front and rear axles.
Maximum loader digging force: 62 kN
Maximum loader breakout force: 61 kN
Maximum excavator arm digging force: 38 kN
Maximum excavator bucket digging force: 61 kN
Maximum hydraulic flow: 166 L/min
Maximum hydraulic pressure: 27.5 MPa
Fuel capacity: 170 L

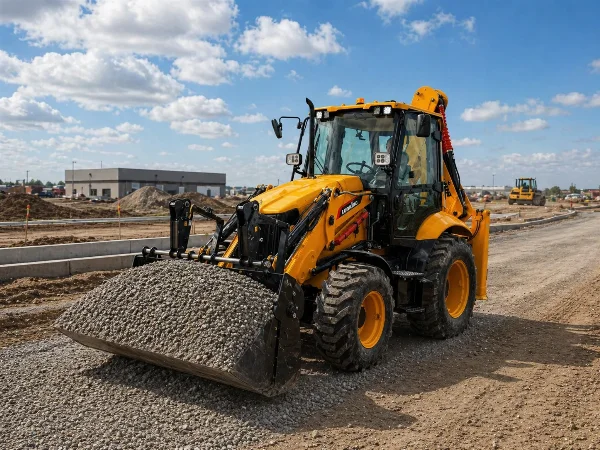

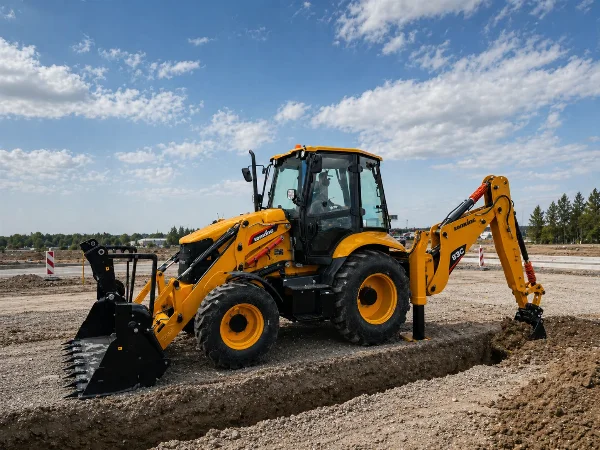

Application: Suitable for construction, infrastructure and utility tasks requiring both front loading and rear excavation. Load-sensitive hydraulic steering and a 38° steering angle support manoeuvring between work positions.
The machine weighs 8600 kg and reaches 39.0 km/h forward and 36.0 km/h in reverse.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 8600 kg |
| Engine Brand | Perkins |
| Engine Model | 1904J-E36TA |
| Engine Power | 74.4 kW/2200 rpm |
| Displacement | 3.621 L |
| Emission Standard | EU Stage V / EPA Tier 4F |
| Max. Traction Force | 74 kN |
| Max. Torque | 450 Nm |
| Standard Loading Bucket Capacity | 1.0 m³ |
| Standard Excavating Bucket Capacity | 0.2 m³ |
| Max. Digging Force - Loader | 62 kN |
| Max. Breakout Force - Loader | 61 kN |
| Max. Arm Digging Force - Excavator | 38 kN |
| Max. Bucket Digging Force - Excavator | 61 kN |
| Transmission Brand and Type | Carraro |
| Gears Forward | 4 |
| Gears Reverse | 4 |
| Max. Forward Speed | 39.0 km/h |
| Max. Reverse Speed | 36.0 km/h |
| Service Brake Type | Wet brake |
| Parking Brake Type | Caliper disc brake |
| Front Axle Brand and Type | Carraro, Steering axle |
| Rear Axle Brand and Type | Carraro, Wet axle |
| Steering Angle | 38° |
| Front Tyre | 16/70 - 20 |
| Rear Tyre | 18.4-28 |
| Front Tyre Pressure | 0.43±0.03 MPa |
| Rear Tyre Pressure | 0.25±0.03 MPa |
| Hydraulic Steering Type | Load sensitive hydraulic steering |
| Hydraulic Max. Flow | 166 L/min |
| Hydraulic Max. Pressure | 27.5 MPa |
| Fuel Capacity | 170 L |
| Hydraulic Oil Capacity | 160 L |
| Engine Oil Capacity | 10 L |
| Transmission Oil Capacity | 19.5 L |
| Antifreeze Capacity | 13.5 L |
| Front Axle Oil Capacity | 9.1 L |
| Rear Axle Oil Capacity | 17.5 L |
| Parameter | Value |
|---|---|
| Weight | 8600 kg |
| Engine Brand | Perkins |
| Engine Model | 1904J-E36TA |
| Engine Power | 74.4 kW/2200 rpm |
| Displacement | 3.621 L |
| Emission Standard | EU Stage V / EPA Tier 4F |
| Max. Traction Force | 74 kN |
| Max. Torque | 450 Nm |
| Standard Loading Bucket Capacity | 1.0 m³ |
| Standard Excavating Bucket Capacity | 0.2 m³ |
| Hydraulic Max. Pressure | 27.5 MPa |
| Engine Oil Capacity | 10 L |
| Front Axle Oil Capacity | 9.1 L |
| Parameter | Value |
|---|---|
| Max. Digging Force - Loader | 62 kN |
| Max. Breakout Force - Loader | 61 kN |
| Max. Arm Digging Force - Excavator | 38 kN |
| Max. Bucket Digging Force - Excavator | 61 kN |
| Transmission Brand and Type | Carraro |
| Gears Forward | 4 |
| Gears Reverse | 4 |
| Max. Forward Speed | 39.0 km/h |
| Max. Reverse Speed | 36.0 km/h |
| Service Brake Type | Wet brake |
| Fuel Capacity | 170 L |
| Transmission Oil Capacity | 19.5 L |
| Rear Axle Oil Capacity | 17.5 L |
| Parameter | Value |
|---|---|
| Parking Brake Type | Caliper disc brake |
| Front Axle Brand and Type | Carraro, Steering axle |
| Rear Axle Brand and Type | Carraro, Wet axle |
| Steering Angle | 38° |
| Front Tyre | 16/70 - 20 |
| Rear Tyre | 18.4-28 |
| Front Tyre Pressure | 0.43±0.03 MPa |
| Rear Tyre Pressure | 0.25±0.03 MPa |
| Hydraulic Steering Type | Load sensitive hydraulic steering |
| Hydraulic Max. Flow | 166 L/min |
| Hydraulic Oil Capacity | 160 L |
| Antifreeze Capacity | 13.5 L |
