Description

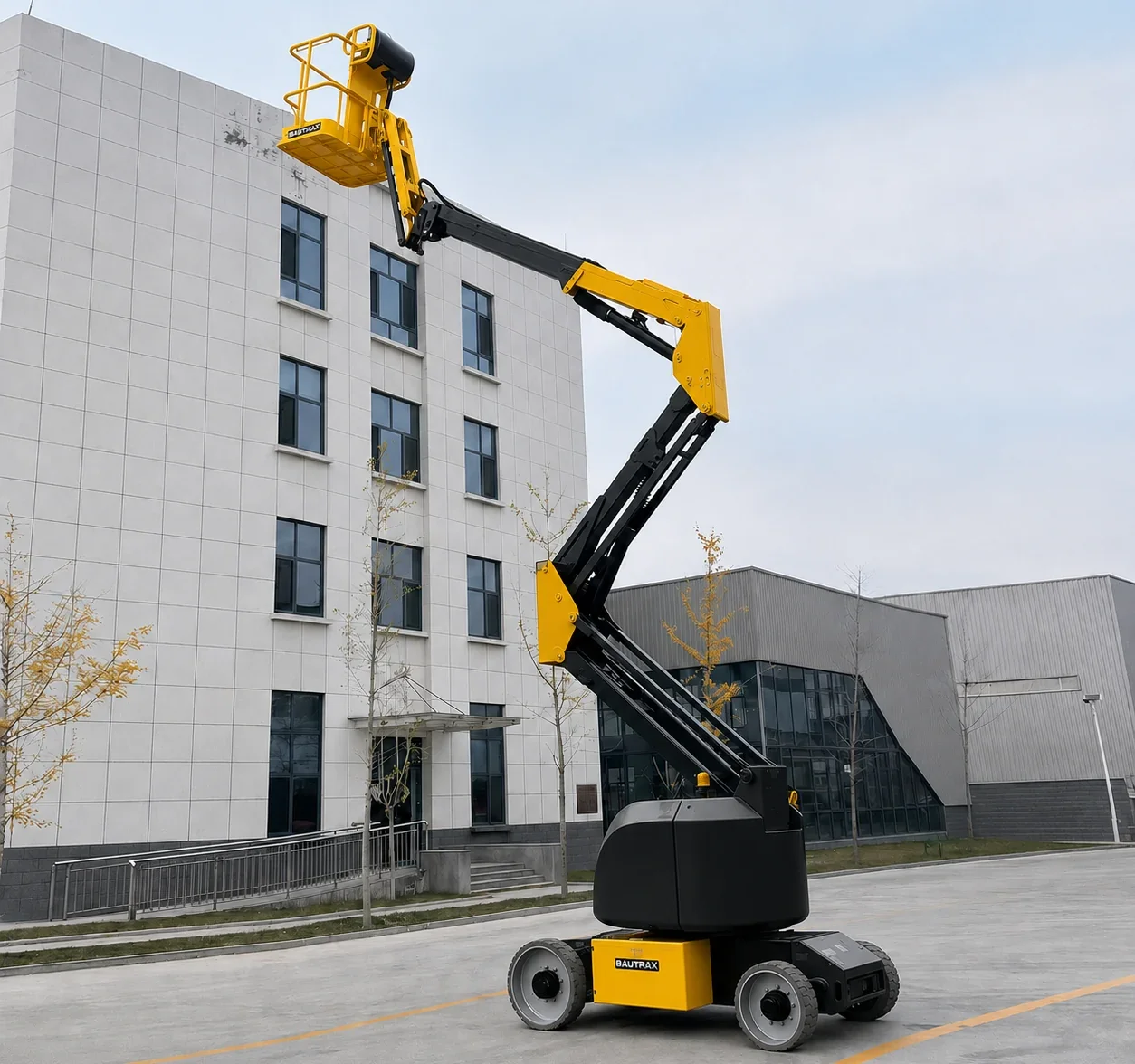

BAUTRAX AL1415 is a battery-electric articulating boom lift built for access where a straight boom cannot reach — over parapets, around structures and into spaces a telescopic machine has to approach head-on.

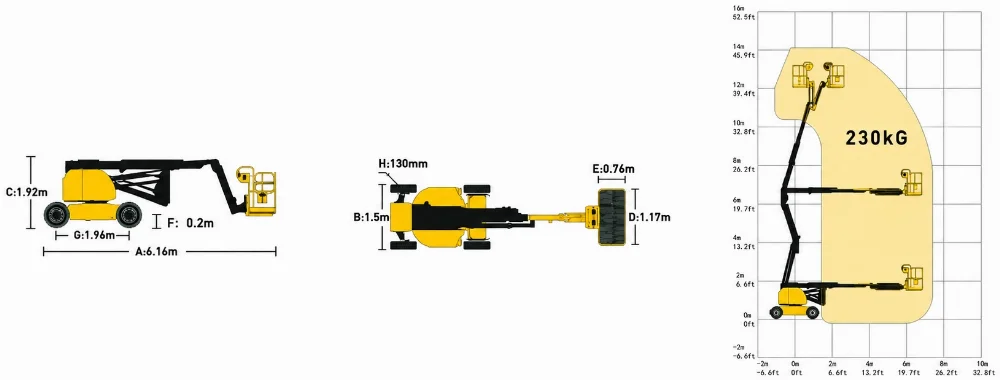

Working height is 14.15 m, platform height 12.15 m, with 6.83 m of horizontal reach and 6.54 m of up-and-over height. The platform carries 230 kg on a 1.17 × 0.76 m deck and rotates ±85°, while the turret turns 355° and the jib swings ±80° vertically.
Power is a 48 V / 310 Ah battery pack driving a 3.3 kW travel motor and a 5 kW lift motor, so the machine produces no exhaust and little noise — it works indoors and on finished surfaces as readily as on a yard. Stowed it measures 6.16 × 1.5 × 1.92 m with a 130 mm tail swing, climbs 30% and travels at 4.8 km/h.
Standard equipment includes proportional controls, automatic platform levelling, an emergency electric pump, on-board diagnostics, load protection and an anti-crush device.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 7100 kg |
| Max. Working Height (In/Out) | 14.15 m |
| Max. Platform Height (In/Out) | 12.15 m |
| Platform Length | 1.17 m |
| Platform Width | 0.76 m |
| Overall Width | 1.5 m |
| Wheel Base | 1960 mm |
| Ground Clearance (Stowed) | 200 mm |
| Platform Capacity | 230 kg |
| Turning Radius (Inside) | 0.8 m inside / 2.3 m outside |
| Gradeability | 30% |
| Batteries (V/Ah) | 48 V / 310 Ah |
| Travel Speed | 4.8 km/h |
| Hydraulic Oil Tank | 19 L |
| System Voltage | 48 V |
| Overall Dimensions (L×W×H) | 6160 × 1500 × 1920 mm |
| Power Type | Electric (battery) |
| Rotation / Tilt | Turret 355°, platform ±85°, jib ±80° |
| Control Type | Proportional controls |
| Drive Motor | 3.3 kW |
| Lift Motor | 5 kW |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Working Height | 14.15 m |
| Working Reach | 6.83 m |
| Charging | 100–240 VAC / 13.5 A |
| Parameter | Value |
|---|---|
| Weight | 7100 kg |
| Max. Working Height (In/Out) | 14.15 m |
| Max. Platform Height (In/Out) | 12.15 m |
| Platform Length | 1.17 m |
| Platform Width | 0.76 m |
| Overall Width | 1.5 m |
| Wheel Base | 1960 mm |
| Ground Clearance (Stowed) | 200 mm |
| Platform Capacity | 230 kg |
| Turning Radius (Inside) | 0.8 m inside / 2.3 m outside |
| Parameter | Value |
|---|---|
| Gradeability | 30% |
| Batteries (V/Ah) | 48 V / 310 Ah |
| Travel Speed | 4.8 km/h |
| Hydraulic Oil Tank | 19 L |
| System Voltage | 48 V |
| Overall Dimensions (L×W×H) | 6160 × 1500 × 1920 mm |
| Power Type | Electric (battery) |
| Rotation / Tilt | Turret 355°, platform ±85°, jib ±80° |
| Control Type | Proportional controls |
| Drive Motor | 3.3 kW |
| Parameter | Value |
|---|---|
| Lift Motor | 5 kW |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Working Height | 14.15 m |
| Working Reach | 6.83 m |
| Charging | 100–240 VAC / 13.5 A |
