Description

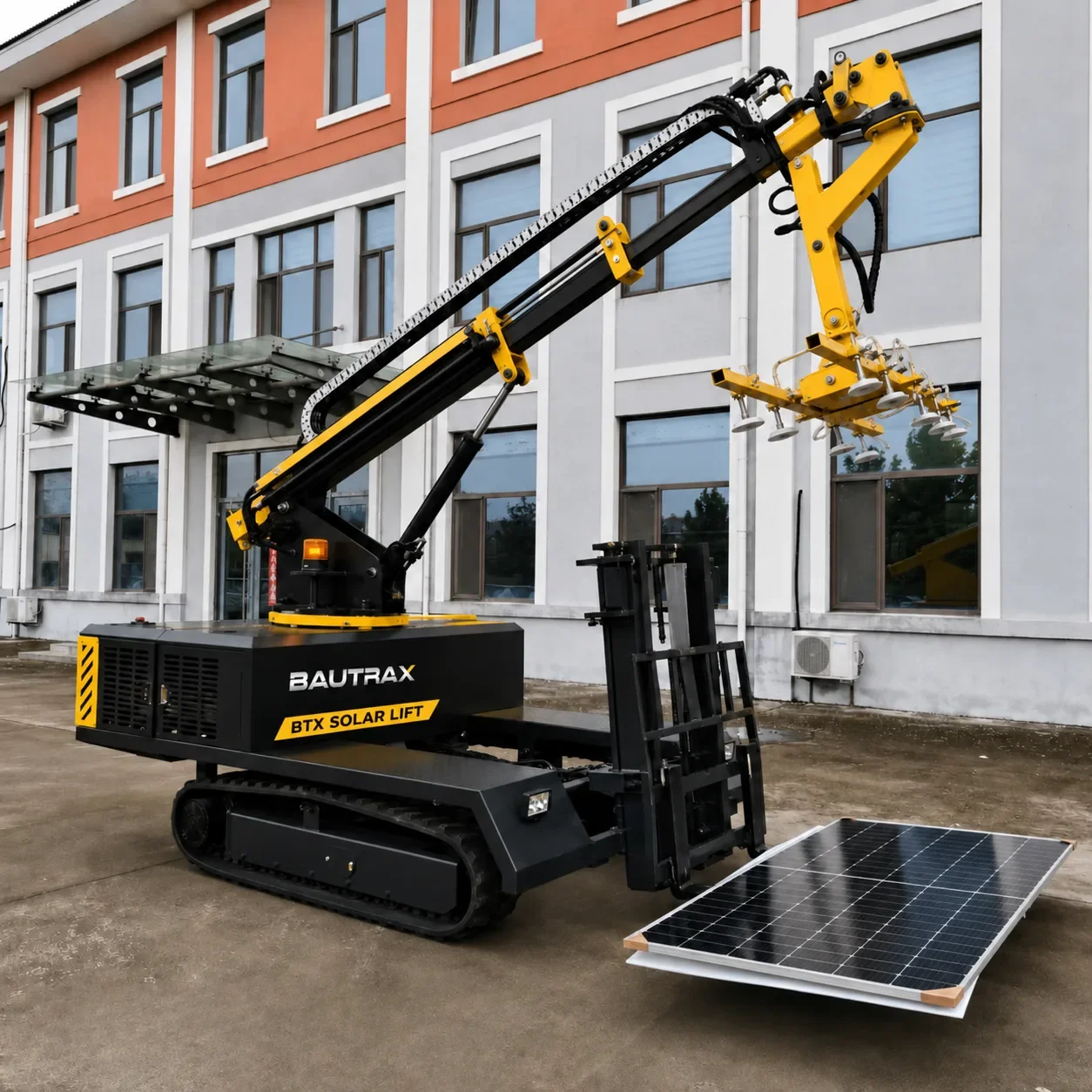

BAUTRAX SOLAR LIFT is a tracked solar-panel installation machine with a telescopic boom and vacuum gripper. The tracked undercarriage handles uneven and sloped ground, so it suits both ground-mounted solar farms and rooftop installations.

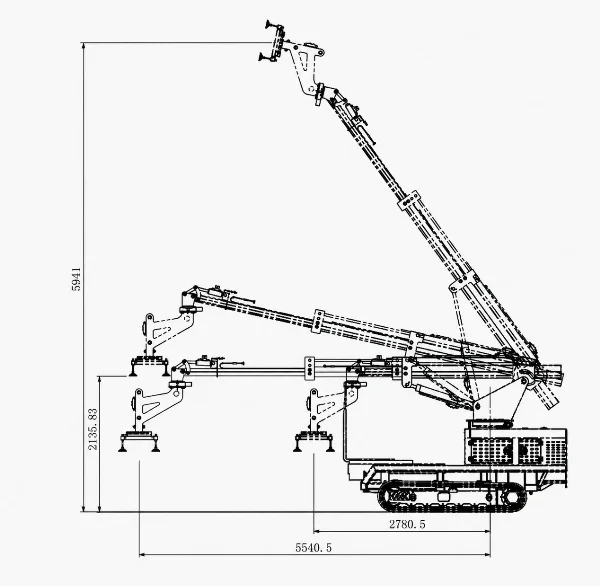

Fork capacity is 1500 kg at a working height of up to 7.39 m, with a maximum boom reach of 5.54 m. Power comes from a Changchai 490 diesel (2672 cc, 39 kW) with a 125 L tank.

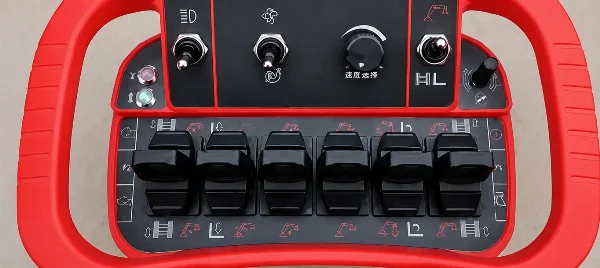

The machine is operated entirely by a shoulder-mounted wireless remote — travel, boom rotation and extension, and the vacuum grip are all controlled from a safe distance, with no cab and no seated operator.
Once the park is built, the BAUTRAX GPMBTX R1 keeps the grass under the panels down.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 3610 kg |
| Wheel Base | 1856 mm |
| Control | Wireless shoulder-mounted remote |
| Engine Model | Changchai 490 |
| Engine Power | 39 kW |
| Displacement | 2672 cc |
| Travel Speed | 3 km/h |
| Fuel Tank | 125 L |
| Track Width | 320 mm |
| Overall Dimensions (L×W×H) | 3950 × 2180 × 2650 mm |
| Ground Clearance | 200 mm |
| Rated Load Capacity | 1500 kg |
| Boom Length / Time | 2.76 m extension |
| Warranty | 2 years / 2000 motor hours |
| Working Height | 7.39 m |
| Working Reach | 5.54 m |
| Parameter | Value |
|---|---|
| Weight | 3610 kg |
| Wheel Base | 1856 mm |
| Control | Wireless shoulder-mounted remote |
| Engine Model | Changchai 490 |
| Engine Power | 39 kW |
| Displacement | 2672 cc |
| Travel Speed | 3 km/h |
| Fuel Tank | 125 L |
| Track Width | 320 mm |
| Overall Dimensions (L×W×H) | 3950 × 2180 × 2650 mm |
| Parameter | Value |
|---|---|
| Ground Clearance | 200 mm |
| Rated Load Capacity | 1500 kg |
| Boom Length / Time | 2.76 m extension |
| Warranty | 2 years / 2000 motor hours |
| Working Height | 7.39 m |
| Working Reach | 5.54 m |
