Description

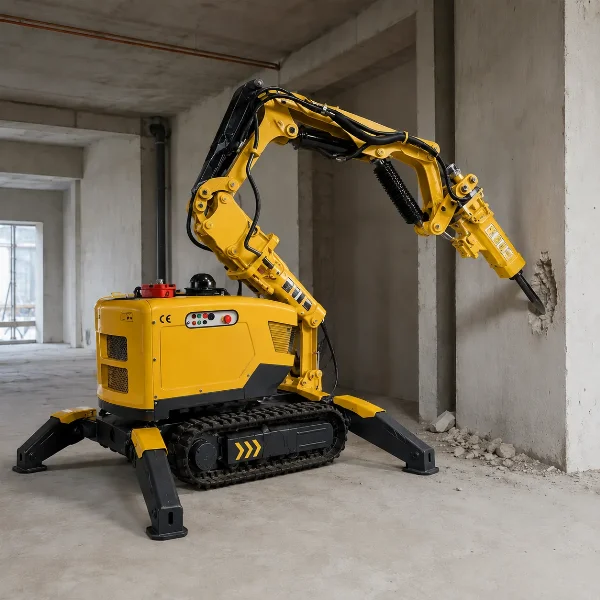

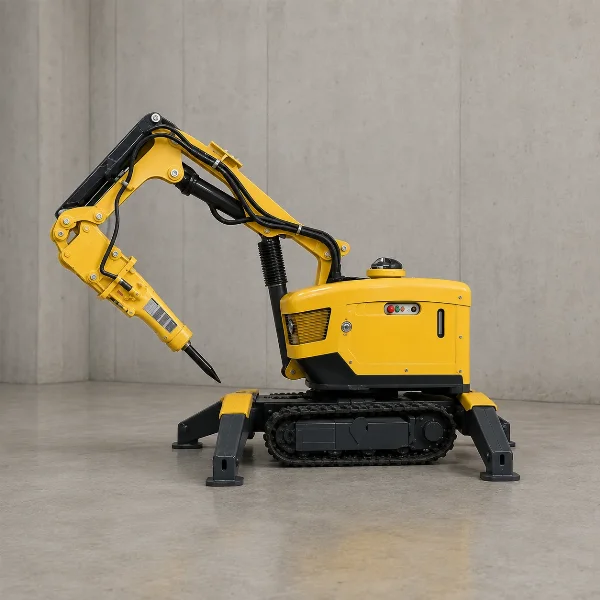

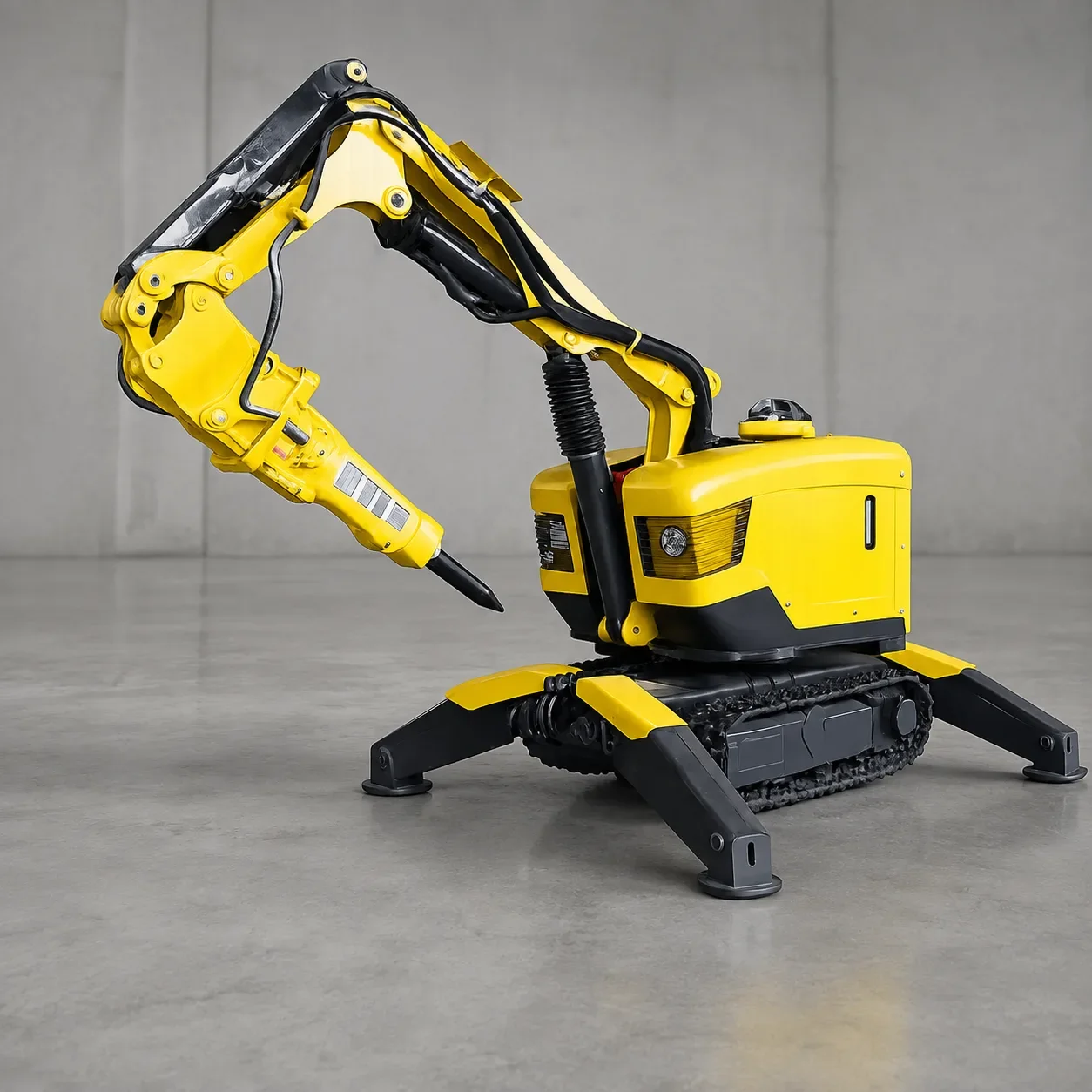

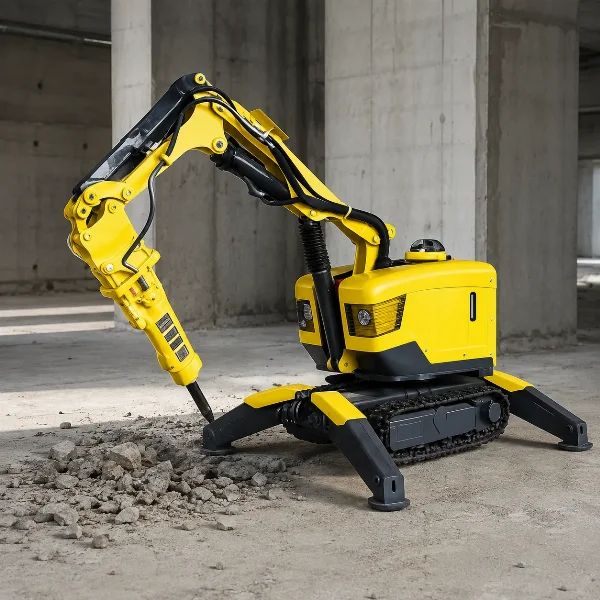

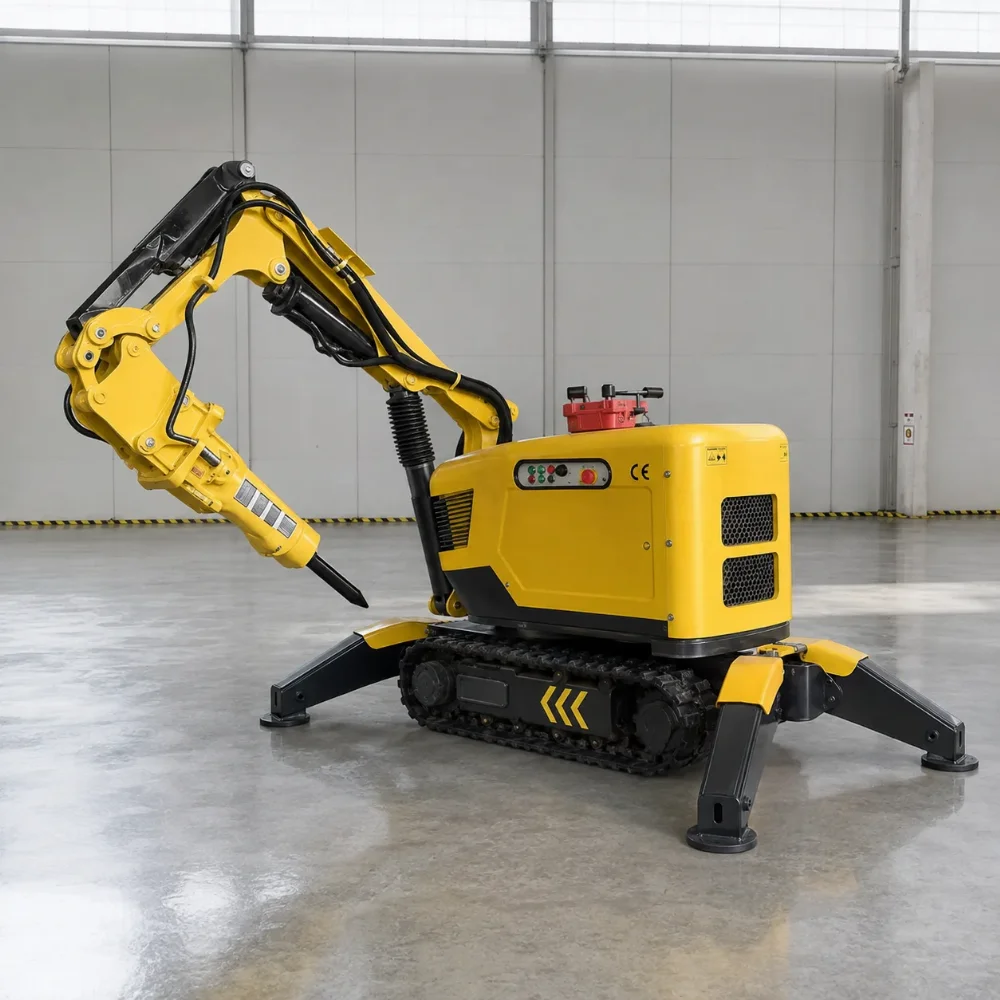

BAUTRAX BDR300 is a remote-controlled demolition robot in the 5-tonne class — the machine for structural concrete, foundations and heavy industrial demolition, where the 2.5-tonne BDR170 runs out of reach.
Working height is 6604 mm, with 6194 mm of reach and 3451 mm of working depth. It runs on 300 mm tracks, climbs 30°, and the hydraulics deliver 0–110 L/min at 25 MPa. Everything is driven from a portable remote with a range of up to 300 m.
Configurations: the BDR300 is available with a diesel engine and as an electric version. Exact values depend on the drive you choose — confirm when you enquire.
Too big for the job? The BAUTRAX BDR170 is the 2.5-tonne machine in the same family, for tighter indoor work.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 4960 kg |
| Gradeability | 30° |
| Travel Speed | 3.6 km/h |
| Swing Speed | 0–6.8 r/min |
| Hydraulic Flow | 0–110 L/min |
| Track Width | 300 mm |
| Overall Dimensions (L×W×H) | 3891 × 1200 × 1882 mm |
| Hydraulic Pressure | 25 / 20 MPa |
| Power Type | Diesel or electric |
| Control Type | Portable remote control |
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Working Height | 6604 mm |
| Working Reach | 6194 mm |
| Working Depth | 3451 mm |
| Remote Control Range | 300 m |
| Parameter | Value |
|---|---|
| Weight | 4960 kg |
| Gradeability | 30° |
| Travel Speed | 3.6 km/h |
| Swing Speed | 0–6.8 r/min |
| Hydraulic Flow | 0–110 L/min |
| Track Width | 300 mm |
| Overall Dimensions (L×W×H) | 3891 × 1200 × 1882 mm |
| Hydraulic Pressure | 25 / 20 MPa |
| Power Type | Diesel or electric |
| Control Type | Portable remote control |
| Parameter | Value |
|---|---|
| Color | yellow/black |
| Warranty | 2 years / 2000 motor hours |
| Working Height | 6604 mm |
| Working Reach | 6194 mm |
| Working Depth | 3451 mm |
| Remote Control Range | 300 m |
