Description

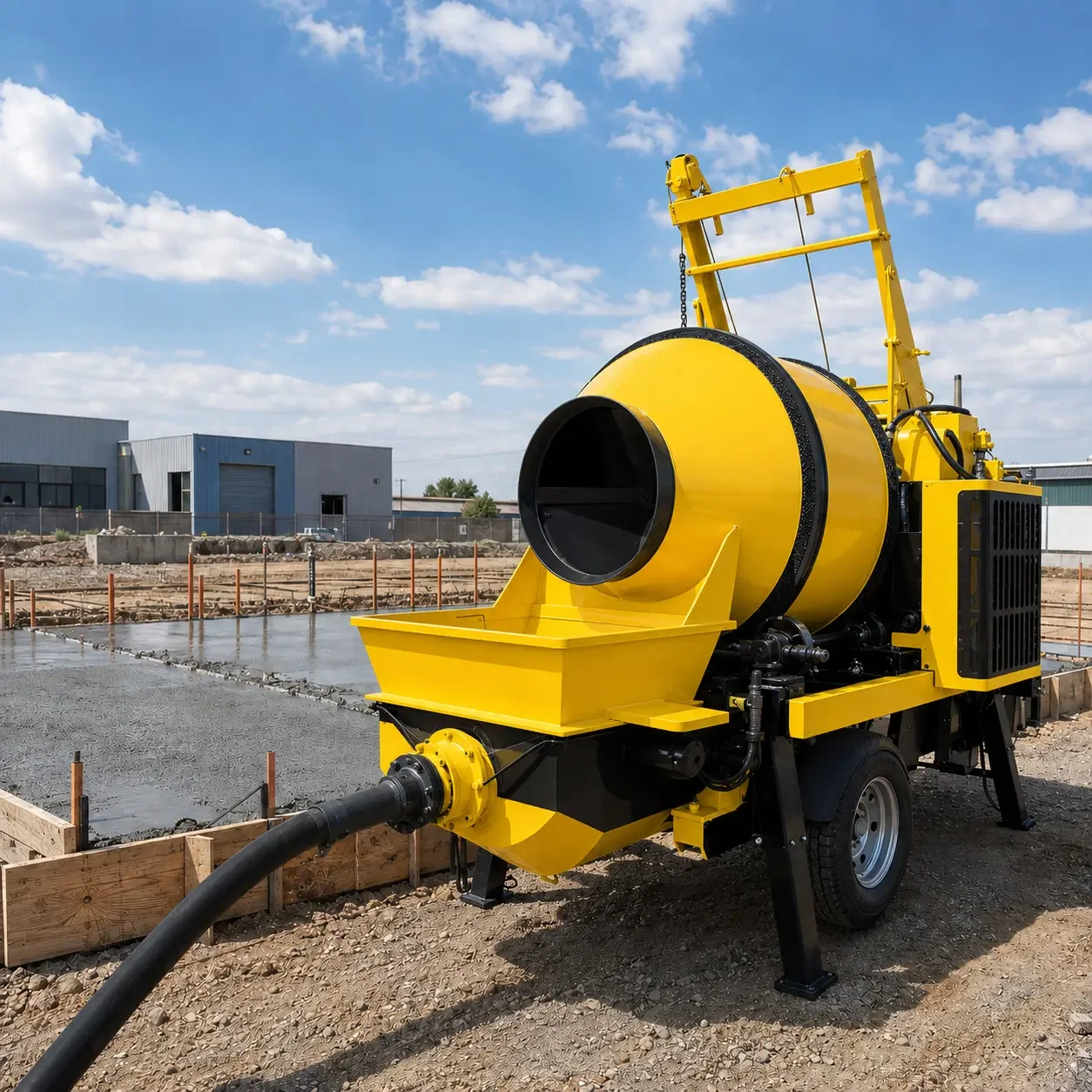

BAUTRAX HBT30 is a mobile diesel concrete mixer with an integrated pump for mixing and pumping concrete on construction sites. It delivers a theoretical output of 30 m³/h at up to 10 MPa pumping pressure, with an S-valve and a Ф140 × 1000 mm concrete cylinder.
The Weifang ZH4105ZLD 66 kW diesel engine drives a fully hydraulic system with auto-lubrication, automatic mixing reverse and wireless remote control. Concrete can be conveyed up to 100 m vertically / 120 m horizontally; aggregate up to 25–30 mm. Supplied with a full pipe, elbow and clamp kit. Brand-new machine with 2-year / 2000-hour warranty.
For mortar and screed rather than structural concrete, see the BAUTRAX MPBX740D.
Technical specifications
| Parameter | Value |
|---|---|
| Weight | 2300 kg |
| Engine Brand | Weifang |
| Engine Model | ZH4105ZLD |
| Engine Power | 66 kW |
| Overall Dimensions (L×W×H) | 4200 × 2000 × 2250 mm |
| Power Type | Diesel |
| Control Type | Wireless remote control |
| Warranty | 2 years / 2000 motor hours |
| Output | 30 m³/h |
| Pumping Pressure | 10 MPa |
| Conveying Distance | 100 m vertical / 120 m horizontal |
| Mixing Capacity | hopper 0.56 m³ / 350 L |
| Parameter | Value |
|---|---|
| Weight | 2300 kg |
| Engine Brand | Weifang |
| Engine Model | ZH4105ZLD |
| Engine Power | 66 kW |
| Overall Dimensions (L×W×H) | 4200 × 2000 × 2250 mm |
| Power Type | Diesel |
| Control Type | Wireless remote control |
| Warranty | 2 years / 2000 motor hours |
| Output | 30 m³/h |
| Pumping Pressure | 10 MPa |
| Parameter | Value |
|---|---|
| Conveying Distance | 100 m vertical / 120 m horizontal |
| Mixing Capacity | hopper 0.56 m³ / 350 L |
